The airbrush is one of the most versatile and precise tools that an artist, modeler, or professional working with painting and fine detailing can have on their workbench. At first glance, its use may seem simple—just a tool that sprays a mixture of air and paint delicately over a surface. However, behind that apparent simplicity lies a set of components working in perfect harmony to achieve consistent, clean, and controlled results. That’s why understanding each of these parts isn’t a technical luxury but a necessity to take full advantage of the airbrush’s capabilities and extend its lifespan.
There are different types of airbrushes, each with important differences in how they are used. The most common are dual-action airbrushes, which allow you to independently control both airflow and paint flow with a single trigger, offering greater precision and versatility. We also find differences in how paint is fed: for example, gravity-feed models, with a top-mounted cup, are designed for fine detail work and ensure lower paint consumption, while siphon-feed models, which use bottom-mounted jars or cups, are better suited for applications that require covering large areas with higher volume. Likewise, within the airbrushing world, there are airbrushes designed specifically for extreme detail—such as those used in illustration or high-level modeling—and others aimed at general use, offering a balance between precision and capacity.

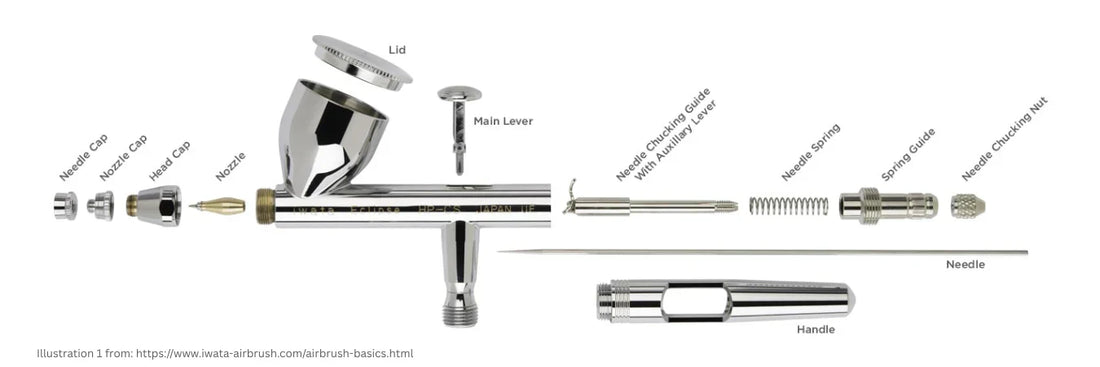

The goal of this article is to help you become familiar with each component of your airbrush, understand how it works, and discover why every part—from the needle down to the smallest seals—plays a crucial role in overall performance. Mastering your airbrush begins with knowing it from the inside out, and that is the foundation that will allow you to work with confidence and achieve increasingly professional results.
Airbrush Body and Air System
The airbrush body, also known simply as the body, is the central structure where most of the components are assembled. Its ergonomic design allows it to be held like a pen but inside lies a complex system that ensures both air and paint travel in a controlled manner from the reservoir to the nozzle. This metallic body not only provides structural support but also functions as the main channel for directing compressed air and paint.
One of the key components in this section is the air valve (see next image). Located at the bottom of the airbrush, this valve is responsible for allowing air to enter from the compressor. When the trigger is pressed, the air flows through the body toward the nozzle, generating the pressure needed to atomize the paint. This passage must remain completely airtight, as any leakage reduces power and negatively affects spray quality.
In this regard, the O-rings (see next image) play an important role. Although they are small and not very noticeable, they guarantee perfect sealing between different components. When an O-ring becomes worn or dries out, issues such as pressure loss, paint leaks, or irregular performance can appear, which may confuse the user. That’s why inspecting and replacing them periodically is just as important as keeping the needle and nozzle clean.
The body of the airbrush, together with its air system, forms the foundation upon which everything operates. Proper sealing and stable airflow are the first guarantees of achieving precise and uninterrupted work.
The Paint System: Cup, Lid, and Valves

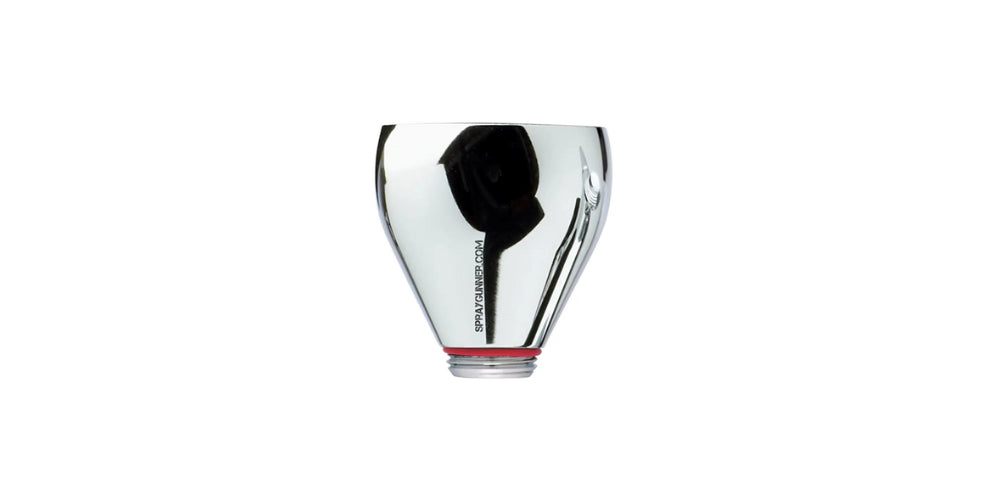

The paint system of an airbrush begins with the paint cup (see next image); available in different sizes. This component acts as the reservoir where paint is placed, ready to be atomized. Depending on the model, cup capacity can range from just a few milliliters—ideal for fine detail work such as miniatures or illustrations—to larger cups that allow you to cover broader surfaces in automotive airbrushing or mural projects. The choice of cup size affects not only the amount of uninterrupted work you experience, but also the balance and comfort of the airbrush in the hand.
Most of these cups include a lid (see next image), which serves a dual function: preventing accidental spills when tilting the airbrush and protecting the paint from external particles or premature drying. Although some users prefer to work without a lid during quick sessions for greater agility, in longer applications or when the airbrush is frequently moved, the lid becomes indispensable to maintain stable paint flow.
Another important aspect is the difference between gravity-feed and siphon-feed models. In gravity-feed airbrushes, paint flows down naturally from the top cup into the channel, making them easier to control at low pressure and highly precise. By contrast, siphon-feed systems use a valve and tubes to draw paint from a bottom-mounted jar or cup (see next image), allowing for larger volumes of paint but requiring higher air pressure.
In practice, choosing the right cup size and type depends on the project. For miniatures or fine effects, a small cup with a lid is sufficient, while for automotive or mural painting, a larger system that reduces the need for frequent refills is recommended.
The Trigger and Its Mechanism
The trigger is the part that has the most direct contact with the user and, therefore, defines the hands-on experience of controlling the airbrush. In models such as Iwata or Harder & Steenbeck (see next image), the trigger serves as the bridge between the artist’s hand and the internal mechanics of the airbrush. In dual-action systems, pressing down releases the airflow, while pulling back regulates the amount of paint, allowing for progressive and highly precise control.
The mechanism that supports the trigger relies on a return spring (see next image), which is responsible for returning the trigger to its initial position after each press. Although small, this spring is essential for smoothness and sensitivity of movement. A spring in good condition ensures that the trigger responds fluidly, preventing jumps or stiffness that could disrupt consistent lines.
Maintenance of this part is relatively simple but should not be neglected. It is important to keep it free of paint residue and dust, and to apply special lubricants for airbrushes to points of friction. This not only extends the life of the mechanism but also guarantees precise control of paint flow.
Some of the most common problems caused by deterioration of this part include a stiff trigger (generally due to lack of lubrication or accumulated residue) and loss of sensitivity, which can result from a worn spring or an internal misalignment. Addressing these issues in time prevents interruptions and ensures that the airbrush always responds with the expected smoothness.
The Needle
The needle is arguably the most delicate and important part of the entire airbrush. Its role is crucial: it regulates the flow of paint into the nozzle and determines precisely how much material is released with each stroke. When pulled back, the needle opens the channel for paint to flow; when pushed forward, it seals the passage completely. In this way, the needle acts as a gate that responds to the trigger’s movement and defines the fineness of the spray.
One of the most important variables of the needle is its thickness. Needles typically come in standard sizes such as 0.15 mm, 0.2 mm, 0.3 mm, and 0.5 mm. Finer sizes (0.15 and 0.2 mm) are designed for extreme detail work, such as precision illustrations, temporary tattoos, or advanced scale modeling. On the other hand, 0.3 mm needles strike a balance between detail and coverage, making them very versatile. Finally, 0.5 mm needles are intended for projects requiring broader coverage or for spraying thicker paints such as varnishes or primers.
However, the delicacy of this part makes it vulnerable. A simple bump can bend the tip, alter the spray pattern and produce irregular results. Harsh cleaning is another frequent cause of damage; forcing the needle with rods or improper tools can nick the surface and compromise the seal at the nozzle. Even small amounts of accumulated wear affect performance, reducing the airbrush’s ability to atomize consistently.
To protect it, it is always recommended to store the airbrush with the needle cap in place, handle the needle gently during disassembly, and use appropriate cleaning fluids. A clear sign of wear is when paint begins to spray unevenly, with spattering or side leaks at the nozzle. At that point, it should be replaced.
Though small and fragile, the needle is the heart of control in an airbrush—caring for it is essential to guarantee precision and quality in every project.
The Nozzle and the Front Assembly (Nozzle & Head System)
The nozzle is the point where the magic of atomization happens. In some airbrushes, such as those from Harder & Steenbeck, this area is made up of several parts that together form a modular system. The nozzle works alongside other components of the front assembly: the air cap, which directs air around the needle; the nozzle cap, which protects the nozzle; and the nozzle base, which secures the entire unit to the airbrush body. When assembled, these pieces determine how air and paint are mixed and projected as a fine spray (see next three images). It is important to clarify that these parts are not standardized across different brands—there are variations in the number and design of pieces, and in almost all cases they are unique to each airbrush and not interchangeable.
In general terms, atomization occurs when compressed air passes at high speed around the needle and nozzle, creating a vacuum that pulls the paint outward. The interaction between air and paint at this point defines the fineness of the line, the smoothness of gradients, and the ability to cover either small or large areas with precision. For this reason, the condition of the nozzle and the air cap is critical: even the slightest deformation, dirt, or damage will immediately affect spray quality.
You should also consider the difference between threaded nozzles and self-centering nozzles (see next image). Brands like Iwata use threaded nozzles, which are extremely precise but require careful tightening. In contrast, Harder & Steenbeck uses self-centering nozzles that fit into the air cap without threads, making assembly easier and reducing the risk of thread damage—though they remain delicate and must be handled with care.
The most frequent problems in this area include clogged nozzles, which interrupt paint flow; damaged threads, which cause leaks; and visible leaks, which affect atomization and force the user to increase air pressure to compensate. These issues are often the result of improper cleaning or overtightening parts.
For proper care, follow these maintenance tips: clean the nozzle only with suitable cleaning fluids, avoid using hard rods or needles that may deform it, and never force it during reinstallation. A gentle adjustment until it sits properly is enough—excessive pressure is often more harmful than helpful. Keeping the nozzle and front assembly in good condition ensures your airbrush performs with the same precision as the day it was new.
Back Handle & Needle Chuck Mechanism
At the rear of the airbrush lies the back handle and needle chuck mechanism, made up of several parts that, although hidden during use, play an important role in needle control. These include the needle chucking guide, the needle spring, the chuck nut, and the back handle itself (see next image).
The main function of this mechanism is to secure the needle and regulate its movement. When the user pulls back the trigger, the spring tension and chuck system allow the needle to move smoothly and then return to its forward position once the trigger is released. Each of these components contributes to precise and consistent paint flow regulation.
Some airbrushes also feature a travel limiter adjustment in this rear section, which restricts how far the needle can retract. This is especially useful for artists who want uniformity in repetitive lines or who wish to avoid accidental overspray during detail work.
Identifying problems in this area is relatively simple. If the trigger feels loose, the needle does not return firmly, or irregular movement is noticed, the cause is likely a worn spring, a loose chuck nut, or dirt buildup inside. Keeping this section clean, lightly lubricated, and properly tightened ensures the airbrush always responds with the precision expected.
Seals and O-rings
Seals and O-rings are tiny components but vital to the proper functioning of the airbrush. Depending on the model and brand, they may be distributed in different areas of the body. Although they often go unnoticed, their role is to ensure that both air and paint flow through the channels without leaks, keeping pressure and flow stable.
Over time, these rubber or Teflon elements can dry out, deform, or crack—especially when exposed to aggressive solvents or if the airbrush is stored for long periods without maintenance. When this happens, air leaks, pressure loss, unexpected paint drips, or even irregular trigger performance may occur.
For this reason, it is advisable to periodically inspect O-rings and replace them at the first signs of wear. Manufacturers usually offer original replacement kits, which guarantee compatibility and a perfect seal. Generic replacements may seem like a quick fix, but they often compromise the precision of the fit and shorten the airbrush’s lifespan.
In short, although small, O-rings are the silent guardians of airbrush performance, and keeping them in good condition is key to working without interruptions.
Brand Variations (H&S vs Iwata... For example...)
Although all airbrushes share a similar basic structure, each brand introduces specific features that distinguish them in design, maintenance, and operation. Two representative examples are Iwata and Harder & Steenbeck (H&S).
Iwata airbrushes are known for their precision and the extremely fine tolerances of their parts. Each component fits with very tight precision, ensuring consistent, high-quality spraying. However, this also means that disassembly and part replacement require more care, as the threaded nozzles are delicate and very sensitive to excessive pressure.
On the other hand, H&S focuses on modularity. Their self-centering nozzles eliminate the need for threads, making assembly easier and reducing the risk of damage during cleaning. They also allow the use of interchangeable paint cups in different sizes, offering flexibility depending on the type of work. The ease of replacing needles and nozzles makes H&S airbrushes a very practical choice for users who value quick maintenance and adaptability.
In summary, Iwata offers maximum precision with a tighter, more maintenance-sensitive design, while H&S provides flexibility and ease of use. Knowing these differences helps users choose the model that best suits their style and needs.
Maintenance and Care Tips
An airbrush is a precision tool, and as such, it requires consistent care to deliver peak performance for years. The first rule is to perform a quick cleaning after every use. This process, known as flushing, involves running thinner or a proper cleaning solution through the system until no traces of paint remain in the cup or nozzle. This simple habit prevents dried paint from blocking the internal channels.
From time to time, depending on frequency of use and the type of paint applied, a deep cleaning is necessary. For this, carefully disassemble the airbrush without forcing any parts. The needle should be removed gently, and the nozzle cleaned with specific fluids and soft brushes—never with metal objects that can scratch it. A common mistake is trying to unclog the nozzle with pins or needles, which almost always ends up deforming it.
Another key point is the light lubrication of moving parts, especially the trigger and the rear needle mechanism. For this, it is best to use lubricants designed specifically for airbrushes, as they won’t damage the O-rings or leave residues that could mix with the paint. Lubrication improves trigger smoothness and prevents premature wear.
It is also important to remember that nozzles should not be overtightened. A gentle adjustment until they are sealed is enough—extra force only increases the risk of damaging the threads or deforming the part.
Finally, whenever the airbrush is not in use, it should be stored with the needle cap in place. This simple precaution prevents the needle from bending due to accidental impacts, which would immediately affect spray quality.
Following these practices makes maintenance a natural part of the workflow. A clean, lubricated, and protected airbrush responds better, maintains precision, and allows you to focus on what really matters: enjoying the creative process.
FAQ – Frequently Asked Questions
How often should I replace the needle or nozzle?
It depends on use, pressure applied, and care. With consistent cleaning, these parts can last a long time. If you notice spattering, uneven spray, or side leaks, they are likely worn and should be replaced.
How do I know if my airbrush has an air leak?
The most obvious symptom is a constant hissing sound even without pressing the trigger, loss of power, or bubbles in the paint cup. This is usually caused by a damaged seal or a poorly seated nozzle.
Can I use parts from different brands or models?
It is not recommended. Although some parts may look similar, each manufacturer designs to very specific tolerances. Original replacements ensure proper sealing and stable performance.
What should I do if I drop my airbrush?
Check the needle first, as it bends easily. Also inspect the nozzle, which can deform from impacts. If the drop was severe, disassemble and check the body and seals for hidden damage.
How do I prevent paint from clogging?
Always use the correct dilution and clean after each session. Acrylics in particular benefit from adding flow improvers to prevent fast drying at the nozzle.
What is the ideal air pressure?
It varies depending on paint and application: 15–20 psi for fine details, 20–25 psi for general spraying, and up to 30–35 psi for varnishes or thicker paints. Adjusting pressure is key to avoiding flow issues.
Can I use any type of paint in an airbrush?
In principle, yes, as long as it is properly thinned. However, some airbrushes perform better with acrylics and lacquers. Paints with very large pigments, such as some artisanal mixes, can clog the system.
How should I properly clean my airbrush?
After each use, flush with the appropriate solvent (water for acrylics, thinner for lacquers or enamels). Periodically perform a deep cleaning by disassembling parts carefully without forcing them.
What lubricant should I use?
Only lubricants specifically designed for airbrushes (INSERT STORE LINK HERE AND THEN DELETE THIS NOTE), usually silicone or Teflon-based. Avoid household oils or sewing machine oil, as they can damage O-rings or contaminate the paint.
Can an airbrush be used for food or makeup?
Yes, but it must be dedicated exclusively to that purpose. Never use an airbrush that has previously sprayed paints, as chemical residues cannot be completely removed.
Why does my airbrush spit large drops instead of a fine mist?
This may indicate a clogged nozzle, damaged needle, or air pressure that is too low. It can also happen if the paint is too thick.
Is it normal to see bubbles in the paint cup?
No. This indicates air is flowing back into the cup, usually caused by a loose nozzle or a faulty seal.
What should I do if my airbrush loses spraying power?
First, check for air leaks and ensure the compressor is providing stable pressure. If everything is in order, inspect the nozzle and needle—any damage or paint buildup will reduce performance.
Should I fully disassemble my airbrush after each use?
Not necessary. Full disassembly should only be done during deep cleanings. Excessive handling of parts increases the risk of wear or damage.
What is the lifespan of an airbrush?
With proper maintenance, it can last for decades. Typically, only consumables like needles, nozzles, and seals need replacing.
How should I properly store my airbrush?
Always with the needle cap on, stored horizontally on a holder, or ideally in a case to protect it from dust and impacts.
What should I do if the trigger becomes stiff?
This is usually due to lack of lubrication in the rear mechanism or residue buildup. A cleaning and light lubrication usually solves it.
How do I know which needle size is right for me?
It depends on your work: 0.15–0.2 mm for fine detail, 0.3 mm for general use, and 0.5 mm for varnishes or large surfaces.
Final Thoughts
Every part of an airbrush, from the needle to the nozzle and even the smallest seals, plays a specific role that, once understood, allows you to prevent problems, maintain precision, and enjoy a smoother user experience.
An airbrush is not just a tool, but a precision instrument that reflects the care and attention of the artist. Keeping it clean, lubricated, and protected ensures it is always ready to accompany you in your creative process. In the end, a well-cared-for airbrush is a lifelong ally in modeling and art.
