Anest Iwata Automotive Coating Equipment

GENERAL INFORMATION

ICONS EXPLAINED

HOW TO READ CHARTS

NOZZLE CONVERSIONS

MM	INCH
0.4	0.016
0.6	0.024
0.8	0.031
1.0	0.039
1.1	0.043
1.2	0.047

MM	INCH
1.3	0.051
1.4	0.055
1.5	0.059
1.6	0.063
1.7	0.067
1.8	0.071

MM	INCH
1.9	0.075
2.0	0.079
2.5	0.098
3.0	0.12
3.5	0.14

FAN PATTERN CONVERSIONS

MM	INCH
0	0
10	0.3937
20	0.7874
30	1.1811
40	1.5748
50	1.9685
60	2.3622
70	2.7559
80	3.1496
90	3.5433
100	3.937
110	4.3307
120	4.7244
130	5.1181
140	5.5118
150	5.9055
160	6.2992
170	6.6929
180	7.0866
190	7.4803
200	7.874

MM	INCH
210	8.2677
220	8.6614
230	9.0551
240	9.4488
250	9.8425
260	10.236
270	10.63
280	11.024
290	11.417
300	11.811
310	12.205
320	12.598
330	12.992
340	13.386
350	13.78
360	14.173
370	14.567
380	14.961
390	15.354
400	15.748
410	16.142

MM	INCH
420	16.535
430	16.929
440	17.323
450	17.717
460	18.11
470	18.504
480	18.898
490	19.291
500	19.685
510	20.079
520	20.472
530	20.866
540	21.26
550	21.654
560	22.047
570	22.441
580	22.835
590	23.228
600	23.622
610	24.016
620	24.409

PROVEN SPLIT NOZZLE TECHNOLOGY

SAVE TIME WITH LESS REWORK

Split Nozzle Technology evenly distributes droplets for a uniform flat finish requiring less polishing to speed up production.

SAVE MATERIALS WITH LESS OVERSPRAY

Split Nozzle Technology creates our unique ANEST IWATA Split Nozzle Fan Pattern with larger core application point resulting in better transfer efficiency saving you material.

SAVE ENERGY WITH LESS AIR CONSUMPTION

Spray guns with Split Nozzle Technology spray at a low psi for lower compressor cycle times and electrical savings.

PROVEN SPLIT NOZZLE DUAL-ATOMIZATION FOR A UNIFORM FLAT FINISH

MANUAL HVLP / COMPLIANT SPRAY GUNS

W-400-LV-WBX COMPLIANT GRAVITY

North American Exclusive

FEATURES

Compliant spray gun that meets EPA NESHAP 40 CFR, Part 63 Subpart 6H
Proven Split Nozzle™ Technology for increased material savings
Tulip inspired spray pattern
Ideal for general purpose use
Minimal wear parts for easy maintenance

TECHNICAL
W-400-LV-12WBX	1.2	W400 LVWBX (RED)	1.4 / 20	100	10.5	260
W-400-LV-13WBX	1.3			140		280
W-400-LV-14WBX	1.4			155		300
W-400-LV-15WBX	1.5			165		305
W-400-LV-16WBX	1.6			185		315
W-400-LV-18WBX	1.8			235		335

• Air Nipple: G1/4" • Fluid Nipple: M16 X 1.5m

Red air cap marked max 20 psi /W400LVWBX indicates compliant model specifically intended for use in North America. No other model marked with “WBX” or marketed under the WBX Series has been approved for use in the United States by any environmental agency or governing body. Use of any non-compliant spray equipment in a regulated area can lead to costly fines and additional penalties for the individual user and their employer.

WBX Spray Gun Kit Blue Edition Part #9278

Blue Kit Includes: W-400-LV-WBX 1.3 Gravity Compliant Spray Gun, 1.5 Nozzle (use with 1.3 needle), 1.2 Nozzle Needle Set, 700 ml Aluminum Gravity Cup, Air Regulator, Spray Gun Lubricant, Brush, Wrench

WBX Spray Gun Kit Red Edition Part #9279

Red Kit Includes: W-400-LV-WBX 1.8 Gravity Compliant Spray Gun, 1.5 Nozzle Needle Set, 1.3 Nozzle Needle Set, 700 ml Aluminum Gravity Cup, Air Regulator, Spray Gun Lubricant, Brush, Wrench

ORDER INFORMATION - W-400-LV-WBX W/ REGULATOR

	ø 1.2	ø 1.3	ø 1.4	ø 1.5	ø 1.6	ø 1.8
GRAVITY SPRAY GUN	2112	2113	2114	2115	2116	2118
NOZZLE + NEEDLE SET	93627610	93634610	93628610	93014560	93622620	93635620
AIR CAP SET	93549999

SPARE PARTS

Ref.	Code	Description	Spec
1		AIR CAP SET
2		NOZZLE + NEEDLE SET
3-1	93660300	AIR NIPPLE	1/4"
3-2	93650531	FLUID NIPPLE	M16×1.5
4	93842601	PATTERN ADJ. SET
5	93845330	AIR VALVE SEAT SET
5-1	96638008	O RING
6	93591530	AIR VALVE
7	93719530	AIR VALVE SPRING
8	93844532	FLUID ADJUST GUIDE SET
9	93593530	FLUID NEEDLE SPRING
10	93594532	FLUID ADJUST KNOB
11	93935430	AIR VALVE SHAFT
12	93845531	AIR ADJUST SET
13	93667360	TRIGGER STUD
14	93517600	TRIGGER
15	93912030	STOPPER	(2 PCS./1PK.)
16	93765610	CARTRIDGE PACKING
17	93515500	FILTER	60 MESH

ACCESSORIES

Ref.	Code	Description
	93708240	AIR CAP PACKING (WHITE)
	93512600	AIR CAP PACKING (BLACK)
	2950	MK5 MAINTENANCE KIT
	5650	REPAIR SERVICE KIT (includes: 4, 7-1, 9, 11, 15, 17)

LPH-300-LV HVLP GRAVITY

LPH-300-LV

FEATURES

HVLP spray gun with low operating air pressure
Proven Split Nozzle™ Technology for increased material savings
Rounded pattern produces low overspray
Extremely low air supply pressure, only 14.5 PSI
Very low air consumption
Pleasant lightweight handling
Finer atomization is suitable for wet on wet topcoat (1.4/1.6 mm)
Simple operation of the control knobs for both right and left handers
Conical seal nozzle, minimum wear parts
Quality surface for an easy cleaning
Easy maintenance
Recommended for UV coatings

TECHNICAL
LPH-300-124LV	1.2	LV4	1.3 / 18	70	8.5	210
LPH-300-134LV	1.3			80		230
LPH-300-144LV	1.4			90		250
LPH-300-164LV	1.6			110		230
LPH-300-184LV	1.8			130		230
LPH-300-204LV	2.0			150		230

• Air Nipple: G1/4" • Fluid Nipple: G1/4"

ORDER INFORMATION - LPH-300-LV

	ø 1.2	ø 1.3	ø 1.4	ø 1.6	ø 1.8	ø 2.0
GRAVITY SPRAY GUN LPH-300-LV	3940	3955	3945	3950	3960	3965
GRAVITY SPRAY GUN + PCG4D2 – 400ML	3941	3956	3946	3951	3961	3966
GRAVITY SPRAY GUN + PCG600P-2 – 600ML	3943	3958	3948	3953	3963	3968
GRAVITY SPRAY GUN + PCG7D2 – 700ML	3942	3957	3947	3952	3962	3967
NOZZLE + NEEDLE SET	93867600	93623600	93862600	93869600	93871600	93621600
AIR CAP SET			93875602

SPARE PARTS

Ref.	Code	Description	Qty.
1	93875602	AIR CAP SET
2-1 + 2-2		NOZZLE + NEEDLE SET
5-1	93660300	AIR NIPPLE
5-2	93575620	FLUID NIPPLE
6	93577620	PATTERN ADJ. SET
6-1		STOPPER	Sold as Ref. 6
6-2		WASHER	Sold as Ref. 6
6-3		BACK RING	Sold as Ref. 6
7	93845330	AIR VALVE SEAT SET
7-1	96638008	O RING
8	93591530	AIR VALVE
9	93719530	AIR VALVE SPRING
10	93844532	FLUID ADJ. GUIDE SET
11	93593530	FLUID NEEDLE SPRING
12	93594532	FLUID ADJ. KNOB
13	93935430	AIR VALVE SHAFT
14	93845531	AIR ADJ. SET
15	93667360	TRIGGER STUD
16	93597530	TRIGGER
17	93912030	E STOPPER	2 pcs./1 pk.
20	93765610	NEEDLE PACKING CARTRIDGE

ACCESSORIES

Ref.	Code	Description
	93576530	AIR CAP PACKING (WHITE)
	93608320	AIR CAP PACKING (BLACK)
	2950	MK5 MAINTENANCE KIT
	5650	REPAIR SERVICE KIT (includes: 7-1, 9, 11, 15, 17, 20)
	2985B	TEST CAP GAUGE SET “LPH100-LV4”

LS-400 SERIES 2 BASE HVLP GRAVITY

FEATURES

HVLP spray gun with low operating air pressure
Exclusive Split Nozzle™ 2.0 Technology for repeatable results and unmatched performance
Ideal for a wide range of solvent and waterborne base coat applications
Nozzle configurations to optimize your paint and climate conditions
Optional DPG1 high-performance digital pressure regulator allows air adjustment convenience without disrupting the spray gun ergonomics


TECHNICAL
ET: FOR STANDARD CLIMATE APPLICATION
LS-400-SR2D-1206	Y	1.2 ET	CONTROL	LS-400 -06	1.8/26		14.1	230 / 9.1
LS-400-SR2-1206		1.2 ET	CONTROL			165		230 / 9.1
LS-400-SR2D-1306	Y	1.3 ET	STANDARD					235 / 9.3
LS-400-SR2-1306		1.3 ET	STANDARD			175		235 / 9.3
LS-400-SR2D-1406	Y	1.4 ET	SPEED	LS-400 -06	1.8/26		14.1	240 / 9.4
LS-400-SR2-1406		1.4 ET	SPEED			185		240 / 9.4
LS-400-SR2D-1506	Y	1.5 ET	HIGH SPEED					245 / 9.6
LS-400-SR2-1506		1.5 ET	HIGH SPEED			190		245 / 9.6
ETS: FOR HOT/DRY CLIMATE APPLICATION
LS-400-SR2D-12S06	Y	1.2 ETS	CONTROL	LS-400 -06	1.8/26		14.8	200 / 7.9
LS-400-SR2-12S06		1.2 ETS	CONTROL			160		200 / 7.9
LS-400-SR2D-13S06	Y	1.3 ETS	STANDARD					205 / 8.1
LS-400-SR2-13S06		1.3 ETS	STANDARD			170		205 / 8.1
LS-400-SR2D-14S06	Y	1.4 ETS	SPEED	LS-400 -06	1.8/26		14.8	210 / 8.3
LS-400-SR2-14S06		1.4 ETS	SPEED			185		210 / 8.3
LS-400-SR2D-15S06	Y	1.5 ETS	HIGH SPEED					215 / 8.5
LS-400-SR2-15S06		1.5 ETS	HIGH SPEED			195		215 / 8.5

ORDER INFORMATION

	1.2 ET	1.3 ET	1.4 ET	1.5 ET	1.2 ETS	1.3 ETS	1.4 ETS	1.5 ETS
ECO SET WITH DIGITAL GRAVITY SPRAY GUN + PCG7D2 – 700 ml	2912D	2913D	2914D	2915D	2912SD	2913SD	2914SD	2915SD
ECO SET WITH GRAVITY SPRAY GUN + PCG7D2 – 700 ml	2912	2913	2914	2915	2912S	2913S	2914S	2915S
NOZZLE + NEEDLE SET	93008160	93008070	93008180	93008200	93008230	93008250	93008270	93008290
AIR CAP SET		LS-400-06 93008030

SPARE PARTS

Ref.	Code	Description	Qty.
1	93008030	AIR CAP SET 06
1-1	93008060	AIR CAP RING (GREEN)
1-2	93018310	PACKING SET	2
2.1+2.2	93008160	NOZZLE NEEDLE SET 1.2 ET
2.1+2.2	93008070	NOZZLE NEEDLE SET 1.3 ET
2.1+2.2	93008180	NOZZLE NEEDLE SET 1.4 ET
2.1+2.2	93008200	NOZZLE NEEDLE SET 1.5 ET
2.1+2.2	93008230	NOZZLE NEEDLE SET 1.2 ETS
2.1+2.2	93008250	NOZZLE NEEDLE SET 1.3 ETS
2.1+2.2	93008270	NOZZLE NEEDLE SET 1.4 ETS
2.1+2.2	93008290	NOZZLE NEEDLE SET 1.5 ETS
3	93810620	NEEDLE PACKING ASSY
3	93001410	SELF ADJUSTING NEEDLE PACKING (OPTIONAL)
4	93008420	PATTERN ADJ. ASSY
5	93008820	PATTERN ADJ. KNOB (GREEN)
6	93001640	AIR VALVE SEAT ASSY
8	93001690	AIR VALVE
9	93001700	AIR VALVE SPRING
10	93008840	FLUID ADJ. GUIDE ASSY
11	93002820	FLUID NEEDLE SPRING ASSY
12	93505823	FLUID ADJ. SCREW
13	93008860	FLUID ADJ. KNOB (GREEN)
14	93001790	AIR VALVE SHAFT
15	93008872	AIR ADJ. ASSY
16	93008890	TRIGGER
17	93505860	TRIGGER STUD
18	96612025	E STOPPER
19	93512741	TORX SOCKET COUNTERSUNK HEAD SCREWS
24	93538600	UNIVERSAL SPANNER
25	03506480K	ALLEN WRENCH SET	3
26	W2COM6163	BRUSHES	5
27	W2COM6162	TWISTED BRUSH Ø10MM	5
28	930114A0	DPG-1 PSI
28-1	930325A0	BATTERY HOLDER SPARE KIT
28-2	930083A0	BATTERY
29	930357A0	TRIGGER LOCKING CLIP
30	930366A0	PLUGS	5
31	960024A0	SCREWDRIVER

ACCESSORIES

Ref.	Code	Description
	930443A0	REPAIR SERVICE KIT (7, 9, 11, 14, 10, 17, 18, & 3)

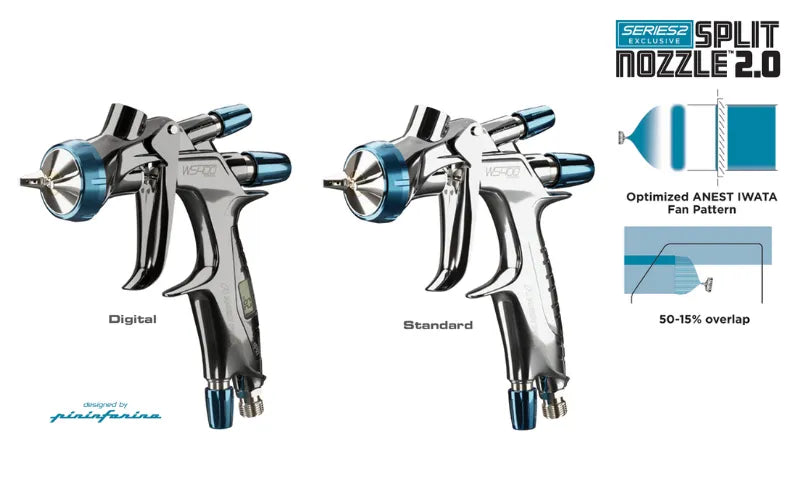

WS-400 SERIES 2 BASE

FEATURES

Compliant spray gun that meets EPA NESHAP 40 CFR, Part 63 Subpart 6H
Exclusive Split Nozzle™ 2.0 Technology for repeatable results and unmatched performance
Ideal for wet on wet basecoat applications
Nozzle configurations to optimize your paint and climate conditions
Optional DPG1 high-performance digital pressure regulator allows air adjustment convenience without disrupting the spray gun ergonomics


TECHNICAL
OBS: FOR TYPE A WET ON WET APPLICATION
WS-400-SR2D-OBS-0	Y	1.3 OBS-0	HUMID			210		255/10.0
WS-400-SR2-OBS-0		1.3 OBS-0	HUMID			210		255/10.0
WS-400-SR2D-OBS	Y	1.3 OBS	STANDARD*	WS-400-02-OBS	2.0/29	215	13.1	255/10.0
WS-400-SR2-OBS		1.3 OBS	STANDARD*	WS-400-02-OBS	2.0/29	215	13.1	255/10.0
WS-400-SR2D-OBS+1	Y	1.3 OBS+1	DRY			235		260/10.2
WS-400-SR2-OBS+1		1.3 OBS+1	DRY			235		260/10.2
BF: FOR TYPE B WET ON WET APPLICATION
WS-400-SR2D-BF-S	Y	BF-S	STANDARD*	WS-400-03-BF	2.0/29	245	13.1	250/9.8
WS-400-SR2-BF-S		BF-S	STANDARD*	WS-400-03-BF	2.0/29	245	13.1	250/9.8

ORDER INFORMATION

	ø 1.3 OBS-O	ø 1.3 OBS	ø 1.3 OBS+1	BF-S
ECO SET WITH DIGITAL GRAVITY SPRAY GUN + PCG7D2 – 700 ml	2916D	2917D	2918D	2920D
ECO SET WITH GRAVITY SPRAY GUN + PCG7D2 – 700 ml	2916	2917	2918	2920
NOZZLE + NEEDLE SET	93008930	93008340	93008990	93018150
AIR CAP SET		WS-400-02-OBS 93008310		WS-400-03-BF 93018140

SPARE PARTS

Ref.	Code	Description
1	93008310	AIR CAP SET 02-OBS
1	93018140	AIR CAP SET 03-BF
1-1	93008330	AIR CAP RING (BLUE)

ACCESSORIES

Ref.	Code	Description
	930443A0	REPAIR SERVICE KIT (7, 9, 11, 14, 10, 17, 18, & 3)

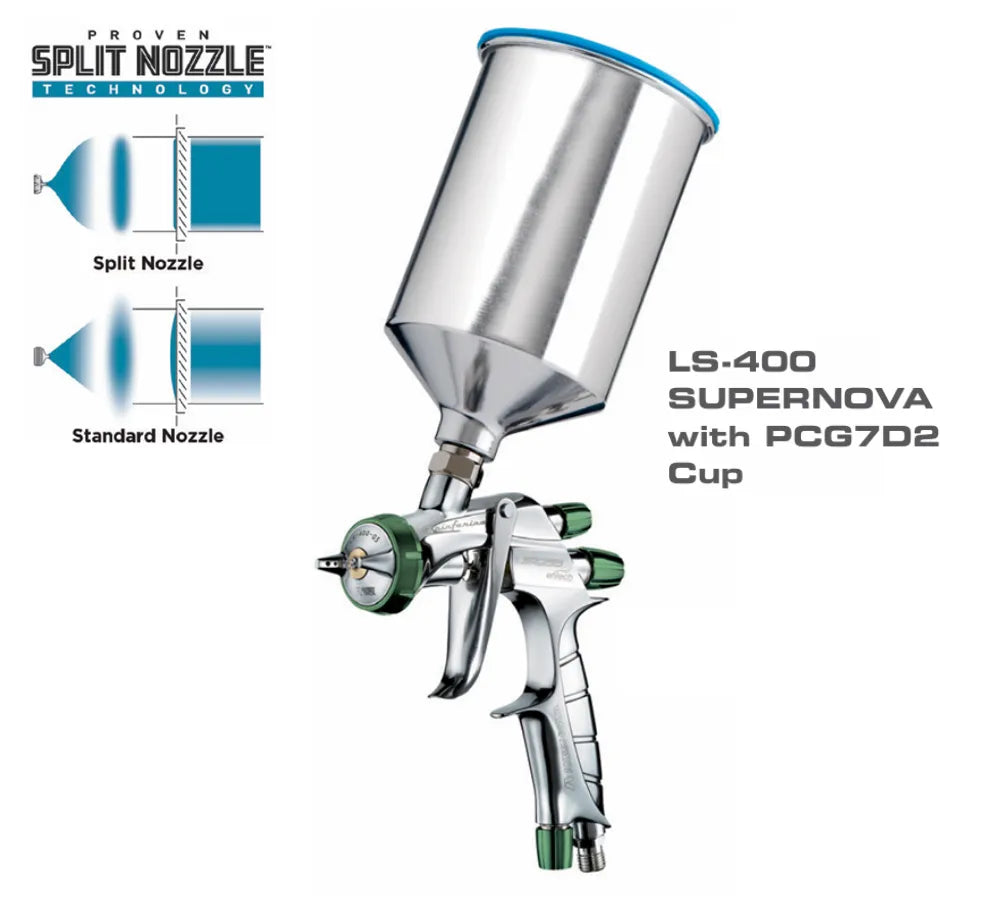

LS-400 SUPERNOVA ENTECH

FEATURES

HVLP spray gun with low operating air pressure
Proven Split Nozzle™ Technology for increased material savings
Excellent for solvent or waterborne base coat and clear coat application
Large fan pattern
Superior transfer efficiency
Quality surface for easy cleaning

TECHNICAL
LS-400-1205	1.2	05	1.8 / 26	150	14.83	305
LS-400-1305	1.3			160		310
LS-400-1405	1.4			180		310
LS-400-1505	1.6			190		320

• Air Nipple: G1/4" • Fluid Nipple: G1/4"

ORDER INFORMATION - LS-400 SUPERNOVA ENTECH

	ø 1.2	ø 1.3	ø 1.4	ø 1.5
GRAVITY SPRAY GUN LS-400	5930	5935	5940	5945
GRAVITY SPRAY GUN + PCG600P2 – 600 ml	5931	5936	5941	5946
GRAVITY SPRAY GUN + PCG7D2 – 700 ml	5932	5937	5942	5947
GRAVITY SPRAY GUN + PCG10D2 – 1000 ml	5933	5938	5943	5948
NOZZLE + NEEDLE SET	93512760	93512780	93513120	93513140
AIR CAP SET		LS-400-05 93512100

ORDER INFORMATION - Special Effects ET Nozzle for Xirallic

	ø 1.0	ø 1.1	ø 1.2
ET NOZZLE	93003150	93003190	93512150
ET FLUID NEEDLE		93829600

SPARE PARTS

Ref.	Code	Description	Qty.
1	93512100	AIR CAP SET 05
2.1+2.2		NOZZLE + NEEDLE SET
3	93765610	CARTRIDGE PACKING
4-1	93505421	FLUID NIPPLE	1/4"
4-2	93660300	AIR NIPPLE	1/4"
5	93505432	PATTERN ADJUST SET
6	93512290	ADJUST KNOB	GREEN
7	93845330	AIR VALVE SEAT SET
7-1	96638008	O RING
8	93505480	AIR VALVE
9	93719530	AIR VALVE SPRING
10	93505492	FLUID ADJUST GUIDE SET
11	93593530	FLUID NEEDLE SPRING
12	93505822	FLUID ADJ. SCREW SET
13	93512730	FLUID ADJUST KNOB	GREEN
14	93935430	AIR VALVE SHAFT
15	93505842	AIR ADJUST SET
16	93505850	TRIGGER
17	93505860	TRIGGER STUD
18	96612025	E STOPPER
19	93506970	TORQUE SCREW

ACCESSORIES

Ref.	Code	Description
	93505341	AIR CAP GASKET (BLACK)
	93505330	AIR CAP GASKET (WHITE)
	2978	TEST CAP GUAGE SET 05
	5652	REPAIR SERVICE KIT (Includes: 3, 7, 9, 11, 17, & 18)

LPH-400-LVX

FEATURES

HVLP spray gun with low operating air pressure
Proven Split Nozzle™ Technology for increased material savings
All of the features of the LPH-400-LV with a specially designed orange cap for spraying metallics, stains, and dyes.
Ideal for general purpose use
Quality surface for easy cleaning
Minimal wear parts for easy maintenance

TECHNICAL
LPH-400-134LVX	1.3	LVX Orange	1.1 / 16	120	9.8	300
LPH-400-144LVX	1.4			130		310
LPH-400-154LVX	1.5			145		330

• Air Nipple: G1/4" • Fluid Nipple: M16 x 1.5mm

ORDER INFORMATION - LPH-400-LVX

	ø 1.3	ø 1.4	ø 1.5
GRAVITY SPRAY GUN LPH-400-LVX	5660	5670	5680
GRAVITY SPRAY GUN + PCG6PM – 600ML	5661	5671	5681
GRAVITY SPRAY GUN + PCG7EM – 700ML	5662	5672	5682
GRAVITY SPRAY GUN + PCG10EM – 1000ML	5663	5673	5683
NOZZLE + NEEDLE SET	93897600	93873600	93516650
AIR CAP SET (ORANGE)		93548700

SPARE PARTS

Ref.	Code	Description
1		AIR CAP SET
2		NOZZLE + NEEDLE SET
3-1	93660300	AIR NIPPLE	1/4"
3-2	93650531	FLUID NIPPLE	M16×1.5
4	93842601	PATTERN ADJ. SET
5	93845330	AIR VALVE SEAT SET
5-1	96638008	O RING
6	93591530	AIR VALVE
7	93719530	AIR VALVE SPRING
8	93844532	FLUID ADJUST GUIDE SET
9	93593530	FLUID NEEDLE SPRING
10	93594532	FLUID ADJUST KNOB
11	93935430	AIR VALVE SHAFT
12	93845531	AIR ADJUST SET
13	93667360	TRIGGER STUD
14	93517600	TRIGGER
15	93912030	STOPPER	(2 PCS./1PK.)
16	93765610	CARTRIDGE PACKING
17	93515500	FILTER	60 MESH

ACCESSORIES

Ref.	Code	Description
	93708240	AIR CAP PACKING (WHITE)
	93512600	AIR CAP PACKING (BLACK)
	2950	MK5 MAINTENANCE KIT
	5650	REPAIR SERVICE KIT (includes: 5-1, 7, 9, 13, 15, 16)
	2995	TEST CAP GAUGE SET "LPH100-LV4"
	2996	TEST CAP GAUGE SET "LPH100-LVB"
	2998	TEST CAP GAUGE SET "LPH100-LV4X"

LPH-400-LV

FEATURES

HVLP spray gun with low operating air pressure
Proven Split Nozzle™ Technology for increased material savings
Ideal for general purpose use
Quality surface for easy cleaning
Minimal wear parts for easy maintenance

TECHNICAL
LPH-400-124LV	1.2	LV4 Silver	1.1 / 16	90	9.5	259
LPH-400-134LV	1.3			110		279
LPH-400-144LV	1.4			130		290
LPH-400-154LV	1.5			140		295
LPH-400-164LV	1.6			150		300
LPH-400-184LV	1.8			190		320

• Air Nipple: G1/4" • Fluid Nipple: M16 X 1.5mm

ORDER INFORMATION

	ø 1.2	ø 1.3	ø 1.4	ø 1.5	ø 1.6	ø 1.8
GRAVITY SPRAY GUN LPH-400LV	5540	5640	5550	5535	5560	5570
GRAVITY SPRAY GUN + PCG6PM – 600ML	5541	5641	5551	5536	5561	5571
GRAVITY SPRAY GUN + PCG7EM – 700ML	5542	5642	5552	5537	5562	5572
GRAVITY SPRAY GUN + PCG10EM – 1000ML	5543	5643	5553	5538	5563	5573
NOZZLE + NEEDLE SET	93880600	93897600	93873600	93516650	93882600	93884600
AIR CAP SET (SILVER)			93874601

SPARE PARTS

Ref.	Code	Description
1		AIR CAP SET
2		NOZZLE + NEEDLE SET
3-1	93660300	AIR NIPPLE	1/4"
3-2	93650531	FLUID NIPPLE	M16×1.5
4	93842601	PATTERN ADJ. SET
5	93845330	AIR VALVE SEAT SET
5-1	96638008	O RING
6	93591530	AIR VALVE
7	93719530	AIR VALVE SPRING
8	93844532	FLUID ADJUST GUIDE SET
9	93593530	FLUID NEEDLE SPRING
10	93594532	FLUID ADJUST KNOB
11	93935430	AIR VALVE SHAFT
12	93845531	AIR ADJUST SET
13	93667360	TRIGGER STUD
14	93517600	TRIGGER
15	93912030	STOPPER	(2 PCS./1PK.)
16	93765610	CARTRIDGE PACKING
17	93515500	FILTER	60 MESH

ACCESSORIES

Ref.	Code	Description
	93708240	AIR CAP PACKING (WHITE)
	93512600	AIR CAP PACKING (BLACK)
	2950	MK5 MAINTENANCE KIT
	5650	REPAIR SERVICE KIT (includes: 5-1, 7, 9, 13, 15, 16)
	2995	TEST CAP GAUGE SET "LPH100-LV4"
	2996	TEST CAP GAUGE SET "LPH100-LVB"
	2998	TEST CAP GAUGE SET "LPH100-LV4X"

W-400-LV

FEATURES

Compliant spray gun that meets EPA NESHAP 40 CFR, Part 63 Subpart 6H
Proven Split Nozzle™ Technology for increased material savings
Tulip inspired spray pattern
Ideal for general purpose use
Quality surface for easy cleaning
Minimal wear parts for easy maintenance

TECHNICAL
W-400LV-124G	1.2	LV4	1.4 / 20	100	10.5	250
W-400LV-134G	1.3			140		270
W-400LV-144G	1.4			155		290
W-400LV-164G	1.6			185		305
W-400LV-184G	1.8			235		325

• Air Nipple: G1/4" • Fluid Nipple: M16 X 1.5m

ORDER INFORMATION - W-400-LV W/O REGULATOR

	ø 1.2	ø 1.3	ø 1.4	ø 1.6	ø 1.8
GRAVITY SPRAY GUN	4750	4755	4760	4765	4770
GRAVITY SPRAY GUN + PCG6PM – 600 ml	4751	4756	4761	4766	4771
GRAVITY SPRAY GUN + PCG7EM – 700 ml	4752	4757	4762	4767	4772
GRAVITY SPRAY GUN + PCG10EM – 1000 ml	4753	4758	4763	4768	4773
NOZZLE + NEEDLE SET	93627610	93634610	93628610	93622620	93635620
AIR CAP SET			LV4 93631621

ORDER INFORMATION - W-400-LV W/ AK-1B2 AIR REGULATOR

	ø 1.2	ø 1.3	ø 1.4	ø 1.6	ø 1.8
GRAVITY SPRAY GUN	4775	4780	4785	4790	4795
GRAVITY SPRAY GUN + PCG6PM – 600 ml	4776	4781	4786	4791	4796
GRAVITY SPRAY GUN + PCG7EM – 700 ml	4777	4782	4787	4792	4797
GRAVITY SPRAY GUN + PCG10EM – 1000 ml	4778	4783	4788	4793	4798

ORDER INFORMATION - W-400-LV W/ AK-1R2 AIR REGULATOR

	ø 1.2	ø 1.3	ø 1.4	ø 1.6	ø 1.8
GRAVITY SPRAY GUN	4855	4860	4865	4870	4875
GRAVITY SPRAY GUN + PCG6PM – 600 ml	4856	4861	4866	4871	4876
GRAVITY SPRAY GUN + PCG7EM – 700 ml	4857	4862	4867	4872	4877
GRAVITY SPRAY GUN + PCG10EM – 1000 ml	4858	4863	4868	4873	4878

SPARE PARTS

Ref.	Code	Description
1		AIR CAP SET
2		NOZZLE + NEEDLE SET
3-1	93660300	AIR NIPPLE	1/4"
3-2	93650531	FLUID NIPPLE	M16×1.5
4	93842601	PATTERN ADJ. SET
5	93845330	AIR VALVE SEAT SET
5-1	96638008	O RING
6	93591530	AIR VALVE
7	93719530	AIR VALVE SPRING
8	93844532	FLUID ADJUST GUIDE SET
9	93593530	FLUID NEEDLE SPRING
10	93594532	FLUID ADJUST KNOB
11	93935430	AIR VALVE SHAFT
12	93845531	AIR ADJUST SET
13	93667360	TRIGGER STUD
14	93517600	TRIGGER
15	93912030	STOPPER	(2 PCS./1PK.)
16	93765610	CARTRIDGE PACKING
17	93515500	FILTER	60 MESH

ACCESSORIES

Ref.	Code	Description
	93708240	AIR CAP PACKING (WHITE)
	93512600	AIR CAP PACKING (BLACK)
	2950	MK5 MAINTENANCE KIT
	5650	REPAIR SERVICE KIT (includes: 4, 7-1, 9, 11, 15, 17)

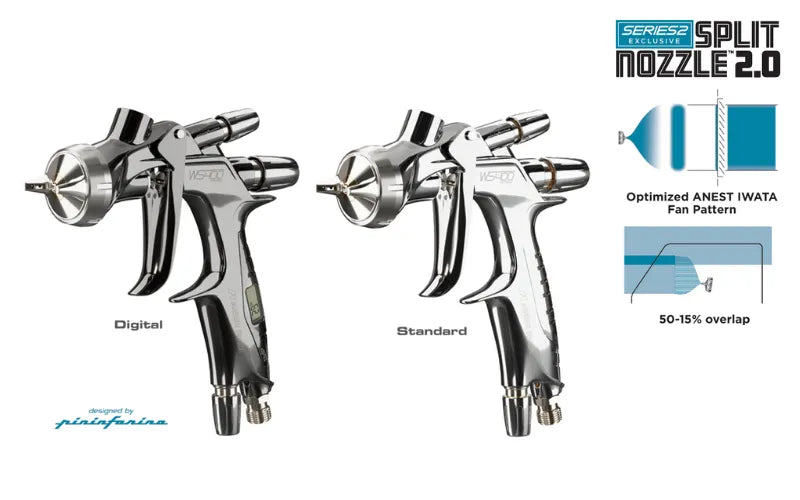

WS-400 SERIES 2 CLEAR

ORDER INFORMATION

	1.2 HD	1.3 HD	1.4 HD	1.5 HD
ECO SET WITH DIGITAL GRAVITY SPRAY GUN + PCG7D2 – 700 ml	2712D	2713D	2714D	2715D
ECO SET WITH GRAVITY SPRAY GUN + PCG7D2 – 700 ml	2712	2713	2714	2715
NOZZLE + NEEDLE SET	93009140	93009060	93009160	93009180
AIR CAP SET		WS-400-03 93009030

SPARE PARTS

Ref.	Code	Description	Qty.
1	93009030	AIR CAP SET 03
1-1	93009050	AIR CAP RING (GREY)
1-2	93018310	PACKING SET	2
2.1+2.2	93009140	NOZZLE NEEDLE SET 1.2 HD
2.1+2.2	93009060	NOZZLE NEEDLE SET 1.3 HD
2.1+2.2	93009160	NOZZLE NEEDLE SET 1.4 HD
2.1+2.2	93009180	NOZZLE NEEDLE SET 1.5 HD
3	93810620	NEEDLE PACKING ASSY
3	93001410	SELF ADJUSTING NEEDLE PACKING (OPTIONAL)
5	93008420	PATTERN ADJ. ASSY
6	93009120	PATTERN ADJ. KNOB (GREY)
7	93001640	AIR VALVE SEAT ASSY
8	93001690	AIR VALVE
9	93001700	AIR VALVE SPRING
10	93008840	FLUID ADJ. GUIDE ASSY
11	93002820	FLUID NEEDLE SPRING ASSY
12	93505823	FLUID ADJ. SCREW
13	93009130	FLUID ADJ. KNOB (GREY)
14	93001790	AIR VALVE SHAFT
15	93008872	AIR ADJ. ASSY
16	93008890	TRIGGER
17	93505860	TRIGGER STUD
18	96612025	E STOPPER
19	93512741	TORX SOCKET COUNTERSUNK HEAD SCREWS
24	93538600	UNIVERSAL SPANNER
25	03506480K	ALLEN WRENCH SET	3
26	W2COM6163	BRUSHES	5
27	W2COM6162	TWISTED BRUSH Ø10MM	5
28	930114A0	DPG-1 PSI
28-1	930325A0	BATTERY HOLDER SPARE KIT
28-2	930083A0	BATTERY
29	930357A0	TRIGGER LOCKING CLIP
30	930366A0	PLUGS	5
31	960024A0	SCREWDRIVER

ACCESSORIES

Ref.	Code	Description
	930443A0	REPAIR SERVICE KIT (7, 9, 11, 14, 10, 17, 18, & 3)

WS-400HD SUPERNOVA EVOTECH

FEATURES

Compliant spray gun that meets EPA NESHAP 40 CFR, Part 63 Subpart 6H
Proven Split Nozzle™ Technology for increased material savings
Concentrated fine atomization
Large fan tulip pattern
Standard for clear coats
Fast application speed
Superior transfer efficiency

TECHNICAL
WS-400-1201HD	1.2	01	2.0 / 29	200	13	350
WS-400-1301HD	1.3			220		365
WS-400-1401HD	1.4			240		370
WS-400-1501HD	1.5			260		370
WS-400-OBS13	1.3			160		365

• Air Nipple: G1/4" • Fluid Nipple: G1/4"

	ø 1.2HD	ø 1.3(OBS)	ø 1.3HD	ø 1.4HD	ø 1.5HD
GRAVITY SPRAY GUN WS-400HD	5900	5920	5905	5910	5915
GRAVITY SPRAY GUN + PCG600P2 – 600ML	5901	5921	5906	5911	5916
GRAVITY SPRAY GUN + PCG7D2 – 700ML	5902	5922	5907	5912	5917
GRAVITY SPRAY GUN + PCG10D2 – 1000ML	5903	5923	5908	5913	5918
NOZZLE + NEEDLE SET	93505880	93506850	93506910	93506920	93506930
AIR CAP SET			WS-400-01 93505300

SPARE PARTS

Ref.	Code	Description	Qty.
1	93505300	AIR CAP SET 01
2.1+2.2		NOZZLE + NEEDLE SET
3	93765610	CARTRIDGE PACKING
4-1	93505421	FLUID NIPPLE	1/4"
4-2	93660300	AIR NIPPLE	1/4"
5	93505432	PATTERN ADJUST SET
6	93505471	ADJUST KNOB	SILVER
7	93845330	AIR VALVE SEAT SET
7-1	96638008	O RING
8	93505480	AIR VALVE
9	93719530	AIR VALVE SPRING
10	93505492	FLUID ADJUST GUIDE SET
11	93593530	FLUID NEEDLE SPRING
12	93505822	FLUID ADJ. SCREW SET
13	93505831	FLUID ADJUST KNOB	SILVER
14	93935430	AIR VALVE SHAFT
15	93505842	AIR ADJUST SET
16	93505850	TRIGGER
17	93505860	TRIGGER STUD
18	96612025	E STOPPER
19	93506970	TORQUE SCREW

ACCESSORIES

Ref.	Code	Description
	93505341	AIR CAP GASKET (BLACK)
	93505330	AIR CAP GASKET (WHITE)
	5652	REPAIR SERVICE KIT (Includes: 3, 7, 9, 11, 17, & 18)

LPH-80

FEATURES

HVLP spray gun with low operating air pressure
Perfect for spot repair and touch-up as well as coating hard to reach areas
Very fine atomization with low air consumption
Extremely low material consumption
Perfect handling when blending
One of the most lightweight spot repair guns on the market
Simple operation of the control knobs for both right and left handers
Conical seal nozzle, minimum wear parts
Easy maintenance
Quality surface for easy cleaning
Recommended for UV primers and ceramic coatings

TECHNICAL
LPH-80
LPH-80-042G	0.4			8		40
LPH-80-062G	0.6			25		60
LPH-80-082G	0.8	E2	1.0/13	45	1.8	80
LPH-80-102G	1.0			55		100
LPH-80-122G	1.2			80		120
LPH-80-104G (WIDE FAN)	1.0	E4	1.0/14	60	2.2	130
LPH-80-124G (WIDE FAN)	1.2			75		140
LPH-80-ST2
LPH-80-ST2	1.0	-	1.0/14	-	-	-

• Air Nipple: G1/4" • Fluid Nipple: G1/8"

ORDER INFORMATION

	ø 0.4	ø 0.6	ø 0.8	ø 1.0 (E2)	ø 1.2 (E2)	ø 1.0 (E4)	ø 1.2 (E4)
GRAVITY SPRAY GUN LPH-80	4900	4905	4910	4915	4920	4925	4930
GRAVITY SPRAY GUN + PCG2D-1 – 150ML	4901	4906	4911	4916	4921	4926	4931
AIR CAP SET	93557600						93662600
NEEDLE SET	93891600		93890600		93886600
FLUID NOZZLE	93570600	93568600	93761530	93560600	93760530	93560600	93760530

LPH-80 Parts

SPARE PARTS

Ref.	Code	Description	Qty.
1	93557600	AIR CAP SET	E2
1	93662600	AIR CAP SET	E4
2	93558600	AIR CAP GASKET
3	93559600	AIR CAP COVER RING
4		NOZZLE SET
5		NEEDLE SET
7	93940890	NEEDLE PACKING CARTRIDGE
8-1	93753530	FLUID NIPPLE	1/8" BSP
8-2	93660300	AIR NIPPLE	1/4"
9	93748530	PATTERN ADJ. SET
10	93912880	AIR VALVE SEAT SET
10-1	96638005	O RING
11	93011880	AIR VALVE SEAT SCREW
12	93013880	AIR VALVE
13	93012880	AIR VALVE SPRING
14	93936880	FLUID ADJ. GUIDE SET
15	93015880	FLUID NEEDLE SPRING
16	93754530	FLUID ADJ. KNOB
17	93006880	AIR VALVE SHAFT
18	93845531	AIR ADJ. SET
19	93167890	TRIGGER STUD
20	93162890	TRIGGER
21	93912030	E STOPPER	2 pcs./1 pk.

ACCESSORIES

Ref.	Code	Description
	2950	MK5 MAINTENANCE KIT
	2860	REPAIR SERVICE KIT (includes: 7, 10-1, 21)
	2981	TEST CAP GAUGE SET “E2” (042G/062G/082G/102G/122G)
	2982	TEST CAP GAUGE SET “E4” (104G/124G)

AIR GUNSA AZ3 HTE-S IMPACT

FEATURES

HVLP spray gun with low operating air pressure
High quality filler spray gun
Flat and thin spray pattern with fine atomization
All fluid passages are in stainless steel
Simple operation of the control knobs, for right and left handers
Costs for spare parts replacement extremely customer friendly

TECHNICAL
AZ3 HTE-S IMPACT HVLP
	1.3	HVLP 1	1.8	307	5.7	280
	1.4				6.2	300
	1.5				6.7	320
AZ3 HTE-S IMPACT HVLP
	1.6	HVLP 2	2.1	369	3.2	260
	1.8				3.5	280
	2.0				3.9	300

• Air Nipple: G1/4" • Fluid Nipple: G1/4"

ORDER INFORMATION - AZ3 HTE-S IMPACT W/ 600ml CUP

	ø 1.3	ø 1.4	ø 1.5	ø 1.6	ø 1.8	ø 2.0
GRAVITY SPRAY GUN + PCG-6P-2-AZ – 600 ml	9270	9274	9271	9275	9272	9273
NOZZLE + NEEDLE SET	9280	9286	9281	9287	9282	9283
AIR CAP SET		9284			9285

SPARE PARTS

Ref.	Code	Description	Qty.
1		AIR CAP SET
2+9		FLUID NOZZLE + FLUID NEEDLE SET
3	9901	NOZZLE HOLDER
5	93842601	PATTERN ADJ. SET
6	9913	FLUID NEEDLE ADJ. KNOB
7	9135	FLUID NEEDLE GUIDE
8	9155B	FLUID NEEDLE SPRING
10	9134	FLUID NEEDLE PACKING NUT
11	9211	AIR VALVE SET
11-1	9156B	AIR VALVE SPRING
11-2	9146B	AIR VALVE
11-3	9148	AIR VALVE SEAT
12	9914	TRIGGER STUD
13	9256	TRIGGER
14	93845531	AIR ADJ. SET
15	9902	THREADED BUSHING
16	9196	SCREW
16-1	9257	PLUG
17	9915	AIR NIPPLE
C	9166	PACKING SET	(3 pcs./1 pk.)
D	9259	SLIDE RING SET	(10 pcs./1 pk.)
E	9916	AIR VALVE SHAFT TIP SET	(3 pcs./1 pk.)
18	9290	PCG-6P-2-AZ GRAVITY CUP 600 ml
B	9164	NON DRIP SET	(5 pcs./1 pk.)
F	9167	FILTER SET 50 MESH (297μ)	(5 pcs./1 pk.)
19	9912	UNIVERSAL SPANNER

AIR GUNSA AZ3 HV-2 HVLP

FEATURES

HVLP spray gun with low operating air pressure
Robust spray gun
Flat and thin spray pattern with a fine atomization
All wetted parts in stainless steel
Replacement parts available
O-Ring Kit Part #9166

TECHNICAL
AZ3 HV-2 HVLP
AZ3HV2-13GC	1.3	HVLP	2.0/30	150	11.0	340
AZ3HV2-15GC	1.5			185	11.4
AZ3HV2-18GC	1.8			215	13.4
AZ3HV2-20GC	2.0			240	14.2

ORDER INFORMATION - AZ3 HV-2 HVLP W/ 600ml CUP

	ø 1.3	ø 1.5	ø 1.8	ø 2.0
GRAVITY SPRAY GUN + PCG6PM – 600 ml	9230	9231	9232	9233
NOZZLE + NEEDLE SET	9173	9152	9153	9154
AIR CAP SET			9254

SPARE PARTS

Ref.	Code	Description	Qty.
1		AIR CAP SET
2+9		NOZZLE + NEEDLE SET
3	9193	NOZZLE HOLDER
5	93842601	PATTERN ADJ. SET
6	9145B	FLUID NEEDLE ADJ. KNOB
7	9135	FLUID NEEDLE GUIDE
8	9155B	FLUID NEEDLE SPRING
10	9134	FLUID NEEDLE PACKING NUT
11	9211	AIR VALVE SET
11-1	9156B	AIR VALVE SPRING
11-2	9146-B	AIR VALVE SHAFT
11-3	9148	AIR VALVE SEAT
12	9133	TRIGGER STUD
13	9256	TRIGGER
14-1	93845531	AIR ADJ. SET
14-2	93625370	PLUG
15	9195	THREADED BUSHING
16-1	9196	SCREW
16-2	9257	PLUG
17	9213	AIR NIPPLE
C	9166	PACKING SET	(3 pcs./1 pk.)
18	9131	600ml CUP SET

KATANA PLUS - AN AIRREX PRODUCT BY ANEST IWATA

FEATURES

HVLP spray gun with low operating air pressure
Includes Katana Plus Spray Guide and accessories to get you started
Better atomization for a smooth finish — no brush marks
Lower overspray for indoor and outdoor use
6 inch fan pattern for fast coverage
Ergonomic, durable construction
Responsive and smoother trigger action
No replacement parts available

TECHNICAL
KATANA PLUS	1.3	HVLP	1.4 / 20	155	9.9	140

ORDER INFORMATION - KATANA PLUS HVLP SPRAY GUN

	ø 1.3
GRAVITY SPRAY GUN + 600ML CUP + SPRAY GUIDE + PAINT STRAINERS + CLEANING BRUSH + THREAD SEALANT TAPE + VISCOSITY CUP + GUN WRENCH	KAT9000

CUPS & CONTAINERS FOR MANUAL SPRAY GUNS

ALUMINUM GRAVITY CUPS

Models		LS-400 Series 2 Base	WS-400 Series 2 Base	WS-400 Series 2 Clear	LS-400 SUPERNOVA	WS-400 SUPERNOVA	W-400	W-400-LV- WBX	LPH-400	LPH-300-LV	LPH-80
1000 ML	PCG10D2	⬤	⬤	⬤	⬤	⬤
	6038D
	G1/4" Stainless Steel Fluid Joint
1000 ML	PCG10EM						⬤	⬤	⬤
	6034E
	M16×1.5 Female Stainless Steel Fluid Joint
700 ML	PCG7D2	⬤	⬤	⬤	⬤	⬤				⬤
	6032D
	G1/4" Stainless Steel Fluid Joint
700 ML	PCG7EM						⬤	⬤	⬤
	6033E
	M16×1.5 Female Stainless Steel Fluid Joint
400 ML	PCG4D2	⬤	⬤	⬤	⬤	⬤				⬤
	6031D
	G1/4" Stainless Steel
150 ML	PCG2D-1	⬤*	⬤*	⬤*	⬤*	⬤*	⬤**	⬤**	⬤**	⬤*	⬤
	6036D
	G1/8" Stainless Steel
70 ML	PCG1D-1	⬤*	⬤*	⬤*	⬤*	⬤*	⬤**	⬤**	⬤**	⬤*	⬤
	6050
	G1/8" Stainless Steel

*Requires Adaptor Part #6051
**Requires Adaptor Part #6052

CODE	SPARE PARTS for ALUMINUM GRAVITY CUPS	MODELS
94008321	LID	PCG10/7/4/2
94007321	LID	PCG2

AIR REGULATORS

AK-1R2 Air Regulator Part #8131B

Self-purging for consistent pressure and optimal performance
Solvent resistant seals and o-rings
Adjust range 0-60 psi

AK-1B2 Air Regulator Part # 8130B

Compact size
Quality glass gauge
Adjust range 0-100 psi

PLASTIC GRAVITY CUPS

Models		LS-400 Series 2 Base	WS-400 Series 2 Base	WS-400 Series 2 Clear	LS-400	WS-400	W-400-LV	W-400-LV- WBX	LPH-400	LPH-300	LPH-80
70 ML	W0CUPAZ5IN										⬤
	9169
	G1/8" Fluid Joint
250 ML	VPE250										⬤
	9201
	G1/8" Fluid Joint
600 ML	PCG600P-2	⬤	⬤	⬤	⬤	⬤				⬤
	6039
	1/4" Fluid Joint
600 ML	PCG6PM						⬤	⬤	⬤
	6000
	M16 X 1.5MM Fluid Joint

CODE	SPARE PARTS for PLASTIC GRAVITY CUPS	MODELS
94002321	LID	PCG6PM/2/3
94003320	VENT KNOB	PCG6PM/2/23

3M PPS ADAPTERS FOR GRAVITY CUPS

	LS-400 Series 2 Base	WS-400 Series 2 Base	WS-400 Series 2 Clear	LS-400	WS-400	W-400-LV	LPH-400	LPH-300	LPH-80
S2C						⬤	⬤
26503						⬤	⬤
S31									⬤
26527									⬤
S43	⬤	⬤	⬤	⬤	⬤			⬤
26539	⬤	⬤	⬤	⬤	⬤			⬤

SIDE GRAVITY CUPS

Models		WIDER1L
250 ML	PC 5	⬤
	6009
	G1/4" Stainless Steel
220 ML	PC 51	⬤
	6028
	G1/4" Stainless Steel
130 ML	PC 61	⬤
	6010
	G1/4" Stainless Steel
400 ML	PC 4S	⬤
	6008
	G1/4" Stainless Steel

CODE	SPARE PARTS for SIDE GRAVITY CUPS	MODELS
94001080	LID SET	PC 4 - PC 4S
94001100	LID SET	PC 5
94001191	LID SET	PC 61

SIPHON CONTAINERS

MODELS		WIDER1L
1000 ML	PC 1S	⬤
	6004
	G1/4"
600 ML	PC 2	⬤
	6005
	G1/4"
400 ML	PC 3	⬤
	6006
	G1/4"
700 ML	PCL 7B 2	⬤
	6019
	G1/4"
1000 ML	PCL 10B 2	⬤
	6015
	G1/4"

CODE	SPARE PARTS for SIPHON CONTAINER	MODELS
94901000	PACKING SET (2 pcs./1pk.)	PC 1- PC 1S - PC 2
94008300	LID PACKING SET (2 pcs./1pk.)	PCL 7B -PCL 10B
04904302	NON DRIP SET (2 pcs./1pk.)	PCL 7B -PCL 10B

HOSES AND FITTINGS FOR LOW PRESSURE APPLICATIONS

ORDER INFORMATION - EAHU6 (6mm) URETHANE GROUNDED AIR HOSE

Code	Length (ft.)	Diameter (mm)	Fitting Size (in)	Fittings Included	Compatability	Material	Note
8002	1			-	Can be used with all pressure fed guns, pumps, and pots EXCEPT WIDER1/WIDER1L	Urethane	For one 18' hose, order 8002 Qty. 18
8000	6			PJU02F			-
9000	6			NPT			-
8091-12	12	6	1/4	PJU02F			-
8091	25			PJU02F			-
8091-50	50			PJU02F			-
9091	25			NPT			-
8001	328			-	Full Roll

ORDER INFORMATION - EAHU8 (8.7mm) URETHANE GROUNDED AIR HOSE

Code	Length (ft.)	Diameter (mm)	Fitting Size (in)	Fittings Included	Compatability	Material	Note
8114	1			-	Can be used with all pressure fed guns, pumps, and pots EXCEPT WIDER1/WIDER1L	Urethane	For one 18' hose, order 8114 Qty. 18
8220	6	8.7	1/4	W/AJU032F			-
8221	25	8.7	1/4	W/AJU032F			-
8116	328			-			Full Roll

ORDER INFORMATION - PHU6 (6mm) URETHANE FLUID HOSE

Code	Length (ft.)	Diameter (mm)	Fitting Size (in)	Fittings Included	Compatability	Material	Note
8009	1			-		Urethane	For one 18' hose, order 8002 Qty. 18
8007	6			W/PJU023F	Can be used with all pressure fed guns, pumps, and pots EXCEPT WIDER1/WIDER1L		-
9007	6	6	3/8	NPT			-
8048	25			W/PJU023F			-
9048	25			NPT			-
8008	328			-			Full Roll

ORDER INFORMATION - PHU8 (8.7mm) URETHANE FLUID HOSE

Code	Length (ft.)	Diameter (mm)	Fitting Size (in)	Fittings Included	Compatability	Material	Note
8207	1			-	Can be used with all pressure fed guns, pumps, and pots EXCEPT WIDER1/WIDER1L	Urethane	For one 18' hose, order 8002 Qty. 18
8009-12	12	8.7	3/8	-			-
8048-50	50			-			-
8206	328			-			Full Roll

ORDER INFORMATION - PHN6 (6mm) NYLON FLUID HOSE

Code	Length (ft.)	Diameter (mm)	Fitting Size (in)	Fittings Included	Compatability	Material	Note
8212	1		3/8	-	Can be used with all pressure fed guns, pumps, and pots EXCEPT WIDER1/WIDER1L	Nylon	For one 18' hose, order 8002 Qty. 18
8006	6		3/8	PJU023F			-
9010	6		3/8	NPT			-
8213-12	12	6	3/8	PJU023F			-
8213-50	50			PJU023F			-
8213	25			PJU023F			-
9215	25			NPT			-
8211	328			3/8			Full Roll
8210	6	6	3/8 and 1/4	PJU023F PJU02F	WIDER1/WIDER1L ONLY	Nylon	-
8213B	25	6	3/8 and 1/4	-	WIDER1/WIDER1L ONLY	Nylon	-

ORDER INFORMATION - PHN8 (8.7mm) NYLON FLUID HOSE

Code	Length (ft.)	Diameter (mm)	Fitting Size (in)	Fittings Included	Compatability	Material	Note
8112	1			-	Can be used with all pressure fed guns, pumps, and pots EXCEPT WIDER1/WIDER1L	Nylon	For one 18' hose, order 8002 Qty. 18
8230	6	8.7	3/8	W/AJU03F			-
8231	25	8.7	3/8	W/AJU03F			-
8111	328			-			Full Roll

ORDER INFORMATION - HOSE FITTINGS

Code	Diameter (mm)	Fitting Size (in)	Compatability	Name	Note
8023	6	3/8	6mm Hoses	PJU023F	Two fittings per hose
8024	6	1/4	6mm Hoses	PJU02F
9023	6	3/8	6mm Hoses	NPT
9024	6	1/4	6mm Hoses	NPT
8040	8.7	1/4	8.7mm Hoses	AJU032F
8045	8.7	3/8	8.7mm Hoses	AJU03F

FLEET APPLICATIONS - CONVENTIONAL PRESSURE SPRAY GUNS

WS-200 SERIES

FEATURES

Available with proven Split Nozzle™ Technology for increased material savings
Unmatched transfer efficiency
Lightweight, ergonomic design
Produces a high quality finish
Forged aluminum body with stainless steel fluid passages for durability
Ease of maintenance

TECHNICAL
WS-200 SP PRESSURE - SPLIT NOZZLE TECHNOLOGY
WS-200SP-0801	0.8	WS-200SP-01	2.5/36	200	15.3	210/8.3
WS-200SP-1001	1.0			250		230/9.1
WS-200SP-1201	1.2			300		240/9.4
WS-200SP-1401	1.4			300		240/9.4
WS-200SP-1601	1.6			350		255/10.0
WS-200SP-1801	1.8			400		265/10.4
WS-200 FT PRESSURE - FLAT NOZZLE
WS-200FT-0802	0.8	WS-200FT-02	3.0/43	200	16.7	215/8.5
WS-200FT-1002	1.0			250		250/9.8
WS-200FT-1202	1.2			300		255/10.0
WS-200FT-1402	1.4			300		255/10.0
WS-200FT-1602	1.6			350		270/10.6
WS-200FT-1802	1.8			400		285/11.2

Air nipple: G1/4” and fluid nipple: fixed G3/8”

ORDER INFORMATION - WS-200 SP - Split Nozzle Technology

	ø 0.8	ø 1.0	ø 1.2	ø 1.4	ø 1.6	ø 1.8
WS-200 SP PRESSURE SPRAY GUN	4691	4690	4695	4696	4697	4698
NOZZLE + NEEDLE SET	93007240	93007490	93007550	93007620	93007650	93003690
AIR CAP SET	WS-200 SP-01 93001300

ORDER INFORMATION - WS-200 FT - Flat Tip Nozzle

	ø 0.8	ø 1.0	ø 1.2	ø 1.4	ø 1.6	ø 1.8
WS-200 FT PRESSURE SPRAY GUN	4594	4595	4596	4597	4598	4599
NOZZLE + NEEDLE SET	93002180	93002150	93002130	93003420	93003480	93003500
AIR CAP SET	WS-200 FT-02 93002190

WS-200 SERIES

SPARE PARTS

Ref.	Code	Description
1	see left	AIR CAP SET WS-200SP-01
1	see left	AIR CAP SET WS-200FT-01 and WS-200FT-02
2-1 + 2-2	see left	FLUID NOZZLE + NEEDLE SET WS-200SP
2-1 + 2-2	see left	FLUID NOZZLE + NEEDLE SET WS-200FT
4	93007750	BAFFLE RING SET (BAFFLE RING + PACKING)
6	93765610	NEEDLE PACKING SET
7	93001561	PATTERN ADJUSTMENT
8	93001640	AIR VALVE SEAT SET
8-1	93001680	O RING
9	93001690	AIR VALVE
10	93001700	AIR VALVE SPRING
11	93001710	FLUID ADJUSTMENT GUIDE SET
12	93002820	NEEDLE SPRING SET
12-1	93593530	FLUID NEEDLE SPRING
12-2	93001760	NEEDLE SPRING PACKING
13	93001780	FLUID ADJUSTMENT KNOB
14	93001790	AIR VALVE SHAFT
15	93001801	AIR ADJUSTMENT SET
16	93001820	TRIGGER SET
17	93001870	TRIGGER STUD
18	93001960	HEX. SOCKET BUTTON BOLT
19	93505951	UNIVERSAL SPANNER
20	93019720	BRUSH

ACCESSORIES

Ref.	Code	Description
	5655	REPAIR SERVICE KIT (includes: 6, 8, 10, 12, 17, 18)

FLEET APPLICATIONS - HVLP SIPHON | SIDE GRAVITY | PRESSURE SPRAY GUNS

WIDER1L

FEATURES

HVLP spray gun with low operating air pressure
Siphon and gravity models with proven Split Nozzle™ Technology for increased material savings
Lightweight, ergonomic design
Easier maintenance & cleaning
Intuitive, user-friendly pattern adjustment
Larger air valve seat set orifices for consistent installation
Corrosion-resistant stainless steel fluid passages

TECHNICAL
WIDER1L SIPHON - SPLIT NOZZLE TECHNOLOGY
WIDER1L-2-12J2S	1.2	WIDER1L-2-J2	1.0/14.5	60	7.1	170
WIDER1L-2-14J2S	1.4	WIDER1L-2-J2	1.0/14.5	80	7.1	180
WIDER1L-2-16J2S	1.6	WIDER1L-2-J2	1.0/14.5	95	7.1	190
WIDER1L SIDE GRAVITY - SPLIT NOZZLE TECHNOLOGY
WIDER1L-2-12J2G	1.2	WIDER1L-2-J2	1.0/14.5	80^※1	7.1	200^※1
WIDER1L-2-14J2G	1.4	WIDER1L-2-J2	1.0/14.5	130^※1	7.1	220^※1
WIDER1L-2-16J2G	1.6	WIDER1L-2-J2	1.3/18.9	100	8.5	220
WIDER1L PRESSURE
WIDER1L-12G2P	1.2	WIDER1L-G2	3.4/49.3	350	18.7	270

• Spraying distance : 200mm (for all models) • Viscosity: 20s/NK-2
Air nipple: G1/4 and fluid nipple: G1/4 (for all models) • 1 Viscosity: 12s/NK-2

ORDER INFORMATION - WIDER1L Siphon - Split Nozzle Technology

	ø 1.2	ø 1.4	ø 1.6
SIPHON SPRAY GUN	11015	11025	11035
NOZZLE + NEEDLE SET	93013870	93013890	93013920
AIR CAP SET	WIDER1L-2-J2 93013840

ORDER INFORMATION - WIDER1L Side Gravity - Split Nozzle Technology

	ø 1.2	ø 1.4	ø 1.6
SIDE GRAVITY SPRAY GUN	11020	11030	11040
NOZZLE + NEEDLE SET	93013870	93013890	93013920
AIR CAP SET	WIDER1L-2-J2 93013840

ORDER INFORMATION - WIDER1L Pressure

	ø 1.2
PRESSURE SPRAY GUN	11010
NOZZLE + NEEDLE SET	93013860
AIR CAP SET	WIDER1L-G2 93013820

WIDER1L

SPARE PARTS

Ref.	Code	Description
1		AIR CAP SET
2-1		NOZZLE + NEEDLE SET
3	93765610	NEEDLE PACKING CARTRIDGE
4	93012580	PATTERN ADJUSTMENT SET
5	93001790	AIR VALVE SHAFT
6	93001640	AIR VALVE SEAT SET
7	93001690	AIR VALVE
8	93001700	AIR VALVE SPRING
9	93012630	FLUID ADJUSTMENT GUIDE
10	93002820	FLUID NEEDLE SPRING
11	93012650	FLUID ADJUSTMENT KNOB
12	93012660	AIR ADJ. SET
13	93013800	TRIGGER ASSEMBLY
14	93013810	TRIGGER STUD ASSEMBLY

ACCESSORIES

Ref.	Code	Description
	93017689	AIR CAP PACKING
	5654	REPAIR SERVICE KIT (includes: 3, 6, 8, 10, 14)

FLEET APPLICATIONS - HVLP PRESSURE SPRAY GUNS

WIDER2L

FEATURES

HVLP spray gun with low operating air pressure
Available with proven Split Nozzle™ Technology for increased material savings
Lightweight, ergonomic design
Easier maintenance & cleaning
Intuitive, user-friendly pattern adjustment
Larger air valve seat set orifices for consistent installation
Corrosion-resistant stainless steel fluid passages

TECHNICAL
WIDER2L PRESSURE
WIDER2L-10G2P	1.0	WIDER2L-G2	2.0/28	300	16.6	250
WIDER2L-12G2P	1.2	WIDER2L-G2	2.0/28	500	16.6	300
WIDER2L-14G2P	1.4	WIDER2L-G2	2.0/28	500	16.6	300
WIDER2L PRESSURE - SPLIT NOZZLE TECHNOLOGY
WIDER2L-2-08G2P	0.8	WIDER2L-2-G2	2.0/28	95	15.2	320
WIDER2L-2-10G2P	1.0	WIDER2L-2-G2	2.0/28	100	15.2	330
WIDER2L-2-12G2P	1.2	WIDER2L-2-G2	2.0/28	130	15.2	330

Spraying distance : 200mm (for all models) • Viscosity : 20s/NK-2
Air nipples : G1/4 and fluid nipples : G3/8 (for all models)

ORDER INFORMATION - WIDER2L Pressure

	ø 1.0	ø 1.2	ø 1.4
PRESSURE SPRAY GUN	21010	21011	21012
NOZZLE + NEEDLE SET	93014190	93014200	93014210
AIR CAP SET	WIDER2L-G2 93014150

ORDER INFORMATION - WIDER2L Pressure - Split Nozzle Technology

	ø 0.8	ø 1.0	ø 1.2
PRESSURE SPRAY GUN	21013	21015	21020
NOZZLE + NEEDLE SET	93019850	93014230	93014240
AIR CAP SET	WIDER2L-2-G2 93014170

WIDER2L

SPARE PARTS

Ref.	Code	Description
1		AIR CAP SET
2-1		NOZZLE + NEEDLE SET
3	93810620	NEEDLE PACKING CARTRIDGE
4	93011630	PATTERN ADJUSTMENT SET
5	93001790	AIR VALVE SHAFT
6	93001640	AIR VALVE SEAT SET
7	93001690	AIR VALVE
8	93001700	AIR VALVE SPRING
9	93012630	FLUID ADJUSTMENT GUIDE
10	93002820	FLUID NEEDLE SPRING
11	93012650	FLUID ADJUSTMENT KNOB
12	93012660	AIR ADJ. SET
13	93014500	TRIGGER ASSEMBLY
14	93013810	TRIGGER STUD ASSEMBLY

ACCESSORIES

Ref.	Code	Description
	93017700	AIR CAP PACKING
	5654	REPAIR SERVICE KIT (includes: 3, 6, 8, 10, 14)

AIR GUNSA AZ1-HVLP-CONCEPT

FEATURES

HVLP spray gun with low operating air pressure
Specially designed air cap delivers a long spray pattern with extra fine atomization and very little overspray
Experienced and novice painters can achieve a consistent, high quality finish at budget cost
Easy maneuverability and improved ergonomics
Compatible with ANEST IWATA pressure pots and diaphragm pumps

TECHNICAL
AZ1-HVLP-CONCEPT
AZ1-HVLP-10P	1.0	HVLP -P6	1.4/20	400	9.88	310
AZ1-HVLP-13P	1.3					360
AZ1-HVLP-15P	1.5					380
AZ1-HVLP-18P	1.8
AZ1-HVLP-20P	2.0
AZ1-HVLP-25P	2.5
AZ1-HVLP-30P	3.0	HVLP -P7	1.2/17		8.12	320
AZ1-HVLP-35P	3.2	HVLP -P7	1.2/17		8.12

ORDER INFORMATON - AZ1-HVLP-CONCEPT XYZ

	ø 1.0	ø 1.3	ø 1.5	ø 1.8	ø 2.0	ø 2.5	ø 3.0	ø 3.2
PRESSURE SPRAY GUN	9350	9351	9352	9353	9354	9355	9356	9357

AIR GUNSA AZ1-HVLP-CONCEPT

SPARE PARTS

Ref.	Code	Description	Qty.
1	9370	AIR CAP SET	1.0mm - 2.0mm
1	9371	AIR CAP SET	2.5mm - 3.5mm
2+9	9380	FLUID NOZZLE + NEEDLE SET	1.0mm
2+9	9381	FLUID NOZZLE + NEEDLE SET	1.3mm
2+9	9382	FLUID NOZZLE + NEEDLE SET	1.5mm
2+9	9383	FLUID NOZZLE + NEEDLE SET	1.8mm
2+9	9384	FLUID NOZZLE + NEEDLE SET	2.0mm
2+9	9385	FLUID NOZZLE + NEEDLE SET	2.5mm
2+9	9386	FLUID NOZZLE + NEEDLE SET	3.0mm
2+9	9387	FLUID NOZZLE + NEEDLE SET	3.5mm
3	N/A	NOZZLE HOLDER
5	93842601	PATTERN ADJUSTMENT SET
6	9145B	FLUID NEEDLE ADJ. KNOB
7	9135	NEEDLE ADJ. GUIDE
8	9155B	NEEDLE SPRING
10	9134	NEEDLE PACKING NUT
11	9211	AIR VALVE SET
11-1	9156B	AIR VALVE SPRING
11-2	9146B	AIR VALVE
11-3	9148B	AIR VALVE SEAT
12	9133	TRIGGER STUD
13	9256	TRIGGER
14	93845531	AIR ADJUSTMENT SET
15	9324	FLUID NIPPLE G3/8"
16	9196	SCREW
16-1	9257	PLUG
17	9213	AIR NIPPLE G1/4"
19	9324	PAINT TUBE (OPT. FOR AZ1 HTE 2P)
C	9258B	PACKING SET	(3 pcs./1pk)
D	9259	SLIDE RING KIT	(10 pcs./1 pk)

FLEET APPLICATIONS - PRESSURE POTS

PC-18D 2 QUART PRESSURE POT

FEATURES

Max. Operating Pressure: 50.5 psi
Fluid Nipple: G 3/8“ (PF3/8)
Capacity: 2 qt
Tank: Aluminum
Temperature Range: 5~40°C / 41-104°F

Ref.	Code	Description
	6003B	PC-18D 2 QUART PRESSURE POT
1	94056350	FLUID JOINT
2	94055350	HANDLE
3	94057350	HANDLE JOINT
4	94003350	AIR RELEASE VALVE
5	94053350	LID
6	94900210	LID PACKING (2 pcs./1 pk.)
7	94001350	SUCTION PIPE
8	94000351	CONTAINER SET
9	94007350	SAFETY VALVE
9-1	94012350	PLUG
9-2	94011350	NUT
9-3	94010350	SAFETY VALVE SPRING
9-4	94009350	SAFETY VALVE SPRING SEAT
9-5	94008350	SAFETY VALVE BODY
10	94048400	PRESSURE GAUGE
11	94027350	JOINT
12	94049350	AIR REGULATOR BODY SET
13	96631012	O RING
14	94016350	SPRING
15	94017350	REGULATOR SEAT
16	94018350	GUIDE
17	94019350	DIAPHRAGM SET
18	94023350	DIAPHRAGM SET SPRING
19	94038350	SPRING HOLDER
20	94074350	CAP
21	94025350	NUT
22	94026350	KNOB
23	94058350	NUT
24	94904151	CHECK VALVE SET

• Air Nipple: G1/4" • Fluid Nipple: G1/4"

PET-10 2.5 GALLON PRESSURE POT

FEATURES

Heavy duty pressure pot features a removable stainless steel inner tank liner and stainless steel pick up tube for easy cleaning
Suitable for use with both solvent and waterborne materials using any ANEST IWATA pressure feed spray gun
Includes dual regulators for independent control of fluid and air pressures
Features standard 1/4" air inlet and 3/8" fluid inlet with a maximum operating pressure of 58 PSI

Technical
Max Operating Pressure	58 PSI
Air Inlet/Outlet Joint	G1/4"
Fluid Outlet Joint	G3/8"
Capacity	2.6 gal
Inner Tank Capacity	2.2 gal - Stainless Steel
Weight	24.25 lbs
Dimensions	12.2 × 12.2 × 22.2 in
Temperature Range	41–104°F / 5∼40°C

Ref.	Code	Description
	6315	PET-10 2 GALLON PRESSURE POT
1	04020000	MAIN BODY
2	04020010	LID ASSEMBLY
3	04020020	LID PACKING
4	04020020	HANDLE
6	04020030	EXHAUST VALVE
7	94020210	AIR INLET JOINT / OUTLET JOINT G1/4"
10	94015180	PRESSURE REGULATOR (FOR TANK)
22	04016390	SAFETY VALVE
24	04020040	FLUID OUTLET CONNECTING JOINT SUS 303
25	04016020	PRESSURE GAUGE
29	04020190	HANDLE BOLT
30	04020060	WASHER
31	04020070	THUMB NUT
32	04020220	C-SNAP RING
33	04020230	STUD
34	04020090	SUCTION PIPE SUS 303
39	04016310	AIR FLOW GUIDE
45	94020100	ADAPTER
46	94020110	ADAPTER
47	94020120	ADAPTER
48	04020130	PRESSURE REGULATOR (FOR GUN)
49	04020140	FLUID OUTLET JOINT SUS 303 3/8"
50	04020160	NUT
51	04020170	INNER TANK SUS 304

ACCESSORIES

PREMIUM MICRO-FABRIC SPRAY SUIT by FBS ProPlus Gard

The ANEST IWATA Premium Micro-Fabric Spray Suit is so comfortable you’ll forget it’s on. Micro coated material to provide a barrier against solvent and dust particles, yet lightweight and breathable for those hot summer days.

This spray suit provides anti-static, chemical protection and is well suited for work in paint shops, chemical industries, and many other related fields.

FEATURES

Micro coated fabric to block particles from penetration
Breathable, lightweight material
Comfortable to wear all day in any temperature
Anti-static reduces static build-up and prevents the risk of static discharge
Machine washable - durable material and construction allows for reuse
Two-way zipper - zips from torso and chin for comfort and convenience
Scuba style hood for added protection and coverage
Deep back pocket keeps accessible items secure while working
Elastic wrist, ankle, and face protection from particles
Elastic waist for optimal fit

ORDER INFORMATION - PREMIUM MICRO-FABRIC SPRAY SUIT

Ref.	Description
AIUS60501	M Body Height: 5'6"–5'9"
AIUS60502	L Body Height: 5'9"–6'0"
AIUS60503	XL Body Height: 6'0"–6'2"
AIUS60504	XXL Body Height: 6'2"–6'4"

EU Standard: Category III/EN 13034/Type 6

ANEST IWATA MULTI SPRAYER

Whether it’s solvent or water-based chemicals, the ANEST IWATA Multi Sprayer will handle your shop’s most aggressive chemicals. It’s combination of durable technical plastics and strong steel cylinder pump rod makes this sprayer less likely to deteriorate and contaminate paint surfaces.

FEATURES

Works with 200+ chemicals including acetones, lacquer thinners, pre-cleans and more!
Manual pump or compressed air charge (1/4" connector)
Strong steel pump cylinder rod
Fine mist to jet spray patterns
FPV sealing materials
FPE technical plastics
Not for use with acid-based products

ORDER INFORMATION - MULTI SPRAYER

Ref.	Description
AIUS50300	ANEST IWATA MULTI SPRAYER (Single Unit)
AIUS50300-C	ANEST IWATA MULTI SPRAYER (Case Pack, Qty 6)

ANEST IWATA MK-5 PROFESSIONAL SPRAY GUN MAINTENANCE KIT

Keep your spray guns in tip top shape with the ANEST IWATA MK-5 Professional Spray Gun Maintenance Kit. It offers a variety of indispensable tools when it comes to cleaning and maintaining your spray guns.

ORDER INFORMATION - MK-5
