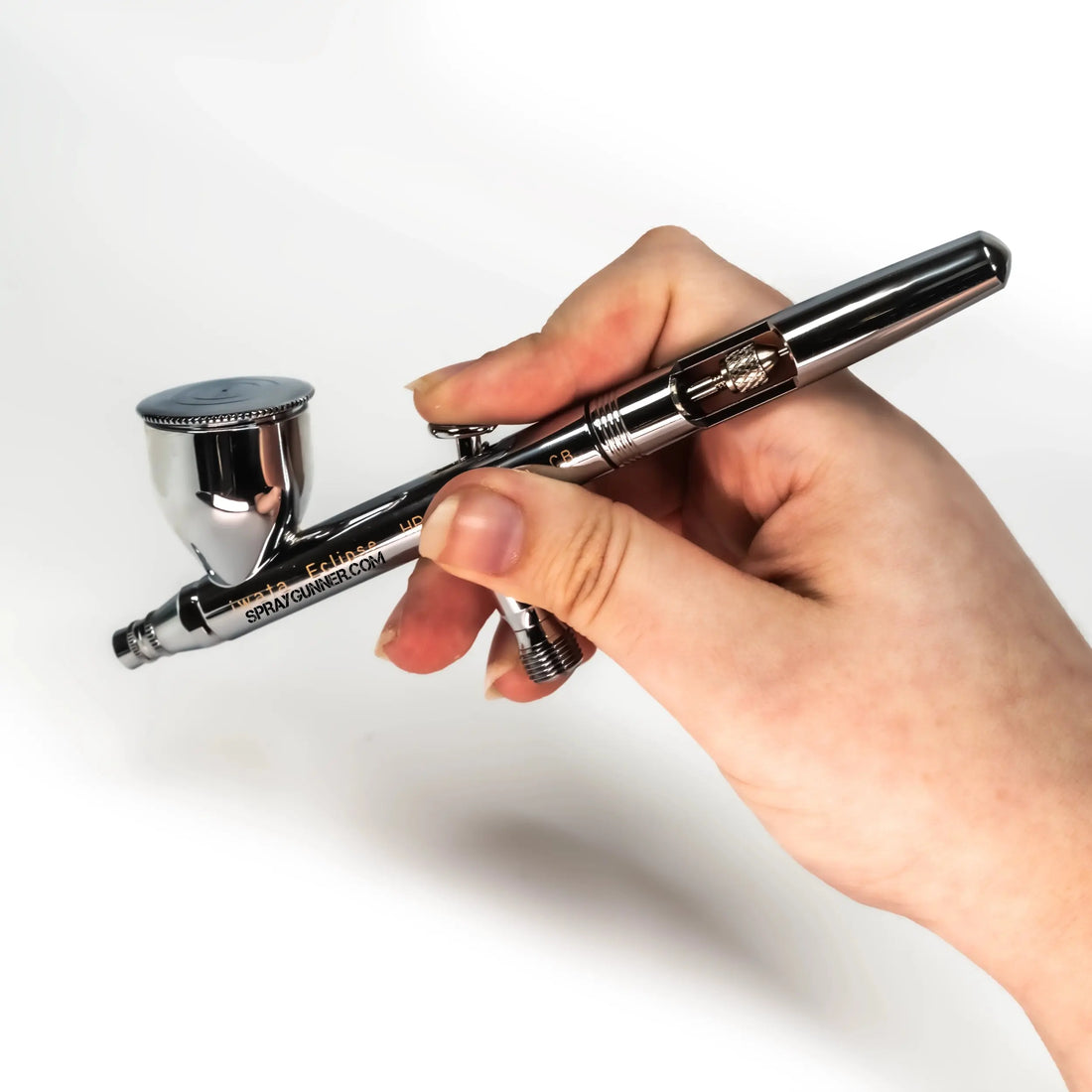

Is the Iwata Eclipse HP-CS Right for You?
The Iwata Eclipse HP-CS is worth considering if you want one airbrush for basecoats, shading and controlled detail on smaller projects. Its gravity-feed design and dual-action trigger suit painters who want to adjust paint delivery as they work.
For model builders, miniature painters and illustrators, the buying question is straightforward: will this airbrush handle your regular painting tasks without making your setup unnecessarily complicated?
This guide explains its features, practical limitations and maintenance needs so you can decide.
What Makes the Eclipse HP-CS Versatile?
Dual-Action Control
Press the trigger down for air, then pull it back to introduce paint. Learning to coordinate those movements helps you control how much paint reaches the surface.
A small trigger movement is useful for gradual shading. More paint delivery supports coverage. The result also depends on paint preparation, pressure, distance and hand movement—not the trigger alone.
Gravity-Feed Paint Cup
The cup sits above the airbrush body. This arrangement is convenient when you work with small batches of paint or change colors frequently.
Gravity feed does not prevent clogging. Dried paint, unsuitable paint preparation and residue in the nozzle can still interrupt spraying.
A 0.35 mm Needle and Nozzle
The standard HP-CS uses a 0.35 mm needle and nozzle combination. This makes it a practical middle-ground configuration for varied painting tasks rather than a dedicated tool for only the smallest details.
Check the paint manufacturer’s airbrushing instructions before spraying. Nozzle size alone does not tell you whether a primer, metallic or other coating will spray successfully.
Compression-Fit Nozzle
The Eclipse uses a compression-fit nozzle, which avoids threading the small nozzle itself into the body. That is a useful feature when cleaning and reassembling the head. The quick-flush cutaway handle provides access to the needle chucking nut.
These features make maintenance more accessible, but the needle and nozzle still require careful handling.
Painting Projects to Consider
Models and Miniatures
Consider the HP-CS for basecoating, shading, gradients and camouflage. For small details, practice on a spare model or test surface before moving to your finished piece.
It does not replace every brush-painting task. Eyes, tiny markings and sharply defined details may still be easier to finish with a paintbrush.
Illustration and Custom Artwork
Soft transitions and layered color are useful applications for an airbrush. The HP-CS can fit this workflow when you want to move between controlled lines and broader shading.
Masking, surface preparation and paint choice remain part of the process. Buying an airbrush alone will not produce a clean edge or a smooth finish.
Automotive Graphics
An HP-CS can be considered for small graphics and detail work with compatible materials. For broad coverage on vehicle panels, choose equipment designed for that area and coating.
Before spraying automotive products, check their technical and safety instructions, including ventilation and respiratory protection requirements.
When Another Iwata Configuration May Fit Better
Think about how you paint before choosing a model:
- Frequent color changes and small paint batches: A gravity-feed configuration may suit your workflow.
- Longer sessions using larger quantities: A bottle-fed model may reduce interruptions for refilling.
- A different view over the airbrush body: A side-feed configuration may be worth considering.
- Primarily broad coverage: Look at equipment designed for higher paint delivery and a wider spray area.
You can compare Iwata airbrush models for detail and everyday painting by feed style, paint capacity and intended use before settling on the HP-CS.
For a smaller paint cup or a different feed layout, compare the other models in the Iwata Eclipse series.
The goal is to choose a configuration that fits your work, rather than paying for features you will rarely use.
Setting Up Your HP-CS
Air Pressure and Compressor Choice
Iwata lists 25–35 PSI as the HP-CS’s optimal working pressure. Treat that as manufacturer guidance, then follow your paint’s instructions and test the spray on a spare surface.
Choose a compressor that can maintain the airflow you need while spraying. Check pressure with air flowing through the airbrush, because the gauge reading can change when the trigger is pressed.
Also confirm that your hose, fittings and any adapters match both the airbrush and compressor. If you are assembling a complete setup, the SprayGunner airbrush buying guide can help you work through the equipment choices.
Paint Preparation
Use the reducer and preparation method recommended for your paint. “Airbrush-ready” does not guarantee that every product will behave the same way in every setup.
Test a small amount first. If the spray is uneven, check paint preparation, tip buildup and pressure before assuming the airbrush needs replacement parts.
Avoid relying on a universal thinning ratio. Different paint systems and colors can require different preparation.
Safe Spraying
Plan your workspace before adding paint to the cup. Read the paint and cleaner’s Safety Data Sheets and follow their ventilation, protective equipment and handling requirements.
Water-based paint still produces airborne spray. A cleaning pot can help contain flushing, but it does not replace appropriate ventilation or respiratory protection.
Cleaning and Replacement Parts
Clean out paint before it dries inside the airbrush. Between colors, remove the remaining paint and flush with a compatible cleaner. At the end of a session, follow the Eclipse manual’s cleaning instructions.
Handle the needle gently and avoid forcing it through resistance. If flushing does not restore normal spraying, inspect and clean the relevant components according to the manual rather than repeatedly increasing pressure.
When ordering replacement parts for Iwata airbrushes, confirm the HP-CS model and the manufacturer’s part number. Similar-looking parts are not automatically interchangeable. Check availability on the individual listing before ordering.
Questions Before Buying an Eclipse HP-CS
Is the HP-CS Suitable for a Beginner?
It can be a suitable first airbrush if you are willing to learn dual-action control and regular cleaning. Include the compressor, hose, paint, cleaning supplies and safe workspace in your budget.
Can It Spray Thicker Paint?
Compatibility depends on the paint formulation, particle size and preparation instructions. Do not assume a coating will spray unreduced because the airbrush has a 0.35 mm nozzle.
Is It Only for Fine Detail?
No. It is a versatile configuration for varied painting tasks. Your spray pattern depends on trigger movement, distance, pressure and paint preparation.
How Often Should I Clean It?
Flush between colors as needed and clean after each painting session. Address dried paint or interrupted spraying promptly, following the manufacturer’s maintenance instructions.
Check the HP-CS Against Your Setup
Before ordering, check what the selected package includes and what you already own. A compatible hose, suitable air supply and cleaning supplies matter as much as the airbrush itself.
See the Iwata Eclipse HP-CS airbrush specifications and package options. If you are unsure whether it fits your current equipment, ask SprayGunner about HP-CS setup compatibility. Include your compressor model and the paint you plan to spray so the question can be addressed before you buy.
