Vallejo Mecha Color: Mecha Primer Sand (200ml)

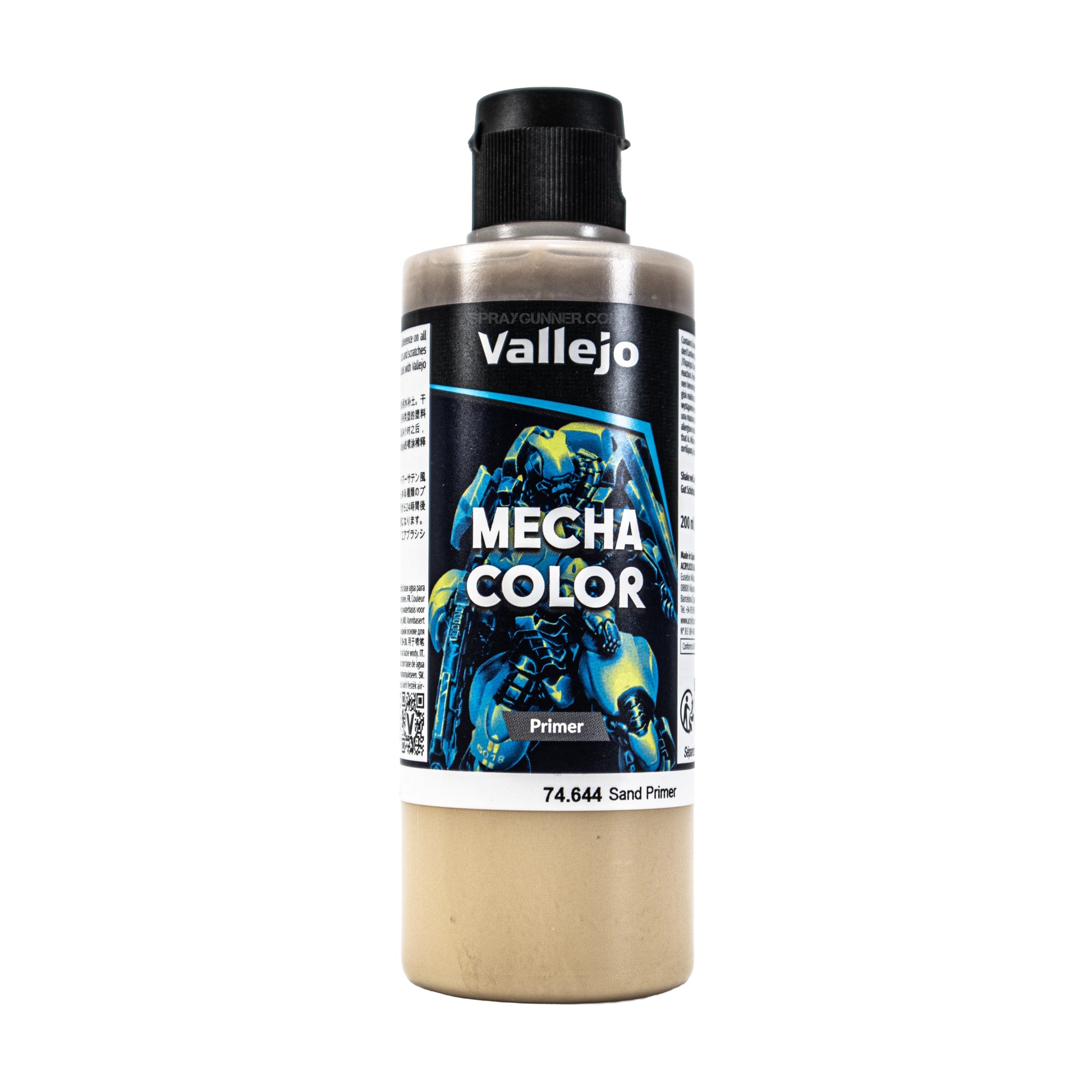

Vallejo 74.644 Mecha Primer Sand — Airbrush Primer, 200ml

The Ultimate Foundation for Gunpla & Action Figures

In the world of Mecha and Gunpla modeling, a paint job is only as good as its foundation. Vallejo 74.644 Mecha Primer Sand is a high-adhesion airbrush primer designed for the high-friction world of articulated models, Gunpla kits, action figures, resin parts, and custom hobby builds.

Whether you are working on a Master Grade Gundam, a 1:100 or 1:144 scale kit, a custom action figure, or a desert armor project, this warm sand primer helps create a durable base coat that supports paint adhesion, smooth coverage, and long-lasting finish quality.

Why the Mecha Line is Different

Standard primers can be too brittle or too thick for articulated kits, especially around joints, moving parts, and sharp mechanical details. The Vallejo 74.644 formula is designed to bond to plastic, ABS, resin, and metal while preserving fine surface detail.

This makes it useful for Gunpla inner frames, armor panels, action figure parts, mechanical components, and other models that may be handled, posed, masked, weathered, or painted in multiple layers.

Beyond the Label: Versatility & Creative Uses

Although named Sand, this primer works as more than a simple beige base. Its warm mid-tone makes it useful for several modeling workflows:

• Desert camouflage: A strong starting point for tan, earth, sand, and Middle East armor colors.
• Gunpla inner frames: Works under metallic colors to create warmer depth for gold, brass, bronze, or worn metal effects.
• Weathering base: Useful under darker topcoats when creating chipping, scratches, and worn paint effects.
• Armor modeling: Works as a ready-made desert base for tanks, vehicles, and sci-fi armor subjects.
• Terrain and dioramas: Helpful for ruins, machinery, industrial parts, and post-apocalyptic surfaces.

For armor and vehicle modelers, Sand acts as a ready-made desert base: primed surfaces on 1:35 armor kits can already read as bleached desert earth before a separate topcoat is added. Combined with filters, washes, dust effects, or chipping techniques, the warm primer tone can create natural variation that flat paint over grey primer may not achieve as easily.

Pro-Tips from the Studio

To get the most out of your 200ml bottle of Vallejo 74.644 Mecha Primer Sand, follow a simple application workflow:

1. Clean parts with isopropyl alcohol to remove mold release agents, oils, or sanding dust.
2. Set your airbrush to around 20 PSI with a 0.3mm or 0.4mm needle.
3. Spray from about 20cm away for smooth, even coverage.
4. Apply 2 thin coats instead of one heavy coat.
5. Allow 30–60 minutes before topcoating, or longer before heavy masking.

The 20-20 Rule: Spray at about 20 PSI from a distance of around 20cm for a smooth satin primer layer. For tighter inner-frame areas, reduce pressure slightly and work in lighter passes to avoid pooling around joint recesses.

No thinning required: Vallejo Mecha Primer is airbrush-ready, but a small amount of flow improver can help reduce tip dry in warm or dry conditions.

Curing time: It may become touch-dry quickly, but for stronger durability, allow extra curing time before masking, posing, or handling high-friction parts.

From the SprayGunner Team

Sand is our go-to recommendation when someone asks about priming Gunpla inner frames before final assembly. The warm tone reads as a natural unpainted metal base that shows through at joint gaps and under wear effects. You are not just priming — you are building in the first layer of visual depth before the final paint color goes on.

If you are working on desert or Middle East armor, Sand also pulls double duty as a primer and first base coat in a single pass, which can reduce paint layers and save time. For anything that will end up white, very pale, or highly saturated, choose Ivory instead.

Related Vallejo Mecha Primers

Also available in the Mecha Primer range: Mecha Primer Grey 74.641, Mecha Primer Black 74.642, Mecha Primer Ivory 74.643, and Mecha Primer White 73.640.

Technical Specifications

Frequently Asked Questions — Vallejo Mecha Primer Sand 74.644

What surfaces does Vallejo Mecha Primer Sand work on?

Mecha Primer Sand bonds to styrene plastic, ABS, resin, metal, and photo-etch parts. It is especially useful for Gunpla and action figures because those models often include joints, friction points, and moving parts where ordinary primer can chip or peel.

What PSI and needle size should I use?

For general airbrushing, use around 20 PSI with a 0.3mm or 0.4mm needle. For tight inner-frame areas on 1:100 or 1:144 scale kits, lower pressure slightly and apply light coats to avoid pooling around joint recesses.

How does Sand compare to the other Mecha Primer colors?

Sand 74.644 is a warm mid-tone that works well for desert camouflage, inner frames, weathering bases, and earth-tone builds. Grey 74.641 is a neutral general-purpose primer, Black 74.642 builds stronger contrast and supports chipping or salt effects, and Ivory 74.643 gives a lighter base for bright colors, pale schemes, and white finishes.

Can I apply Mecha Color paints directly over this primer?

Yes. Vallejo Mecha Color paints are designed to work over Mecha Primer. Other water-based acrylics, lacquers, and enamels can also be applied once the primer has fully cured.

Can Mecha Primer Sand be brush applied?

It is formulated for airbrushing, but brush application can work for small areas, corrections, and touch-ups. Use thin coats with a flat synthetic brush and expect slightly more texture than airbrushed coverage.
