Sagola Mini Xtreme Gravity Gun Mini TECH Aircap

Sagola Mini Xtreme Gravity Gun Mini TECH Aircap

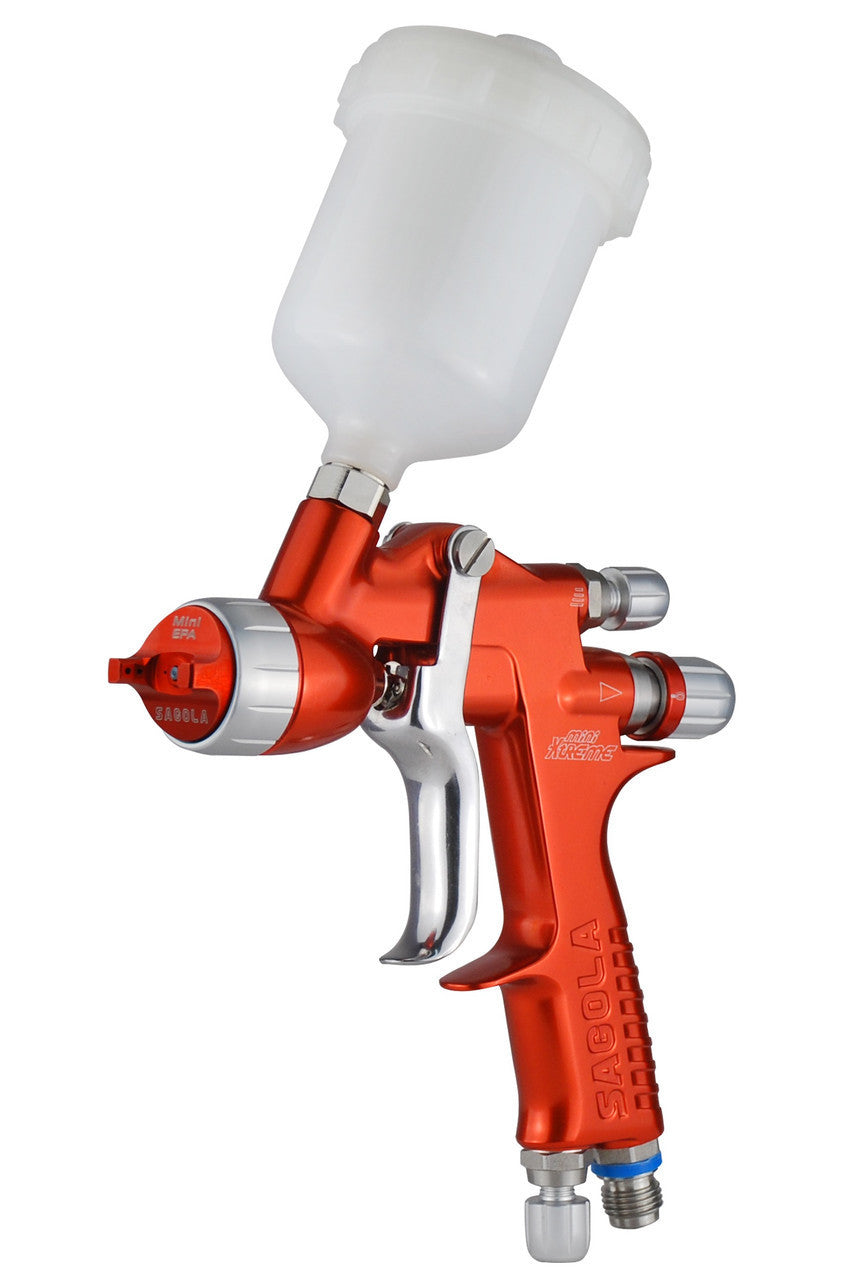

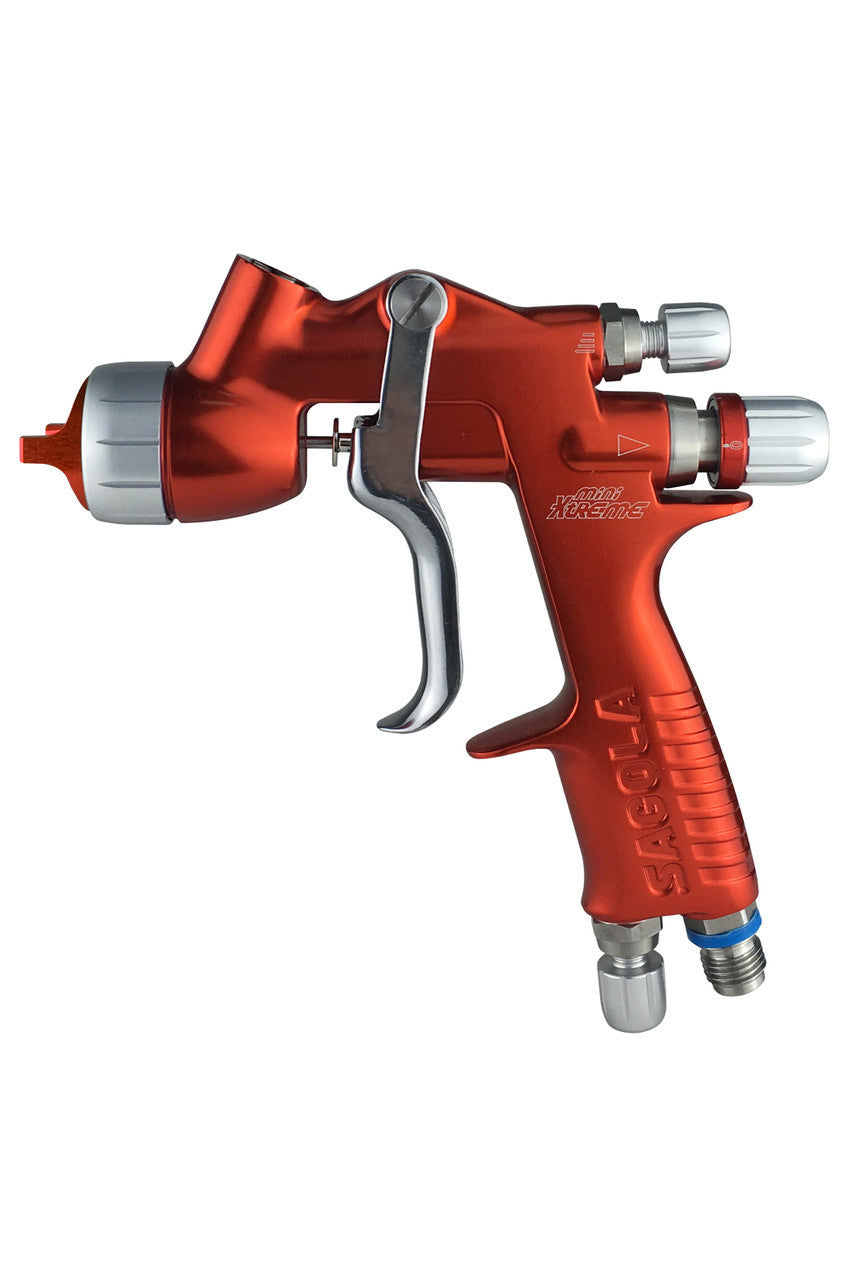

The Sagola Mini Xtreme Spray Gun includes all the functionality of the Sagola 4600 Xtreme in a lightweight, compact gun - ideal for spot repair.

Small but powerful
Light, ergonomic, strong and adapted to the latest technologies. The Sagola 4600 Mini Xtreme reduces mist and saves paint.

All the features of high-end finishes gun in a compact size

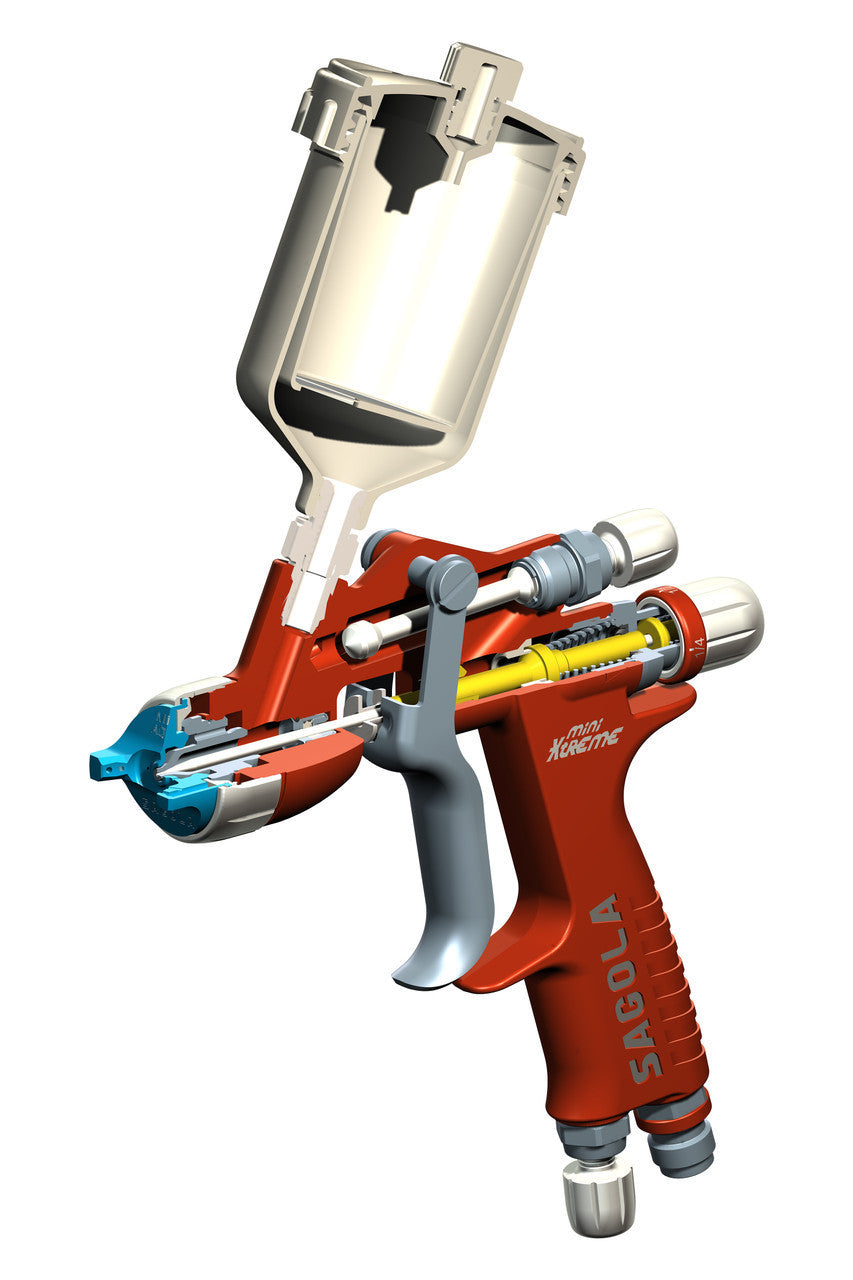

Forged anodized aluminium body, "soft flow" air valve without pressure drops, interchangeable aluminium aircaps, product regulator floating ring, metal to metal technology, one single part automatic packing gland, stainless steel ergonomic and soft trigger.

Metal on Metal Contact
No gaskets, rubber or plastic parts on product area. Designed without air diffusers. Extremely easy to maintain and clean.

This Sagola Mini Xtreme Gun is supplied with a 0.60mm Needle and Nozzle and a MINI TECH Conventional (CA) Aircap which is Ideal for express drying clearcoat and one coat systems.

Needle and Nozzle Size: 0.60 (0.60mm) or 1.0 mm
DVR Aircap Type: Mini TECH
Specifications
Model: Sagola Mini Xtreme
Cup Capacity: 125ml (4.23fl oz) or 500ml (16.9fl oz)
Cup Type: Removable Anti-Drip System
Air Inlet Couplings: 6.35mm (1/4") Male BSP
Paint Filter: 100 mesh
Needle & Nozzle Size: 0.60 (0.60mm)
DVR Aircap Type: Mini TECH
Weight with Supplied Cup: 125ml Cup: 445.5g (0.98lbs), 500ml Cup: 552.75g (1.22lbs)
Weight without Cup: 365g (0.80lbs)
Dimensions without Cup (W x D x H): 156.4 x 18 x 158.8mm (6.16 x 0.71 x 6.25")
Sound Pressure Level (Average): 80 dB
Compliance: ATEX II 2G T60°C X (Directive 94/9/CE)

In the box:

1. Aircap, needle & nozzle kit (supplied fitted)
2. 125ml or 500ml (4.23 - 16.9fl oz) Reusable Plastic Gravity Cup with Product Filter
3. Wrench for removing and fitting the nozzle and all servicing needs
4. Colour Code Identifiers perfect for identifying guns when there are multiple painters (x3)
5. Cleaning Brush
6. Key Assembly for changing the air valve
