By NO-NAME brand

NO-NAME Paint Drying Rack

$150.00 USD
$150.00 USD $150.00 USD
Shipping calculated at checkout.
Brand: NO-NAME brand
Availability: In stock
SKU: NN-DR1
$150.00 USD
$150.00 USD $150.00 USD
NO-NAME Paint Drying Equipment

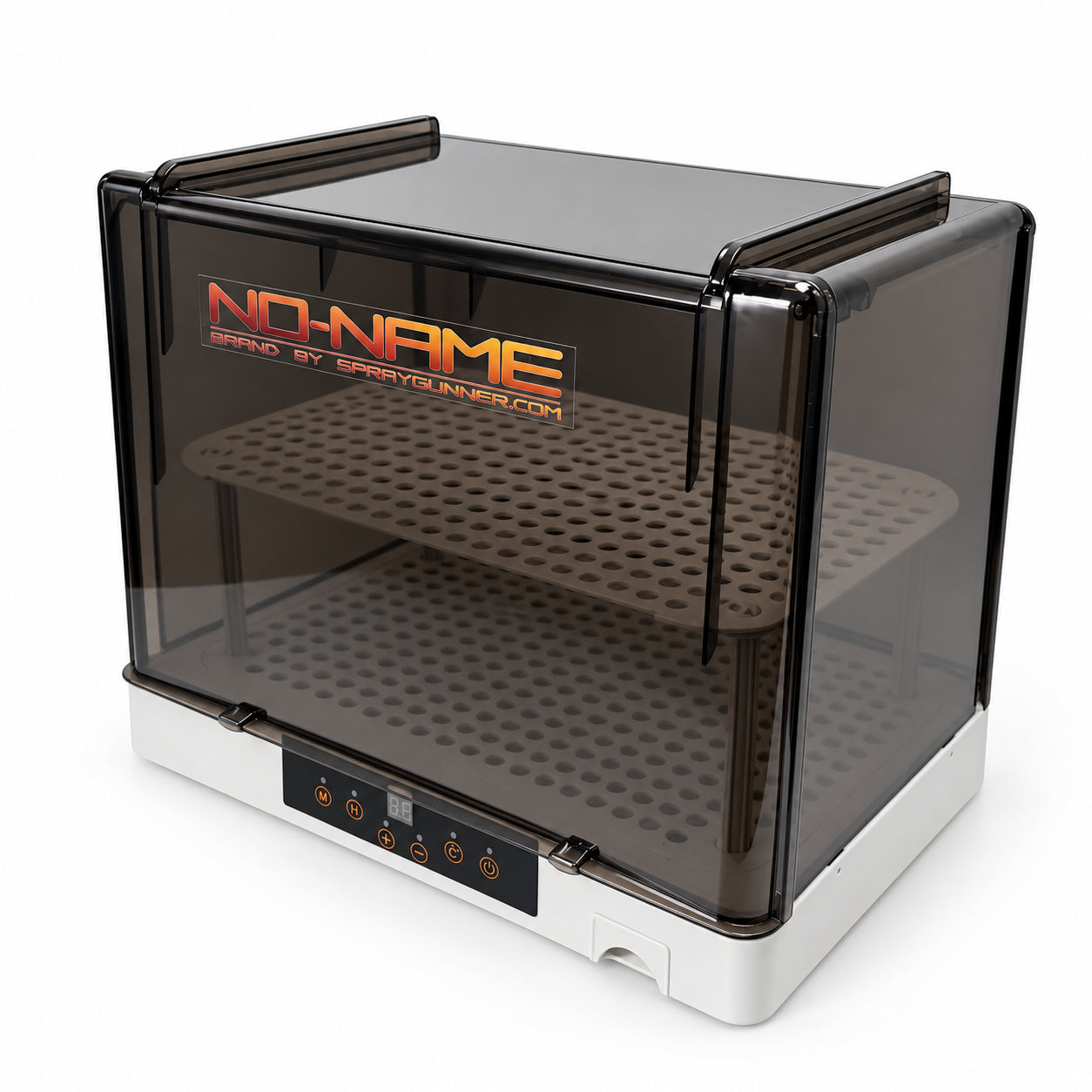

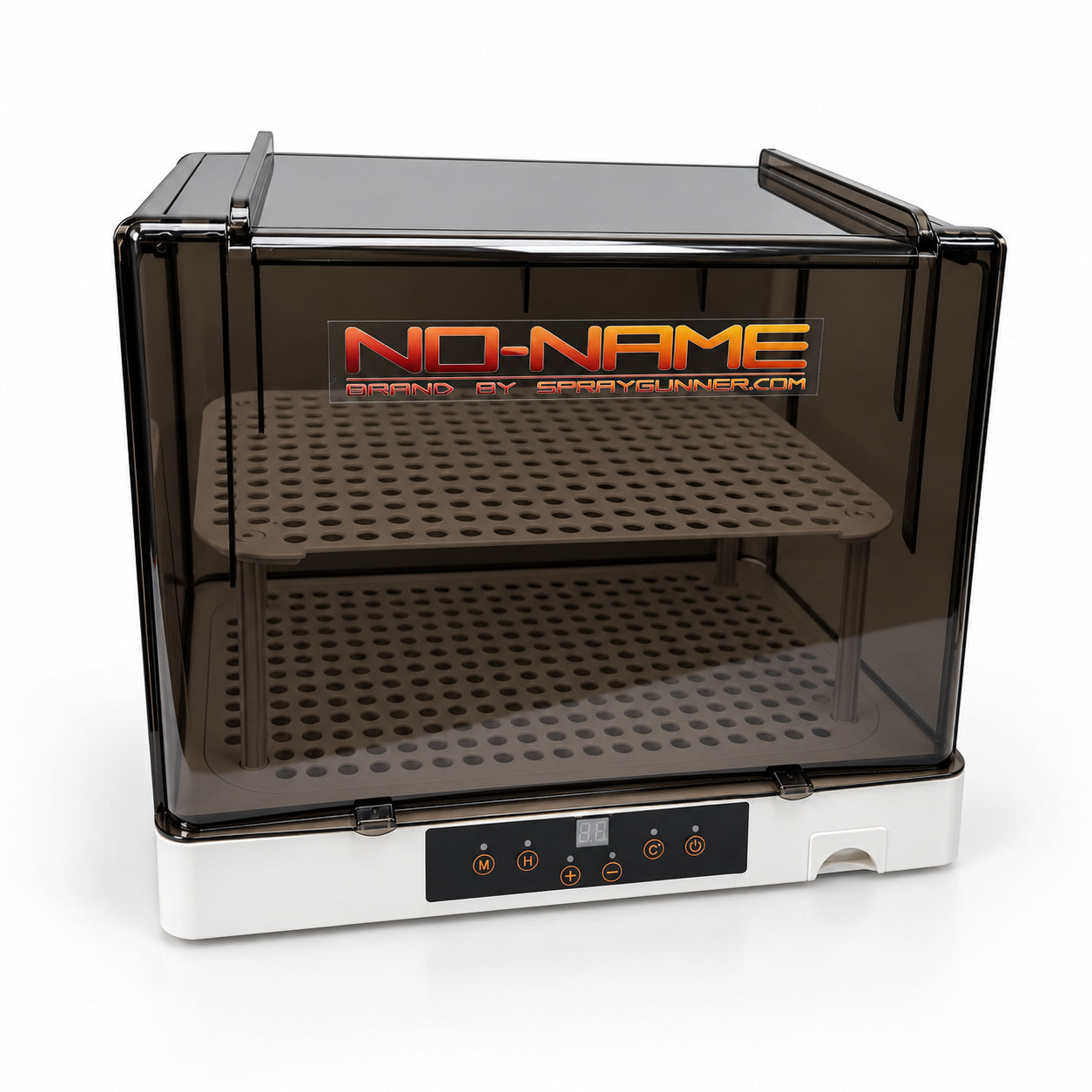

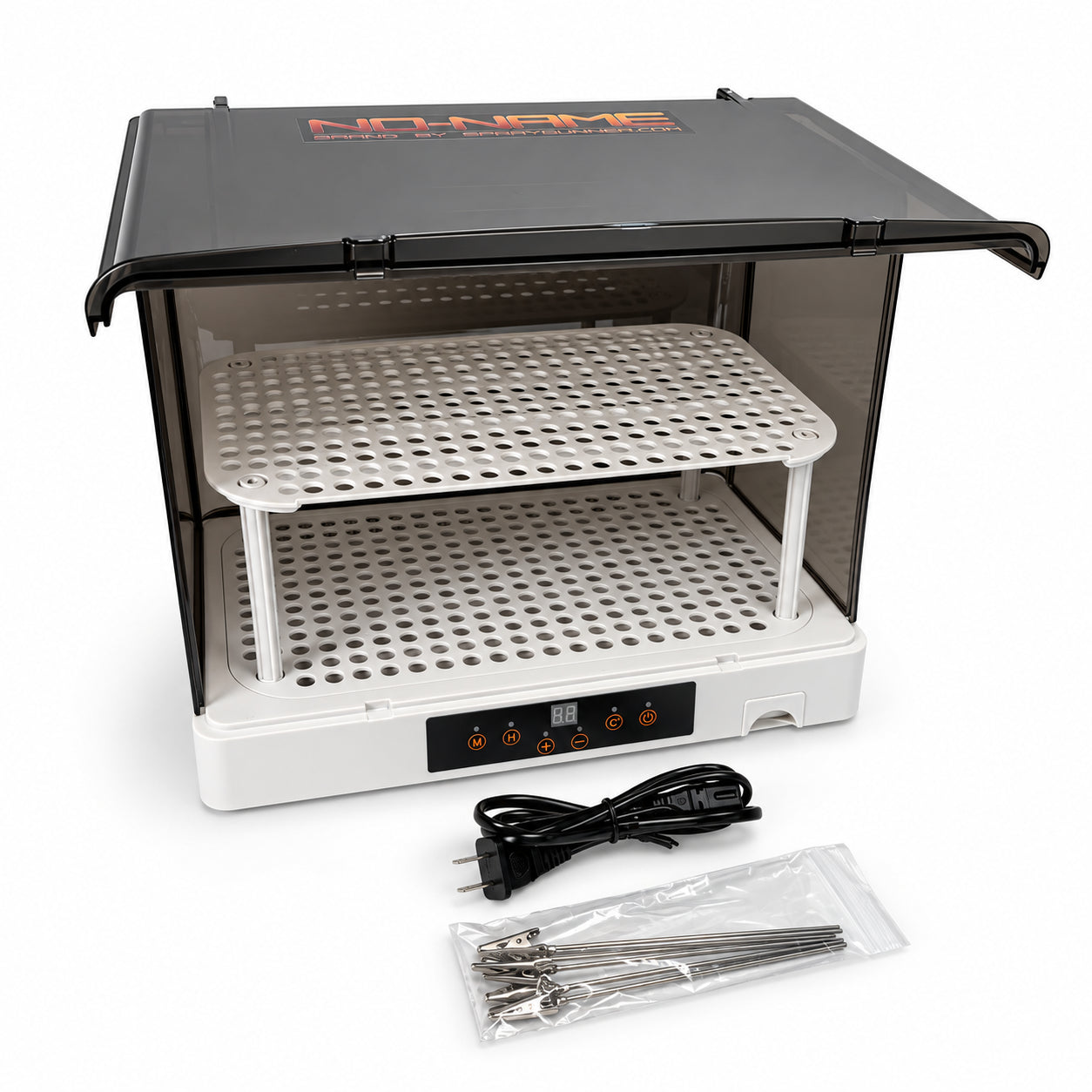

NN-DR1 Paint Drying Cabinet

The NN-DR1 Paint Drying Cabinet provides a controlled drying space for painted models, parts, miniatures, and hobby projects. Adjustable temperature and timer controls allow you to configure the drying environment based on the paint or coating being used, while the removable double-layer rack helps maximize available drying space.

Controlled Drying for Painted Models & Parts

The NN-DR1 combines adjustable heat, timed operation, and a compact enclosed workspace to provide a dedicated area for drying painted components.

The cabinet can be configured with either a single drying level or the included double-layer drying rack, making it suitable for different project sizes and quantities. Its detachable components and foldable construction also make setup, cleaning, and storage more convenient.

Key Features

Adjustable Temperature Control the drying temperature up to a maximum of 60°C.
Adjustable Drying Time Set the operating time according to the paint, coating, or project being dried.

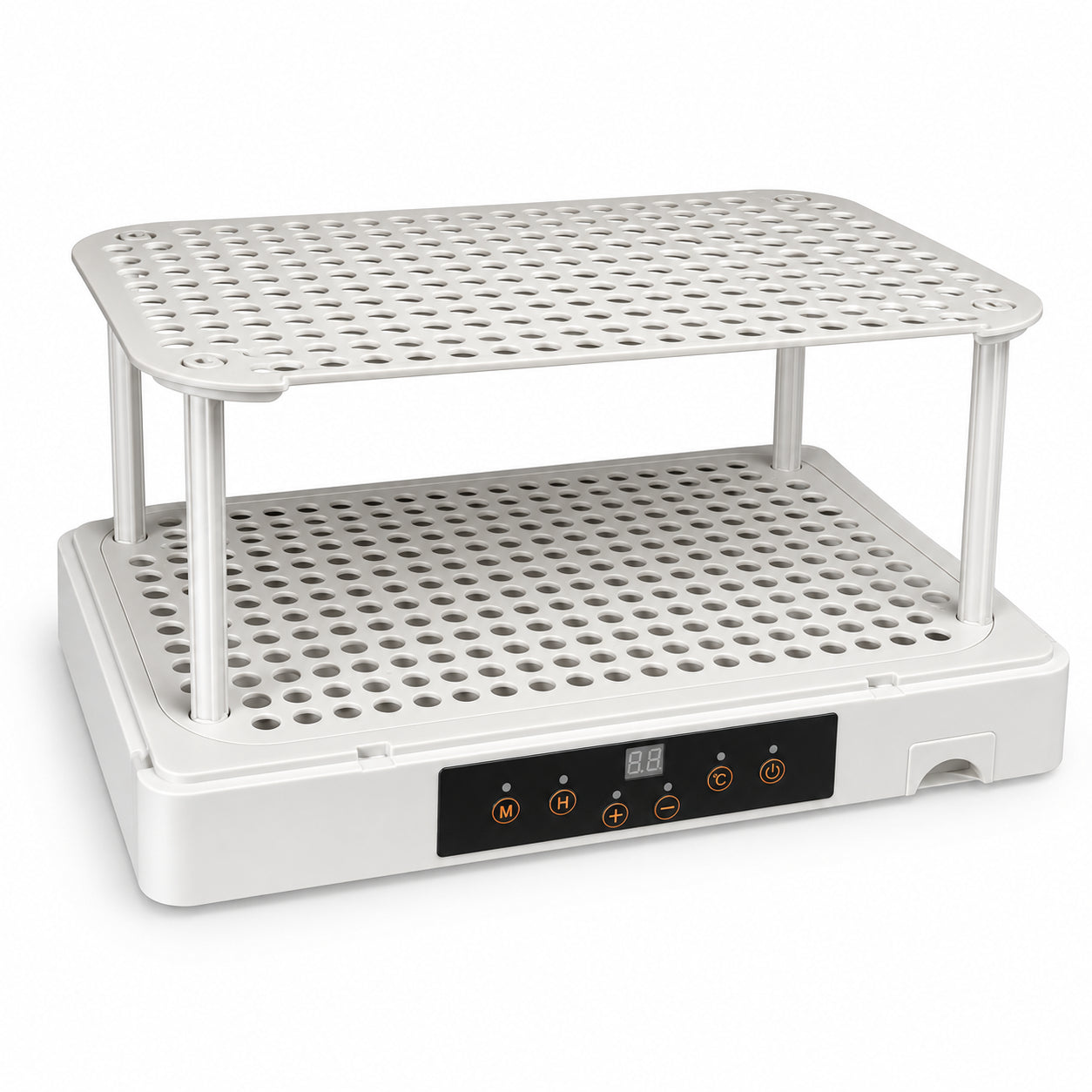

Double-Layer Drying Rack A detachable second rack increases usable drying space for multiple painted parts.
Flexible Rack Configuration Use either a single-layer or double-layer setup depending on the height and size of your project.
Foldable Design The cabinet folds down to a more compact size when it needs to be stored.
Detachable Drip Tray A removable drip tray helps make routine cleaning and maintenance easier.
Solvent-Resistant Plastic Constructed using solvent-resistant plastic according to the product specifications.
Easy Assembly Removable racks, supports, housing, and cover provide a straightforward assembly system.

Technical Specifications

SKU NN-DR1
Product Type Paint Drying Cabinet
Voltage 100–110V
Power 250 W
Maximum Temperature 60°C / 140°F
Time Adjustment 0.1–6 hours
Unfolded Size 40 × 25.5 × 33.5 cm
Folded Size 40 × 27.5 × 12.5 cm
Water Collection Tray 50 mL
Net Weight 2.7 kg

Voltage: This version of the NN-DR1 is rated for 100–110V. Confirm compatibility with your local electrical supply before use.

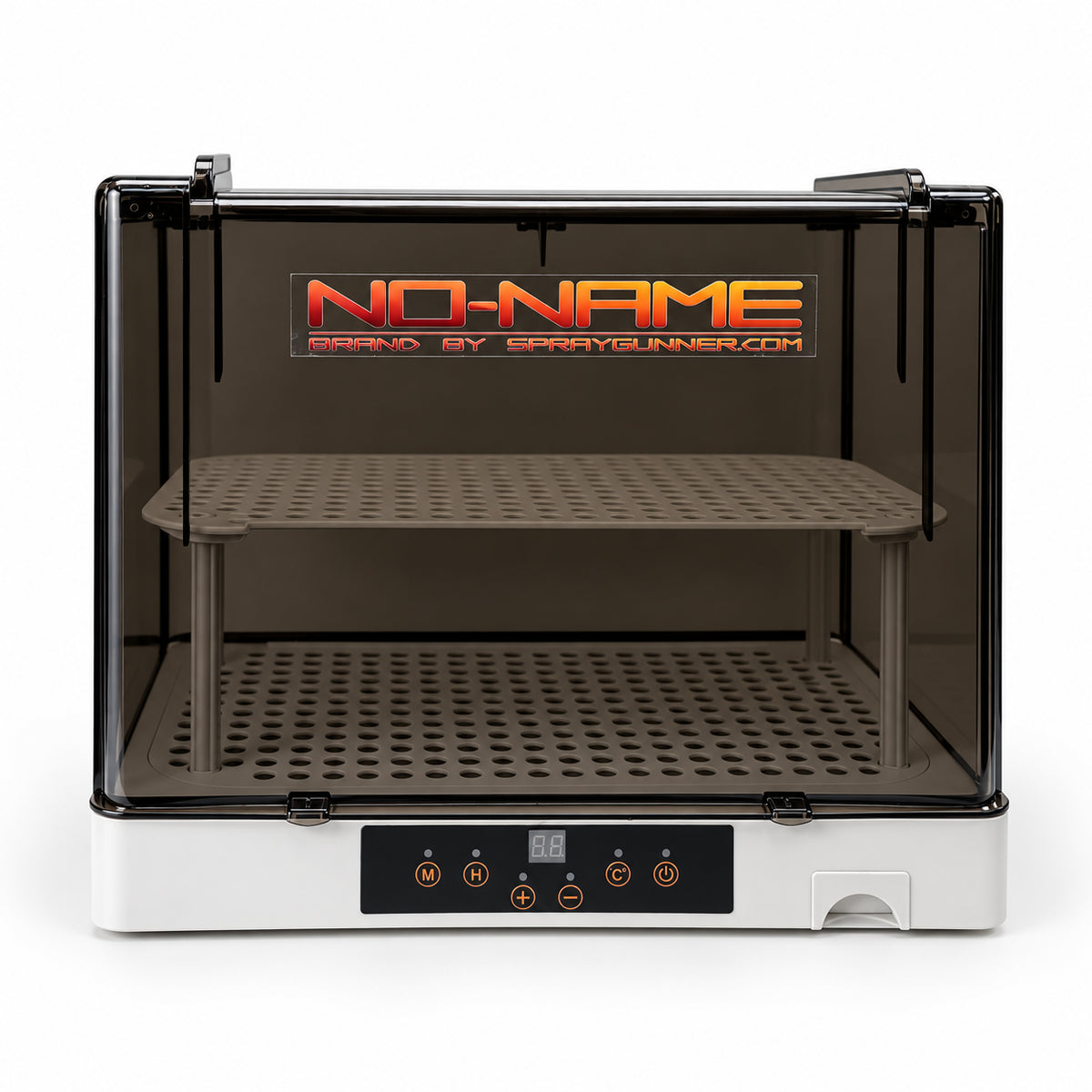

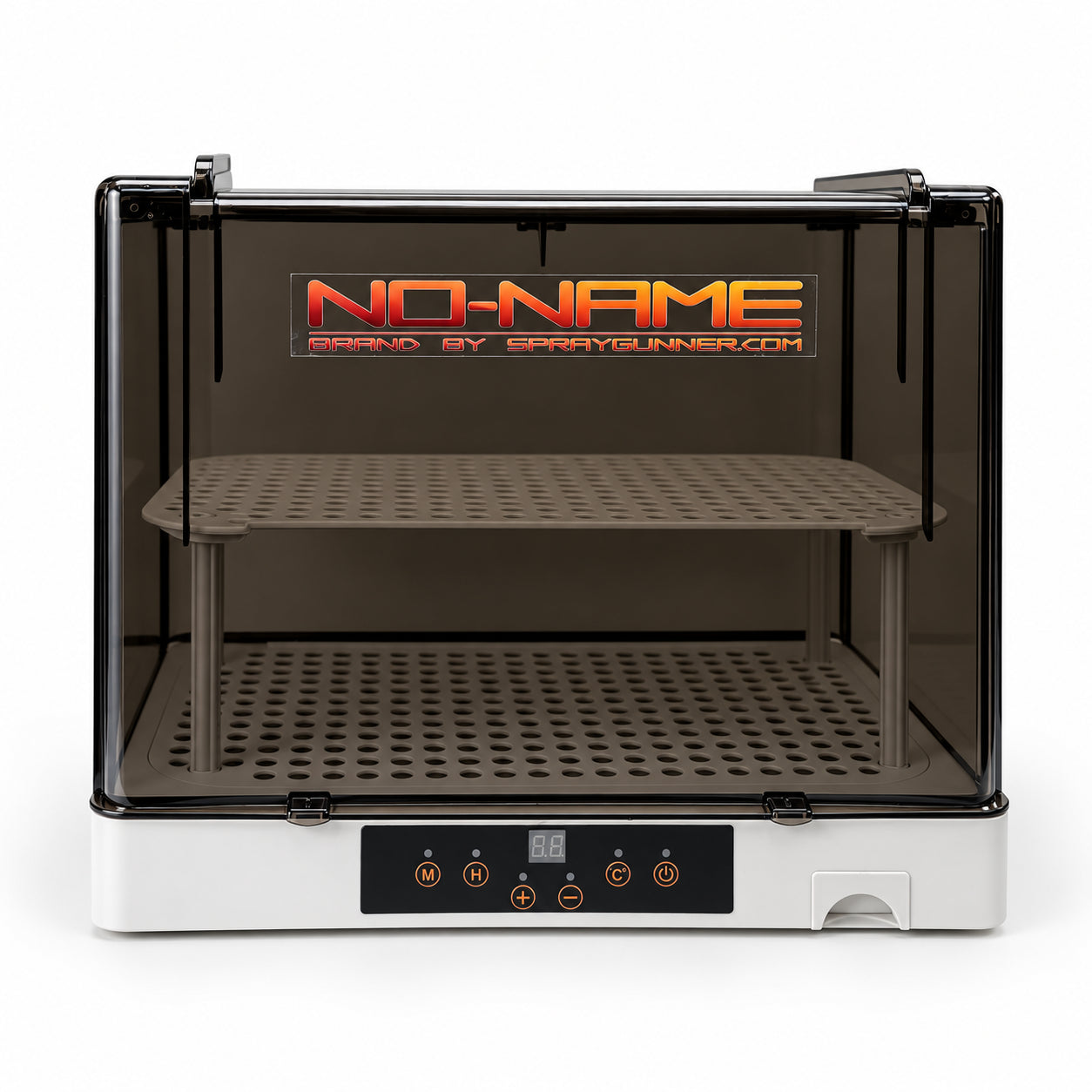

Single-Layer or Double-Layer Drying

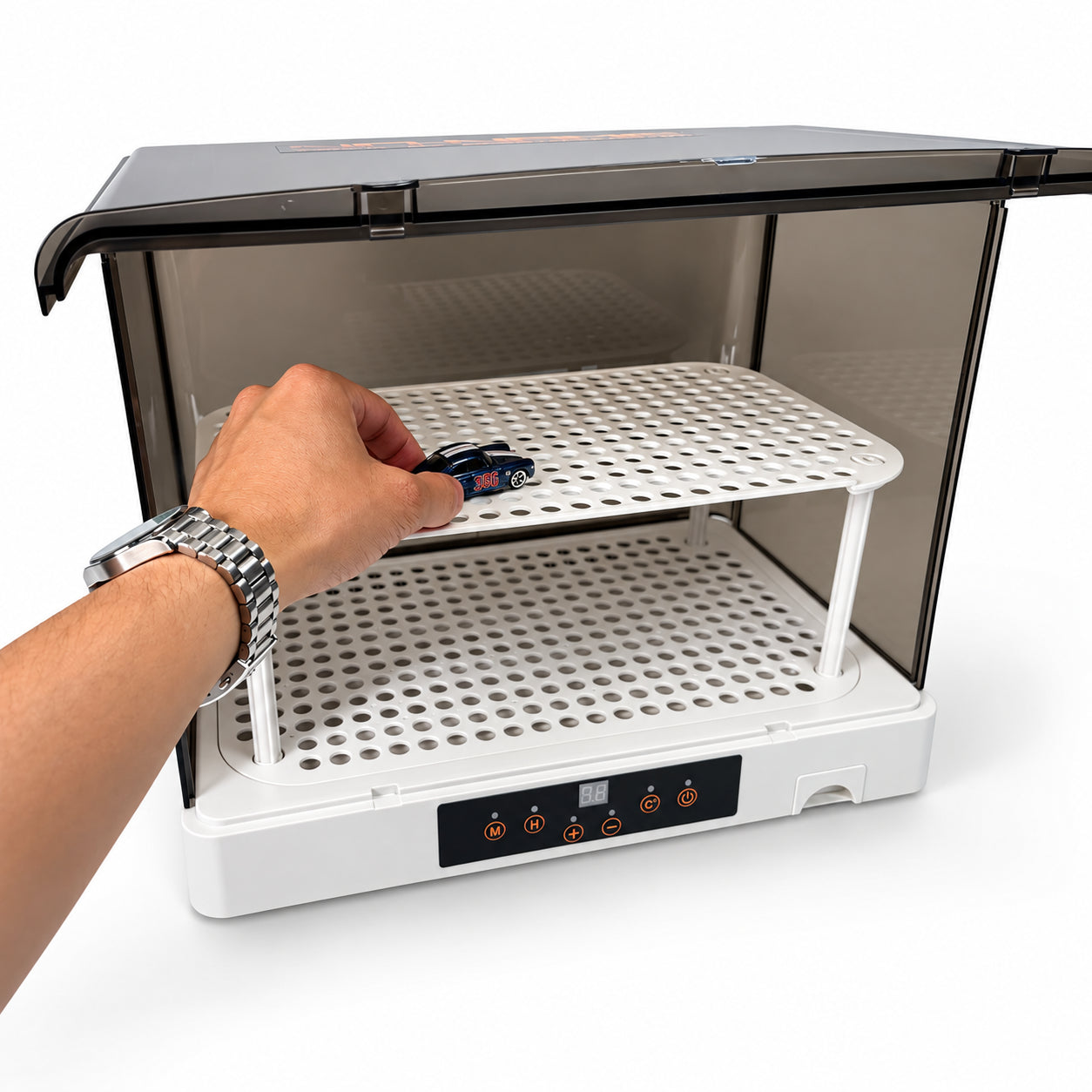

The NN-DR1 can be arranged to accommodate different project sizes. Taller items can be positioned using the lower drying level, while the removable upper rack can be installed when additional drying space is needed.

The double-layer drying rack is particularly useful when drying several smaller painted parts, scale-model components, miniature pieces, or similar hobby projects at the same time.

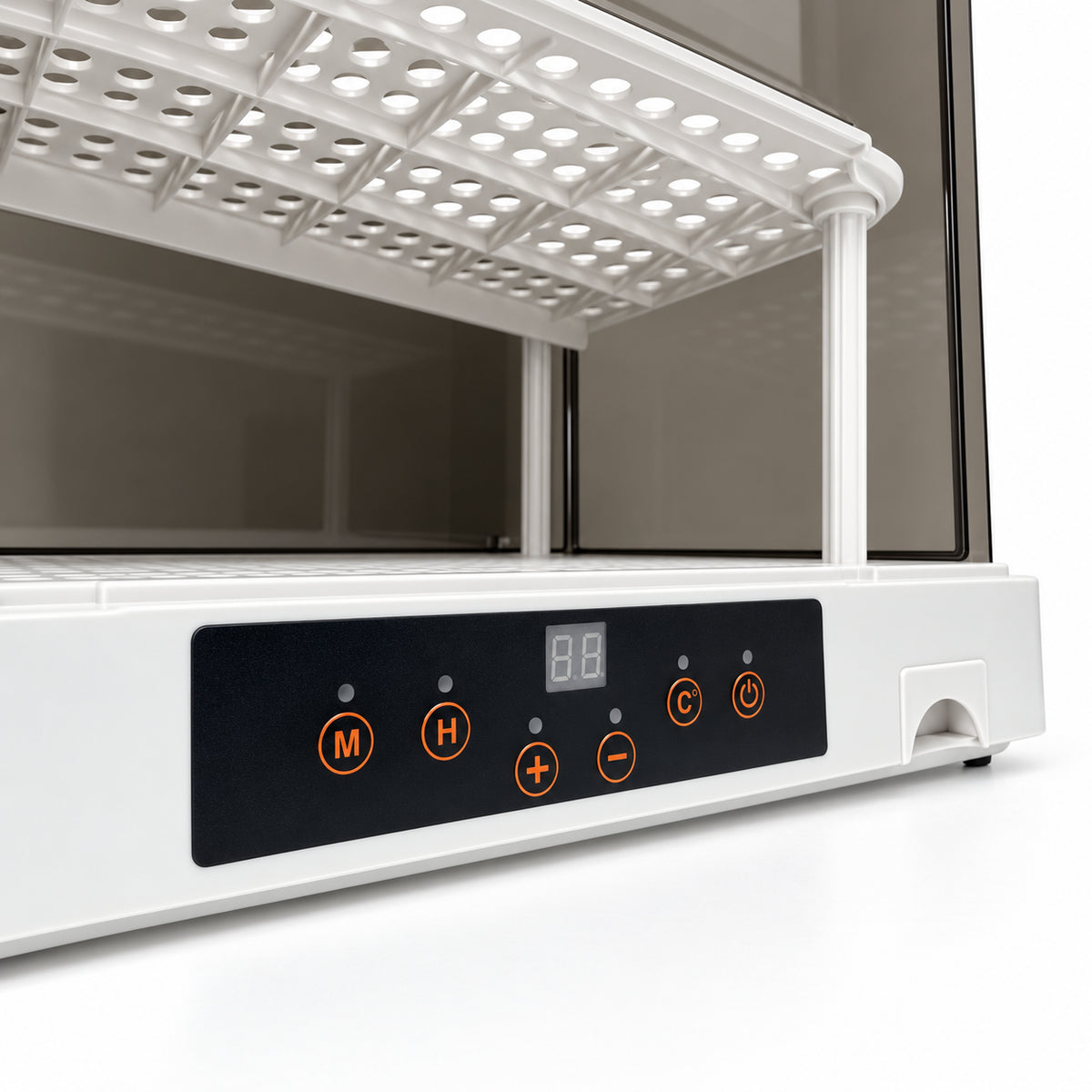

Control Panel Operation

  1. Turn On: Press the ON/OFF button briefly for approximately 1 second.
  2. Set Temperature: Use the temperature control together with the + and − buttons to adjust the temperature. Temperature adjustment is made in 5°C increments, with a maximum setting of 60°C.
  3. Set Hours: Press the H button to adjust the hour setting. The hour control can be set up to 5 hours.
  4. Set Minutes: Press the M button to adjust minutes in 10-minute increments, up to 60 minutes.
  5. Turn Off: Press and hold the ON/OFF button for approximately 3 seconds.
  6. After shutdown, the motor fan continues running for approximately 1 minute before stopping.

Recommended Drying Time & Temperature

The following general drying temperature and time recommendations are provided for common paint and coating types.

Paint / Coating Temperature Drying Time
Acrylic 40–50°C 30–60 minutes
Enamel 45–55°C 1–2 hours
Lacquer 50–60°C 30–60 minutes
Water-Based Primer 40–50°C 30–45 minutes
Oil-Based Primer 50–60°C 30–60 minutes
Water-Based Clear Coat 45–55°C 60–90 minutes
Oil-Based Clear Coat 50–60°C 1–2 hours

Important: These temperatures and drying times are general recommendations. Actual drying requirements can vary depending on the paint manufacturer, coating type, material, layer thickness, and application. Always follow the paint or coating manufacturer's instructions.

Assembly Overview

The NN-DR1 uses a modular assembly system designed to allow the cabinet to be assembled for use and folded down when storage is required.

  1. Remove the cabinet components and accessories from the package.
  2. Install the drying-rack supports into the lower rack.
  3. Position the upper drying rack onto the supports when using the double-layer configuration.
  4. Place the cabinet housing around the assembled drying rack.
  5. Secure the housing using the supplied screws.
  6. Install the upper cover in the correct orientation.
  7. Make sure the drying racks are stable before placing items inside.

For Model Painting & Hobby Workspaces

With adjustable temperature, programmable drying time, flexible rack configurations, and foldable construction, the NN-DR1 Paint Drying Cabinet provides a dedicated drying area for scale models, painted components, miniatures, and other compatible hobby projects.
