Iwata HP-TR2 Airbrush Replacement Parts

HP-TR2 Parts in This Collection

The HP-TR2 uses a trigger-style control system together with a side-feed paint arrangement. The collection includes components for several areas of the airbrush, making it easier to identify the part required for a specific repair or maintenance job.

• Side-feed bottles and cups: Clear and translucent bottle options, side-feed adaptor caps, and compatible paint-cup components for different paint capacities and working setups.
• Needle and nozzle components: Replacement needle, nozzle, needle cap, and nozzle cap parts used in the HP-TR2 fluid system.
• Air-valve components: Air-valve assemblies, valve rods, O-rings, and related airflow-control parts.
• Trigger and lever components: Main lever / trigger parts, trigger screws, slide cams, and slide-cam springs for servicing the HP-TR2 control mechanism.
• Needle-control components: Needle chucking nuts, chucking guides, needle springs, and spring guides for maintaining smooth needle movement.
• Packing and internal parts: Needle packing components, body rings, body-ring screws, handles, and other service parts used inside the airbrush.

Side-Feed Bottles, Cups & Paint-Feed Components

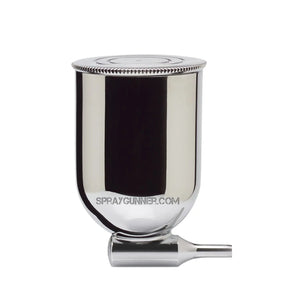

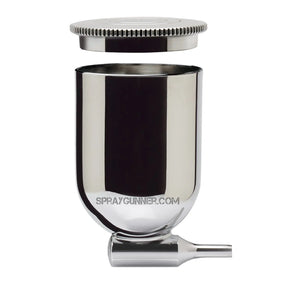

Several HP-TR2 side-feed bottle and cup components are included in this collection. Options shown include clear and translucent bottles with side-feed adaptor caps as well as metal cup components for compatible HP-TR2 setups.

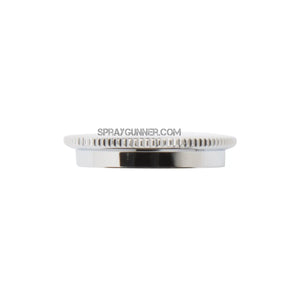

Available paint-feed parts include different capacities, so check the product title and specifications carefully when replacing an existing bottle, adaptor cap, cup, or lid.

Iwata HP-TR2 Needle & Nozzle Components

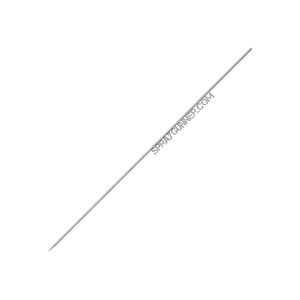

The collection includes fluid-system parts such as the Iwata R5 nozzle I7041 and Iwata R5 needle I7175, along with compatible front-end components including needle and nozzle caps.

Needle and nozzle condition can affect paint delivery and spray consistency. Inspect these parts when troubleshooting visible needle damage, paint-flow changes, irregular spray patterns, or buildup around the front of the airbrush.

Always compare the replacement part number with your airbrush configuration before installation.

Trigger, Slide Cam & Lever Parts

The HP-TR2 uses a trigger-style control mechanism rather than the traditional top-button layout found on many dual-action airbrushes. Maintaining this system may involve several individual mechanical components.

• Iwata Main Lever / Trigger I7141
• Iwata Main Lever / Trigger Screw I7142
• Iwata Slide Cam I7301
• Iwata Slide Cam Spring I7302
• Iwata Needle Chucking Guide I7152
• Iwata Needle Chucking Nut I1202

If trigger movement changes, inspect these mechanical components for paint buildup, wear, damage, or incorrect assembly before deciding which part requires replacement.

HP-TR2 Air Valve, O-Ring & Internal Components

Airflow response depends on the air-valve system and several small internal components working together. The collection includes parts such as the Iwata Air Valve Set I7121, Valve Rod I7131, and Air Valve O-Ring I1451.

Internal service parts also include needle packing, body components, springs, guides, and related pieces used when maintaining the mechanical operation of the HP-TR2.

Selected Iwata HP-TR2 Replacement Components

• Iwata Blanking Cover I0452
• Iwata Needle Chucking Nut I1202
• Iwata Air Valve O-Ring I1451
• Iwata Needle Cap (R5 and R3) I7011
• Iwata Nozzle Cap (R5) I7021
• Iwata Nozzle (R5) I7041
• Iwata Air Valve Set I7121
• Iwata Valve Rod I7131
• Iwata Main Lever / Trigger I7141
• Iwata Main Lever / Trigger Screw I7142
• Iwata Needle Chucking Guide I7152
• Iwata Needle (R5) I7175
• Iwata Ergonomic Handle I7192
• Iwata Needle Packing Screw I7252
• Iwata Slide Cam I7301
• Iwata Slide Cam Spring I7302
• Iwata Main Body Ring I7311
• Iwata Main Body Ring Screw I7312
• Iwata Needle Spring Guide I7702
• Iwata Needle Spring I7703

Product availability can change, so use the individual product page and listed part number as the final reference when selecting a component.

How to Choose the Correct HP-TR2 Part

Many airbrush replacement parts are small and can look similar even when they serve different models or assemblies. Before ordering an Iwata HP-TR2 replacement part, identify the component being serviced and compare its part number with the product listing.

• Confirm that your airbrush is the HP-TR2 model.

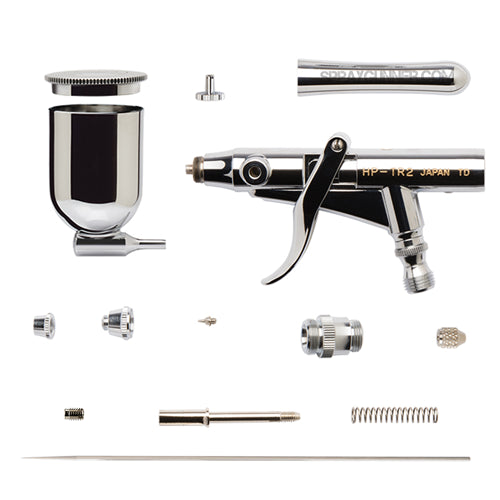

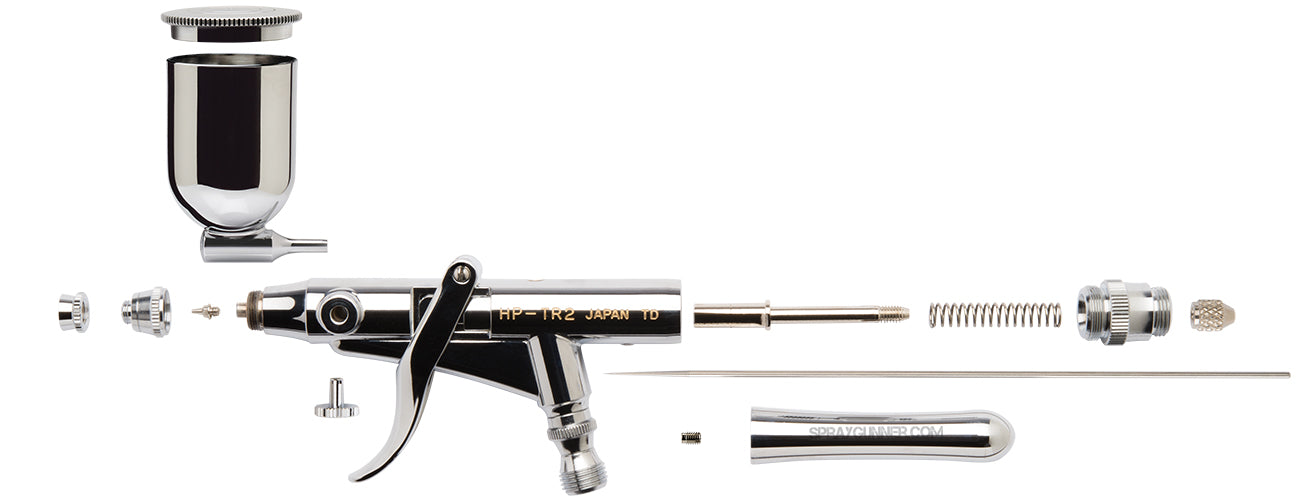

• Use the parts diagram on this collection page as an identification guide.
• Match the Iwata part number whenever one is provided.
• Check needle, nozzle, and cap compatibility together.
• Confirm bottle, cup, lid, and adaptor compatibility before ordering.
• Check trigger and internal parts individually rather than selecting by appearance alone.

Maintaining Your Iwata HP-TR2

Routine cleaning and inspection can help identify worn or damaged components before they create larger performance problems. Pay particular attention to the fluid system, paint-feed connection, trigger mechanism, and air-valve components.

• Clean the needle and nozzle after painting sessions.
• Remove dried paint from cup, bottle, and adaptor passages.
• Inspect the needle tip before reinstalling it.
• Check O-rings and packing if air or paint leakage develops.
• Inspect slide-cam and trigger components if control movement changes.
• Reassemble small precision components carefully and without excessive force.

More Iwata Airbrush Replacement Parts

Need components for another Iwata model? Browse the Iwata Airbrush Parts collection for additional needles, nozzles, valves, springs, seals, cups, caps, and maintenance components.

You can also browse the Iwata Airbrush collection for complete Iwata airbrush models and series.
