Iwata HP-CR Airbrush Replacement Parts

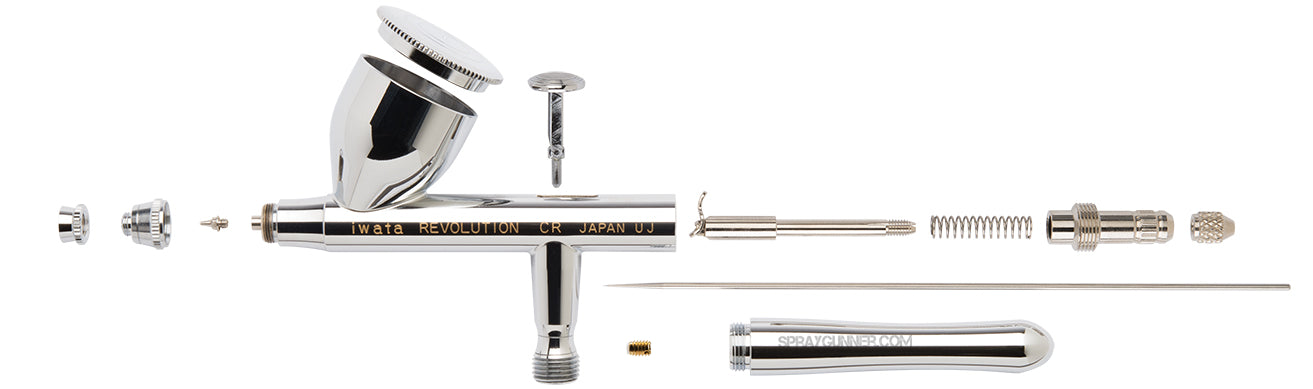

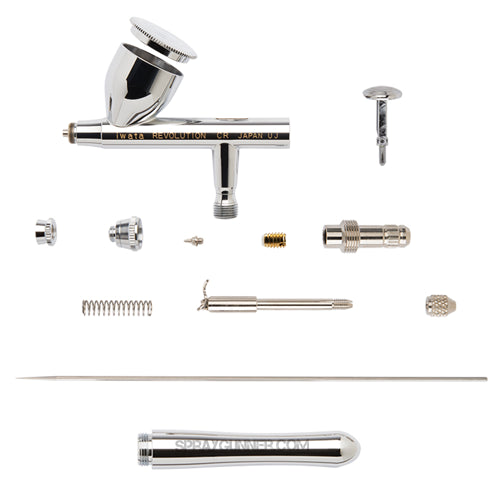

HP-CR Parts in This Collection

The Iwata HP-CR uses several precision components that work together to control airflow, paint delivery, needle movement, and trigger response. This collection makes it easier to locate individual parts when performing routine maintenance or replacing a worn or damaged component.

• Needles and nozzles: Replacement fluid-system components for maintaining paint delivery, atomization, and the intended spray setup.
• Needle and nozzle caps: Front-end components that protect the fluid tip and form part of the airbrush spray assembly.
• Air valve components: Air valve, valve spring, and guide components used in the airflow control system.
• Trigger and lever parts: Replacement control components for servicing the mechanical trigger assembly.
• Needle-control components: Chucking guides, chucking nuts, springs, spring guides, and related components that support controlled needle movement.
• Gravity-feed cup components: Replacement cup lids and related parts for the HP-CR paint-feed system.
• Packing components: PTFE packing and related service parts used around the internal needle path.

Iwata HP-CR Needle & Nozzle Replacement

The needle and nozzle are important parts of the HP-CR fluid system. Paint buildup, physical damage, or wear can affect paint delivery and spray consistency, so these components should be inspected carefully during troubleshooting and routine maintenance.

When replacing front-end components, check the product title, part number, and compatibility information before ordering. Similar-looking Iwata needles, nozzles, needle caps, and nozzle caps may be designed for different airbrush configurations.

Air Valve, Trigger & Needle-Control Parts

The HP-CR control system includes several small mechanical components that affect airflow and needle movement. The current collection includes parts such as air valve springs, air valves, valve guide components, main lever / trigger components, needle chucking parts, and needle springs.

If trigger movement, airflow, or needle response changes, inspect these parts individually before replacing unrelated components. Keeping the control mechanism clean and correctly assembled helps maintain normal airbrush operation.

Gravity-Feed Cup & Internal Service Components

Replacement gravity-feed cup lids and related components are also included in the HP-CR parts selection. These parts can be useful when a lid is lost, damaged, or needs replacement during regular airbrush maintenance.

Internal service components such as packing parts, spring guides, and chucking components should be handled carefully during disassembly and reassembly. Avoid forcing threaded or precision-fit components into position.

Choosing the Correct Iwata HP-CR Part

Before ordering, confirm that the replacement component matches your Iwata Revolution HP-CR and the required part designation. Some Iwata components are shared across compatible models, while others are specific to a particular needle, nozzle, cap, or internal configuration.

• Confirm the airbrush model before selecting a replacement part.
• Compare the product title and Iwata part number.
• Match needle and nozzle components to the correct configuration.
• Check cap compatibility before replacing front-end components.
• Review the individual product page when a component is listed for more than one compatible Iwata model.

Maintaining Your Iwata HP-CR Airbrush

Regular inspection can make it easier to identify worn or damaged components before they create additional spray problems. Clean the paint path after use and check the needle, nozzle, caps, trigger mechanism, and air valve components when performance changes.

• Inspect the needle for bending or visible tip damage.
• Check the nozzle and front-end components for dried paint buildup.
• Inspect needle-control parts if needle movement feels different.
• Check the air valve assembly if airflow response changes.
• Inspect packing components if paint moves farther back into the airbrush than expected.
• Clean and reinstall precision components carefully rather than forcing them into position.
