Iwata HP-BR Airbrush Replacement Parts

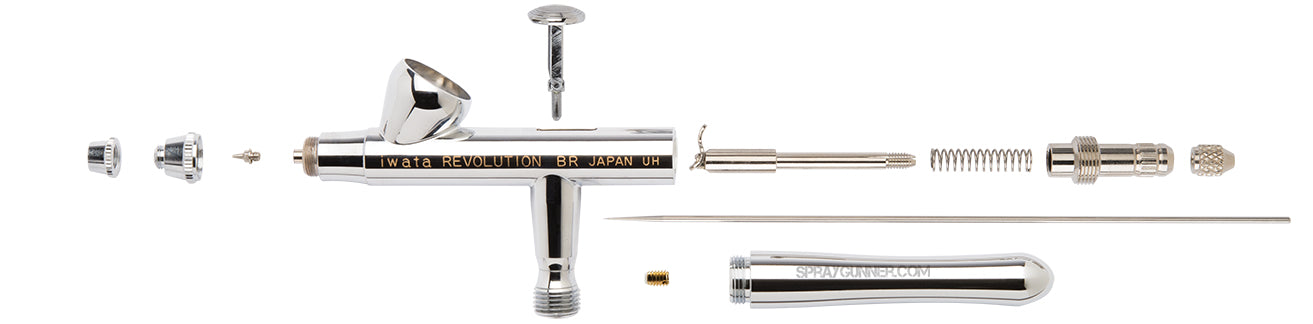

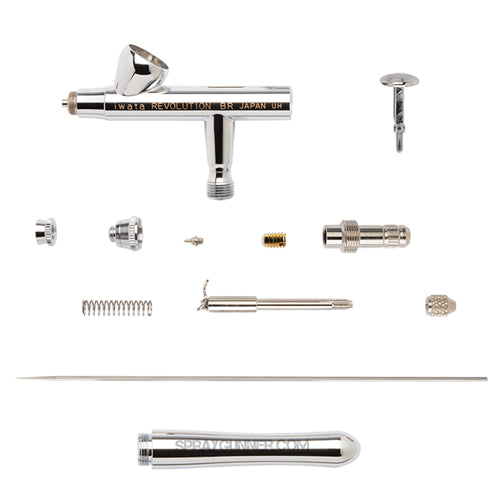

HP-BR Replacement Parts in This Collection

The current selection covers several areas of the HP-BR assembly, making it easier to identify individual components when servicing the airbrush.

• Needle and nozzle components: Replacement needle, R2 and R3 nozzles, needle cap, and nozzle cap components for servicing the front end of the airbrush.
• Air valve components: Air valve, air valve spring, and guide screw components used in the airflow-control assembly.
• Needle control parts: Chucking guide, chucking nut, needle spring, and spring guide for maintaining proper needle movement.
• Trigger components: Replacement main lever / trigger parts for servicing the control mechanism.
• Packing components: PTFE needle packing components for maintaining the internal needle-sealing area.
• Handle components: Replacement ergonomic handle for compatible Iwata configurations.

Iwata HP-BR Needle & Nozzle Components

Needle and nozzle components play an important role in paint delivery and spray consistency. The current HP-BR collection includes a replacement Iwata Needle (H2 and R3), along with R2 and R3 nozzle components.

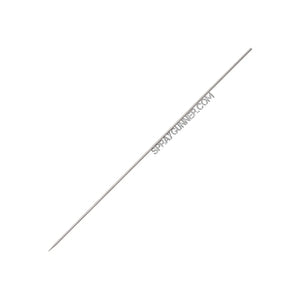

• Iwata Needle (H2 and R3)
• Iwata Nozzle (R3) I7042

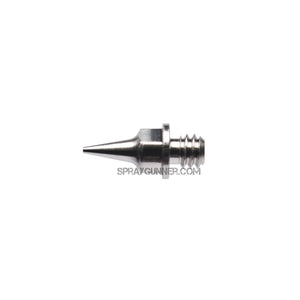

• Iwata Nozzle (R2) I7043

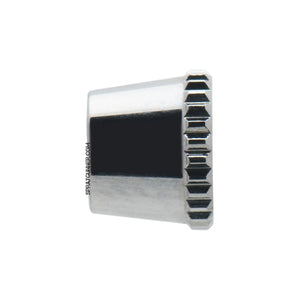

• Iwata Needle Cap (R3) I7012

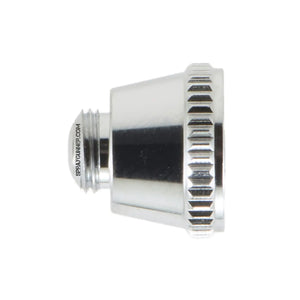

• Iwata Nozzle Cap (R3) I7022

Because similar-looking components may belong to different Iwata configurations, compare the model, part designation, and product compatibility information before ordering a needle or nozzle.

Iwata HP-BR Air Valve & Trigger Parts

The air valve and trigger assembly controls airflow and mechanical response during operation. If trigger movement changes or an internal part becomes worn or damaged, inspect the related components individually before replacing them.

• Iwata Air Valve Spring I0351

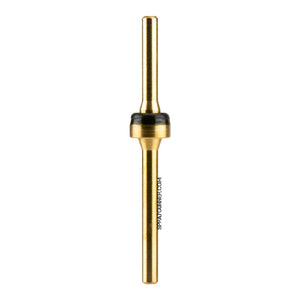

• Iwata Air Valve I6091
• Iwata Air Valve Guide Screw I6111
• Iwata Main Lever / Trigger I6121

Needle Chucking, Spring & Packing Components

Several internal components work together to position the needle and allow controlled movement through the airbrush. Replacing a worn or damaged part in this area can help restore normal mechanical operation without replacing unrelated components.

• Iwata Needle Chucking Guide I1157
• Iwata Needle Chucking Nut I1202
• Iwata Needle Spring I1351
• Iwata Needle Spring Guide I7701
• Iwata Needle Packing Screw Set with PTFE Packing (R3)

During maintenance, reinstall precision and threaded components carefully. Avoid forcing parts together if they do not seat correctly, and confirm the correct component before reassembly.

Choosing the Correct Iwata HP-BR Replacement Part

Check the exact product title and part designation before ordering. The current collection contains both R2 and R3 nozzle components, along with components that may also be used with other compatible Iwata configurations.

When servicing the front end of the airbrush, pay particular attention to the needle, nozzle, needle cap, and nozzle cap designation. Matching the correct parts helps avoid fitment problems and unnecessary replacement of components that are still usable.

Iwata HP-BR Maintenance & Part Inspection

Routine inspection can help identify the specific component that needs attention before spray performance is affected further. Clean paint-contact areas after use and inspect the airbrush before replacing parts.

• Check the needle for bending or physical damage.
• Inspect the nozzle and caps for dried paint or visible damage.
• Check the needle spring and chucking components if needle movement changes.
• Inspect the air valve assembly if airflow or trigger response changes.
• Check the packing area if paint is moving farther back into the airbrush than expected.
• Use the exact model and part designation when selecting replacement components.

Current Iwata HP-BR Replacement Components

• Iwata Air Valve Spring I0351
• Iwata Needle (H2 and R3)
• Iwata Needle Chucking Guide I1157
• Iwata Needle Chucking Nut I1202
• Iwata Needle Packing Screw Set with PTFE Packing (R3)
• Iwata Needle Spring I1351
• Iwata Air Valve I6091
• Iwata Air Valve Guide Screw I6111
• Iwata Main Lever / Trigger I6121
• Iwata Needle Cap (R3) I7012
• Iwata Nozzle Cap (R3) I7022
• Iwata Nozzle (R3) I7042
• Iwata Nozzle (R2) I7043

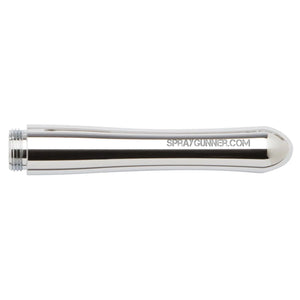

• Iwata Ergonomic Handle I7191
• Iwata Needle Spring Guide I7701
