Iwata High Performance HP-C Plus Parts

Iwata High Performance HP-C Plus Replacement Parts

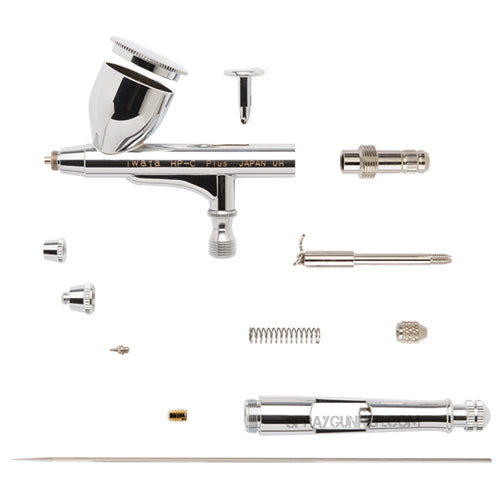

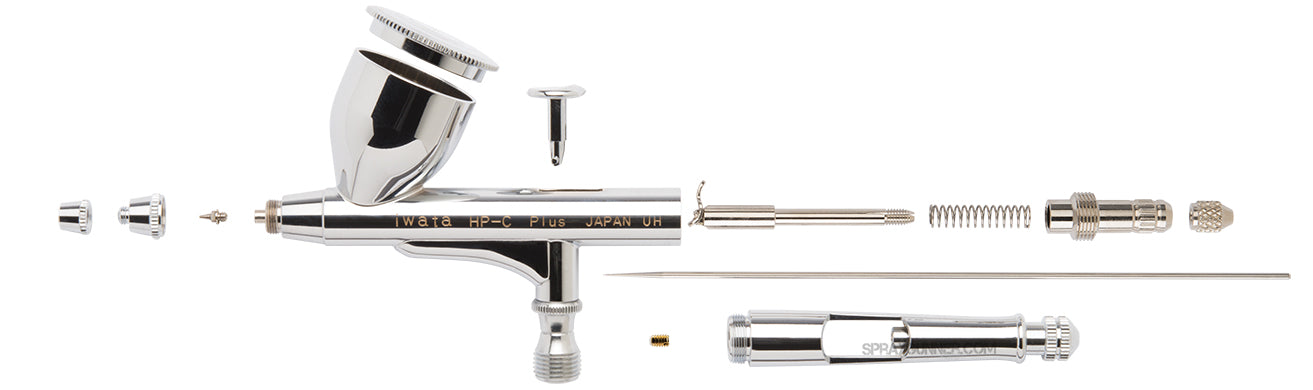

The HP-C Plus uses model-specific front-end, air-valve, needle-control, trigger, and gravity-feed components. When replacing worn or damaged parts, matching the exact Iwata part number and model compatibility helps avoid fitment issues.

• Needles and nozzles: Model-specific components used within the paint-delivery and spray-forming system.
• Nozzle caps and crown caps: Front-end components surrounding and protecting the needle and nozzle assembly.
• Air-valve components: Valve bodies, valve sets, valve guides, valve pistons, springs, and related airflow-control parts.
• Needle-control components: Chucking guides, chucking nuts, springs, spring guides, and related internal pieces.
• Trigger and lever components: Main lever and related parts involved in normal trigger operation.
• Seals and packing parts: O-rings and PTFE packing components used at specific internal sealing points.

HP-C Plus Needle, Nozzle & Front-End Components

The needle and nozzle system affects paint delivery and spray formation. Bent needles, damaged nozzles, dried paint, or worn front-end components can change how the airbrush operates.

Before replacing a front-end component, inspect and clean the assembly and confirm that the needle, nozzle, needle cap, nozzle cap, and related parts are intended for the HP-C Plus configuration.

• Needle: Inspect the tip for bending, visible damage, or wear.
• Nozzle: Check the opening and seating area for dried paint, damage, or wear.
• Needle crown cap: Protects the exposed front area while allowing access around the needle tip.
• Nozzle and needle caps: Match each cap to the correct HP-C Plus front-end configuration.

Iwata HP-C Plus Air-Valve Parts

Air-valve components in this collection include valve bodies, valve guides, complete valve sets, valve pistons, springs, O-rings, and related service parts.

If airflow or trigger response becomes irregular, cleaning and inspection should normally come first. Contamination, worn seals, incorrect assembly, or damaged valve components can affect normal air delivery.

Trigger, Needle Spring & Chucking Components

Trigger and needle movement depend on several connected internal parts, including the main lever, needle chucking guide, needle chucking nut, needle spring, spring guide, and related components.

These parts should move freely after cleaning and correct reassembly. If movement becomes stiff or inconsistent, inspect for dried paint, contamination, incorrect installation, or visible wear.

• Main lever: Forms part of the HP-C Plus trigger-control system.
• Needle chucking guide: Supports the needle-control assembly within the rear section of the airbrush.
• Needle chucking nut: Secures the needle to the internal movement system.
• Needle spring and spring guide: Support needle return and positioning during operation.

HP-C Plus O-Rings & PTFE Needle Packing Parts

Seals and packing components are used at specific locations inside the airbrush to support separation between paint, airflow, and moving internal assemblies.

This collection includes air-valve O-rings and PTFE needle-packing components for compatible HP-C Plus service requirements. Match each replacement to the correct part number and installation location.

HP-C Plus Gravity-Feed Cup & Lid Components

The Iwata HP-C Plus uses a top-mounted gravity-feed paint cup. This collection includes compatible cup lids and related replacement components for the gravity-feed system.

Confirm the cup capacity and lid configuration before replacing cup-related parts because similar Iwata cup components may use different dimensions or fitments.

Preset Handles & Rear HP-C Plus Components

Compatible preset handles are also included within the collection. A preset handle can provide a mechanical adjustment for limiting rearward needle movement depending on the installed configuration.

Compare the handle style, product title, and compatibility details before changing or replacing a rear handle component.

Quick Disconnect & Air Connection Accessories

Iwata QuickFit quick-disconnect components are included alongside the model-specific HP-C Plus service parts. These accessories can simplify connecting and removing the airbrush from a compatible air hose setup.

Confirm hose, fitting, and adapter compatibility before changing air-line components.

How to Choose the Correct Iwata HP-C Plus Part

Start with the exact airbrush model, then compare the component name, Iwata part number, size, and compatibility information shown on the individual replacement-part listing.

• Confirm HP-C Plus compatibility: Make sure the replacement component is listed for the High Performance HP-C Plus.
• Check the Iwata part number: Part numbers provide a more reliable reference than visual appearance alone.
• Match needle and nozzle components carefully: Front-end parts should belong to the same HP-C Plus setup.
• Review air-valve compatibility: Valve components can differ between Iwata models and series.
• Confirm packing and O-ring location: Match each sealing component to the intended internal position.
• Check cup and preset-handle configuration: Confirm dimensions and compatibility before replacing these components.

Iwata HP-C Plus Cleaning & Maintenance

Routine cleaning helps reduce dried-paint buildup around the needle, nozzle, gravity-feed cup, paint path, trigger area, and other moving components. Small front-end and internal parts should be handled carefully during removal and reassembly.

• Flush the paint path after painting sessions.
• Clean the needle carefully before reinstalling it.
• Inspect the nozzle before assuming replacement is required.
• Clean the gravity-feed cup and lid after use.
• Check air-valve components if airflow becomes irregular.
• Inspect O-rings and needle packing if leaks appear.
• Check needle springs and chucking parts if movement changes.
• Reassemble internal components in the correct order and orientation.
