Iwata High Performance HP-BC Plus Parts

Iwata High Performance HP-BC Plus Replacement Parts

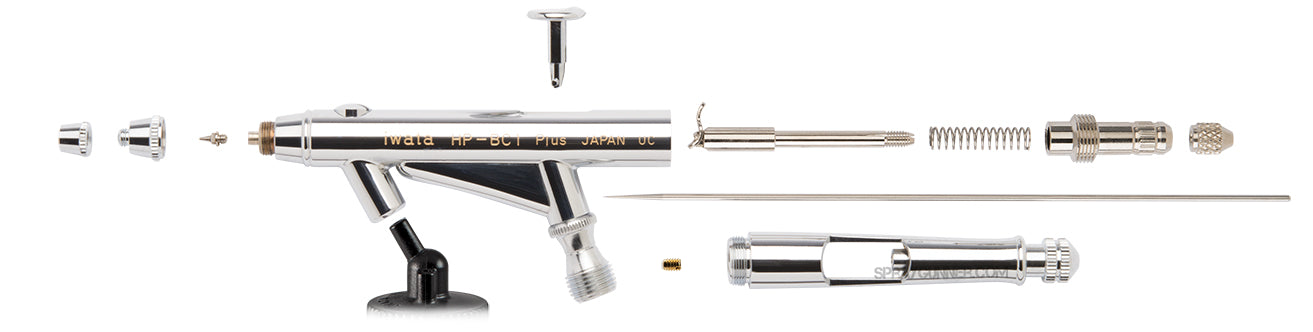

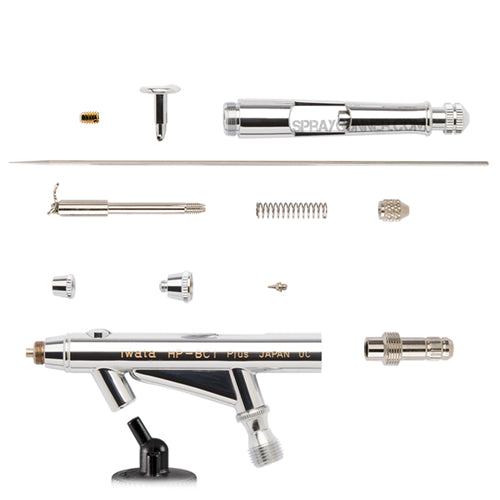

The HP-BC Plus uses model-specific front-end, air-valve, needle-control, trigger, and internal components. When replacing worn or damaged parts, match the component name and Iwata part number to the HP-BC Plus before installation.

• Needles and nozzles: Model-specific components used within the paint-delivery and spray-forming system.
• Nozzle caps and crown caps: Front-end components surrounding and protecting the needle and nozzle assembly.
• Air-valve components: Valve bodies, valve sets, guides, pistons, springs, O-rings, and related airflow-control parts.
• Needle-control components: Chucking guides, chucking nuts, springs, spring guides, and related internal parts.
• Trigger and lever components: Main lever and related parts involved in normal trigger operation.
• Seals and packing components: O-rings and PTFE needle-packing parts used at specific internal sealing points.

HP-BC Plus Needle, Nozzle & Front-End Parts

The needle and nozzle assembly affects paint delivery and spray formation. Bent needles, damaged nozzles, worn caps, or dried paint around the front assembly can affect normal airbrush operation.

Before replacing a front-end component, inspect and clean the assembly and confirm that the needle, nozzle, needle cap, nozzle cap, and crown cap are intended for the HP-BC Plus configuration.

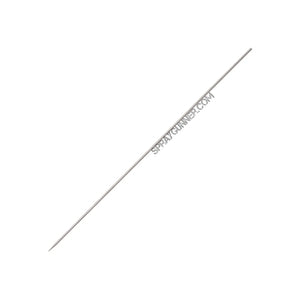

• Needle: Inspect the tip for bending, visible damage, or wear before reinstalling.

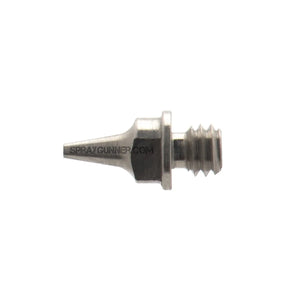

• Nozzle: Check the opening and seating area for dried paint, damage, or wear.

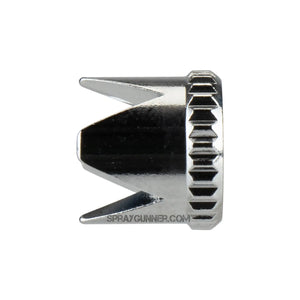

• Needle crown cap: Protects the front needle area while allowing access around the needle tip.

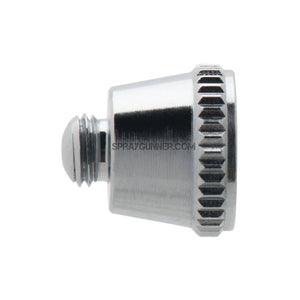

• Needle and nozzle caps: Match each cap to the correct HP-BC Plus front-end setup.

Iwata HP-BC Plus Air-Valve Parts

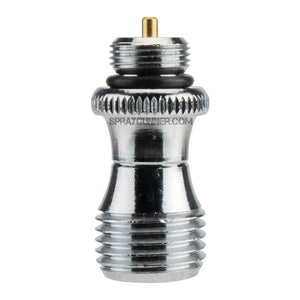

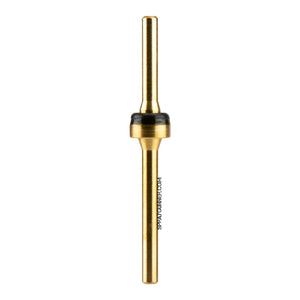

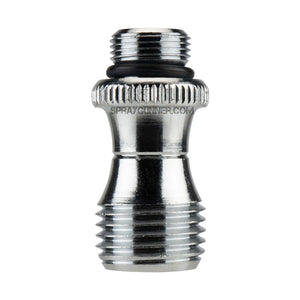

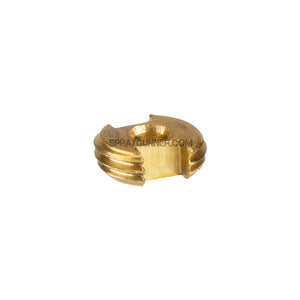

Air-valve service components in this collection include the air valve, valve body, valve guide, valve set, valve piston, valve spring, O-ring, and related parts.

If airflow or trigger response becomes irregular, inspect and clean the airbrush before assuming a component requires replacement. Contamination, worn seals, incorrect assembly, or damaged internal parts can affect normal air delivery.

Trigger, Needle Spring & Chucking Components

Trigger and needle movement depend on several connected internal components, including the main lever, needle chucking guide, needle chucking nut, needle spring, and needle spring guide.

These parts should move correctly after cleaning and reassembly. If movement becomes stiff or inconsistent, inspect for dried paint, contamination, incorrect installation, or visible wear.

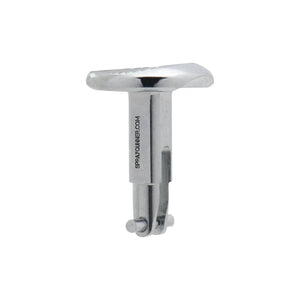

• Main lever / trigger: Forms part of the HP-BC Plus control system.

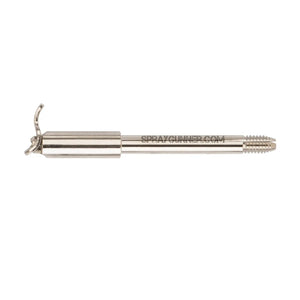

• Needle chucking guide: Supports the needle-control assembly within the rear section.

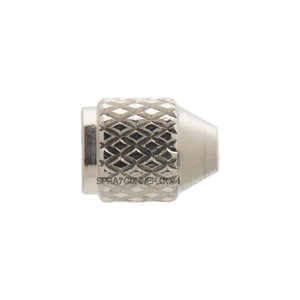

• Needle chucking nut: Secures the needle to the internal movement system.

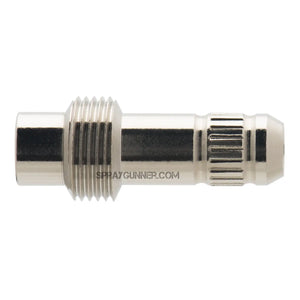

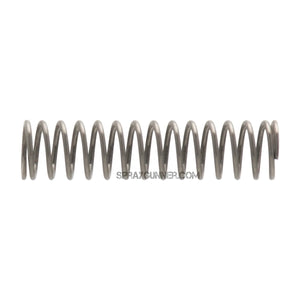

• Needle spring and spring guide: Support needle return and positioning during operation.

HP-BC Plus O-Rings & PTFE Needle Packing

O-rings and packing components are used at specific locations inside the airbrush to support sealing between airflow, paint, and moving internal assemblies.

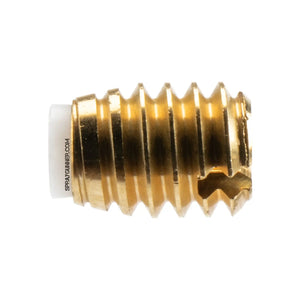

This collection includes an air-valve O-ring and compatible PTFE needle-packing components. Match each replacement to the correct part number and installation location before servicing the airbrush.

Preset Handle & Rear HP-BC Plus Components

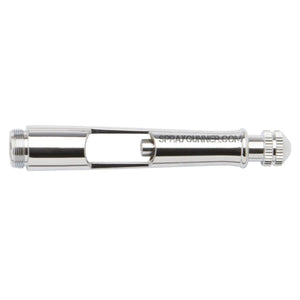

A compatible preset handle is included within this collection. Preset-handle designs can provide a mechanical adjustment for limiting rearward needle movement depending on the airbrush setup.

Compare the handle style, product title, and compatibility details before replacing a rear handle component.

Quick Disconnect & Air Connection Components

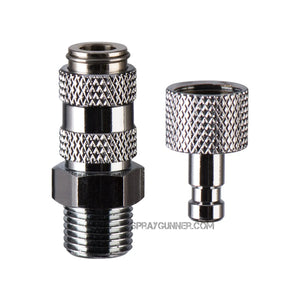

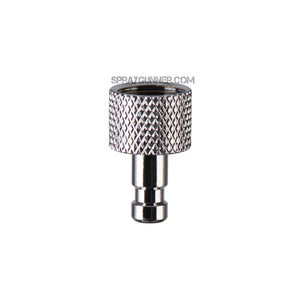

Iwata QuickFit quick-disconnect components are included alongside the HP-BC Plus service parts. These accessories can simplify connecting and removing the airbrush from a compatible air hose.

Confirm the connection type of the hose, adapter, and airbrush before changing air-line components.

How to Choose the Correct Iwata HP-BC Plus Part

Start with the exact airbrush model, then compare the component name, Iwata part number, size, and compatibility information shown on the individual product listing.

• Confirm HP-BC Plus compatibility: Make sure the replacement component is listed for the High Performance HP-BC Plus.
• Check the Iwata part number: Part numbers provide a more reliable reference than appearance alone.
• Match needle and nozzle components: Front-end parts should belong to the same HP-BC Plus setup.
• Review air-valve compatibility: Valve parts can differ between Iwata models and series.
• Confirm packing and O-ring location: Match each sealing component to its intended internal position.
• Check preset-handle configuration: Confirm the rear-handle style before replacement.

Iwata HP-BC Plus Cleaning & Maintenance

Routine cleaning helps reduce dried-paint buildup around the needle, nozzle, paint path, trigger area, and other moving components. Small front-end and internal parts should be handled carefully during removal and reassembly.

• Flush the paint path after painting sessions.
• Clean the needle carefully before reinstalling it.
• Inspect the nozzle before assuming replacement is required.
• Check air-valve components if airflow becomes irregular.
• Inspect O-rings and needle packing if leaks appear.
• Check needle springs and chucking parts if movement changes.
• Reassemble internal components in the correct order and orientation.
• Use appropriate airbrush lubricant sparingly where specified.

Related Iwata High Performance & Airbrush Parts

Replacement components for additional Iwata models can be found in the Iwata Airbrush Parts collection .

High Performance and Hi-Line airbrush models can be compared in the Iwata Hi-Line & High Performance collection .

Additional Iwata series and airbrush configurations are available in the Iwata Airbrushes collection .
