Iwata High Performance HP-B Plus Parts

Iwata High Performance HP-B Plus Replacement Parts

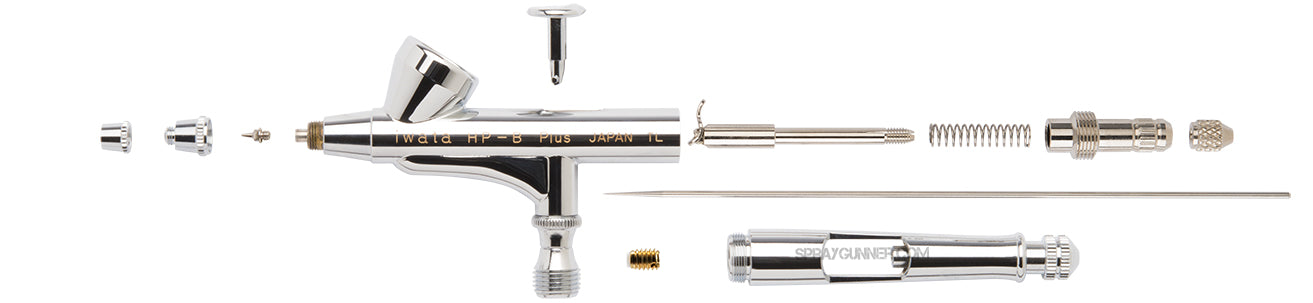

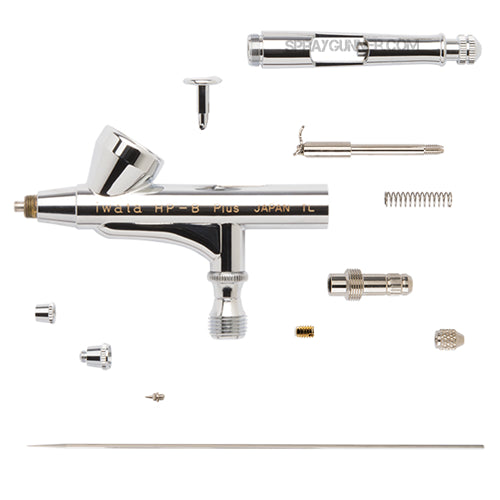

The HP-B Plus uses model-specific front-end, air-valve, needle-control, trigger, and internal components. When servicing the airbrush, matching each replacement part to the correct Iwata model and part number helps avoid fitment issues.

• Needles and nozzle components: Model-specific parts used within the paint-delivery and spray-forming system.
• Nozzle and crown caps: Front-end components surrounding and protecting the needle and nozzle assembly.
• Air-valve components: Valve bodies, valve sets, valve pistons, springs, guides, and related airflow-control parts.
• Trigger and lever parts: Main lever and related internal pieces involved in normal trigger operation.
• Needle-control components: Chucking guides, chucking nuts, springs, and related parts used to secure and move the needle.
• Seals and packing parts: O-rings, PTFE packing components, and other model-specific sealing pieces.

HP-B Plus Needle, Nozzle & Front-End Parts

The needle and nozzle system affects paint delivery and spray formation. Bent needles, damaged nozzles, worn caps, or dried paint around the front assembly can affect normal airbrush operation.

Before replacing front-end parts, inspect and clean the assembly carefully and confirm that the needle, nozzle, nozzle cap, and crown cap are intended for the HP-B Plus configuration.

• Needle: Inspect the tip for bending, wear, or other visible damage.
• Nozzle: Check the opening and seating area for dried paint, damage, or wear.
• Nozzle cap: Match the component to the correct HP-B Plus front-end setup.
• Crown cap: Confirm model compatibility before replacing the front protective component.

Iwata HP-B Plus Air-Valve Components

Air-valve parts in this collection include valve bodies, valve sets, valve pistons, valve guides, springs, O-rings, and related service components.

If airflow or trigger response changes, cleaning and inspection should normally come first. Contamination, worn seals, incorrect assembly, or damaged internal components can all affect normal airflow.

Trigger, Needle Spring & Chucking Components

Trigger and needle movement depend on several connected internal components, including the main lever, needle chucking guide, needle chucking nut, needle spring, and related pieces.

These parts should move correctly after cleaning and reassembly. If movement becomes stiff or inconsistent, inspect the airbrush for dried paint, contamination, incorrect installation, or visible wear.

• Main lever: Forms part of the HP-B Plus trigger-control system.
• Needle chucking guide: Supports alignment and movement within the rear needle-control assembly.
• Needle chucking nut: Secures the needle within the internal movement system.
• Needle spring: Supports needle return and positioning during operation.

HP-B Plus O-Rings & Needle Packing Parts

O-rings and packing components are used at specific locations within the airbrush to help separate airflow, paint, and moving internal assemblies.

Needle-packing components should be matched carefully to the HP-B Plus model. If leaks, paint migration, or irregular operation appear, inspect the relevant sealing components before selecting replacement parts.

Preset Handles & Related HP-B Plus Components

This collection also includes compatible preset-handle configurations and related rear airbrush components. Preset handles can provide an adjustable mechanical limit for needle movement depending on the installed configuration.

Because different preset-handle designs may be available, compare the product title, style, and compatibility information before replacing or changing the rear handle.

Quick Disconnect & Air Connection Components

Quick-disconnect adapters can make it easier to connect or remove an airbrush from a compatible air hose setup. This collection includes Iwata quick-disconnect components alongside the model-specific internal service parts.

Confirm the connection type and compatibility of the hose, adapter, and airbrush before changing air-line components.

How to Choose the Correct Iwata HP-B Plus Part

Start with the exact airbrush model and then compare the component name, Iwata part number, size, and compatibility information shown on the product listing.

• Confirm HP-B Plus compatibility: Make sure the replacement component is listed for the High Performance HP-B Plus.
• Check the Iwata part number: Part numbers provide a more reliable reference than appearance alone.
• Match the needle and nozzle system: Confirm that front-end components belong to the same HP-B Plus setup.
• Review valve compatibility: Air-valve components can differ between Iwata models and series.
• Check packing and O-ring location: Match sealing components to the correct internal position.
• Confirm preset-handle style: Compare the handle configuration before replacing rear components.

Iwata HP-B Plus Cleaning & Maintenance

Routine cleaning helps reduce dried-paint buildup around the needle, nozzle, paint path, trigger area, and other moving components. Small front-end and internal parts should be handled carefully during removal and reassembly.

• Flush the paint path after painting sessions.
• Clean the needle carefully before reinstalling it.
• Inspect the nozzle before assuming replacement is required.
• Check air-valve components if airflow becomes irregular.
• Inspect O-rings and needle packing if leaks appear.
• Check the needle spring and chucking system if movement changes.
• Reassemble internal components in the correct order and orientation.
• Use appropriate airbrush lubricant sparingly where specified.
