Iwata Hi-Line HP-BH Parts

Iwata HP-BH Replacement Parts

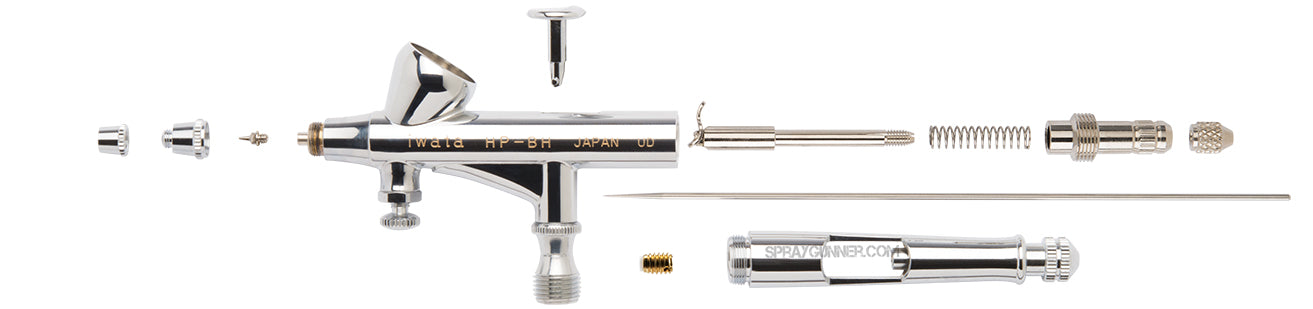

The Hi-Line HP-BH uses model-specific paint-control, airflow, trigger, and front-end components. When replacing internal parts, matching the exact component and Iwata part number is important because similar-looking parts may be intended for another Iwata model or series.

• Needles and needle-control parts: Needles, chucking guides, chucking nuts, springs, and related components used within the needle movement system.
• Nozzles and front-end components: Nozzles, nozzle caps, crown caps, and related parts used around the paint-delivery assembly.
• Air-valve parts: Valve bodies, valve sets, pistons, springs, guides, and other airflow-control components.
• MAC valve components: Model-specific parts associated with the HP-BH air-adjustment system.
• Trigger and lever components: Main lever, trigger-related parts, and internal pieces involved in normal airbrush operation.
• Seals and packing components: O-rings and packing parts used at specific sealing points within the airbrush.

HP-BH Needle, Nozzle & Cap Components

The needle and nozzle system affects paint delivery and spray formation. Bent needles, damaged nozzles, worn caps, or dried paint around the front assembly can change how the airbrush operates.

When servicing the HP-BH front end, confirm that the needle, nozzle, nozzle cap, and crown cap are intended for the same airbrush configuration.

• Needles: Inspect the tip for bends, damage, or wear before reinstalling.
• Nozzles: Check for dried paint, cracks, damage, or wear around the opening and seating area.

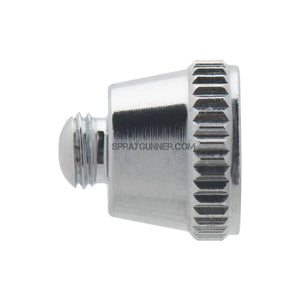

• Nozzle caps: Match the replacement cap to the correct HP-BH front-end setup.
• Crown caps: Confirm model compatibility before replacing the front protective component.

Iwata HP-BH MAC Valve & Air-Valve Parts

The HP-BH includes airflow-control components associated with the air valve and MAC valve systems. This collection includes valve bodies, valve sets, valve guides, pistons, springs, seals, and related service parts.

If airflow becomes inconsistent, inspect and clean the airbrush before replacing parts. Contamination, dried material, incorrect assembly, worn seals, or damaged valve components can all affect normal airflow and trigger response.

Trigger, Needle Spring & Internal HP-BH Parts

Trigger and needle movement depend on several connected parts, including the main lever, needle chucking components, spring, spring guide, and other internal pieces.

If movement becomes irregular, inspect the airbrush for dried paint, contamination, incorrect installation, or visible wear before deciding which component needs replacement.

• Main lever and trigger components: Support normal trigger movement and control.
• Needle spring: Helps return and position the needle-control system.
• Needle chucking parts: Secure the needle and connect it to the internal movement system.
• Spring guides and related internals: Help maintain proper positioning of internal components.

HP-BH Seals, O-Rings & Needle Packing Parts

Sealing and packing components are used at specific points inside the airbrush to separate airflow, paint, and moving assemblies. Worn or damaged seals can contribute to leaks or irregular operation.

Needle packing components and O-rings should be matched carefully to the HP-BH model. Replacement should be based on confirmed compatibility rather than appearance alone.

How to Choose the Correct Iwata HP-BH Part

Start with the exact airbrush model, then compare the component name, Iwata part number, size, and compatibility information shown on the product listing.

• Confirm HP-BH compatibility: Make sure the replacement component is listed for the Hi-Line HP-BH.
• Check the part number: Iwata part numbers are a more reliable reference than visual appearance alone.
• Match needle and nozzle components carefully: Front-end parts should be selected for the correct HP-BH setup.
• Review valve compatibility: Air-valve and MAC valve components may differ from those used on other Iwata models.
• Check seals and packing parts: Confirm the correct location and fitment before replacing internal sealing components.

Iwata Hi-Line HP-BH Cleaning & Maintenance

Regular cleaning helps reduce dried-paint buildup around the needle, nozzle, paint path, trigger area, and other moving components. Small internal and front-end parts should be handled carefully during removal and reassembly.

• Flush the paint path after painting sessions.
• Clean the needle carefully before reinstalling it.
• Inspect the nozzle before assuming replacement is required.
• Check valve and MAC valve components if airflow becomes irregular.
• Inspect O-rings and packing parts if leaks appear.
• Reassemble internal parts in the correct order and orientation.
• Use appropriate airbrush lubricant sparingly where specified.
