Iwata Eclipse Takumi Parts

Iwata Eclipse Takumi Replacement Parts

The Eclipse Takumi uses a side-feed configuration along with model-specific paint-delivery, airflow, needle-control, and trigger components. When replacing parts, match the component name and Iwata part number to the Takumi model before installation.

• Side-feed cups and cup assemblies: Different compatible cup sizes and configurations for paint delivery.
• Cup adapters and bottle components: Parts used to connect compatible side-feed cups and bottles.
• Needles and nozzles: Front-end components involved in paint delivery and spray formation.

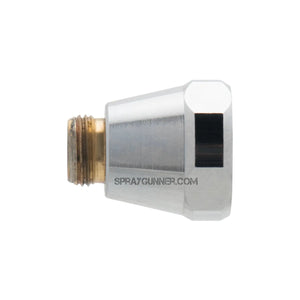

• Caps and head components: Crown caps, nozzle caps, head caps, and related front-end parts.
• Air-valve components: Valve parts, guides, springs, seals, and related airflow-control components.
• Needle-control and trigger parts: Chucking guides, chucking nuts, springs, handles, and related internal pieces.

Eclipse Takumi Side-Feed Cups, Lids & Adapters

One of the main differences between the Eclipse Takumi and traditional gravity-feed Eclipse models is its side-feed paint system. This collection includes compatible side-feed cups, cup assemblies, lids, adapters, and bottle-related components.

Different cup capacities can be useful for different paint volumes and workflows. Before replacing a cup or adapter, confirm the connection style, cup size, and compatibility listed on the individual product page.

• Side-feed cups: Compatible paint cups available in different capacities.
• Cup lids: Replacement lids matched to specific cup sizes.
• Side-gravity adapters: Connect compatible cup configurations to the Takumi side-feed system.
• Bottle adapter components: Support compatible bottle-based paint delivery configurations.

Takumi Needle, Nozzle & Front-End Components

The needle and nozzle assembly affects paint flow and spray formation. Bent needles, damaged nozzles, worn caps, or dried paint around the front assembly can affect normal operation.

Inspect and clean the front-end components before replacement, then confirm that the needle, nozzle, nozzle cap, crown cap, and head-related parts are intended for the Eclipse Takumi setup.

• Needle: Inspect the tip for bending, visible wear, or damage.

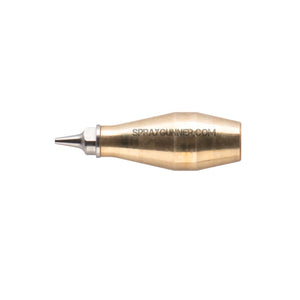

• Nozzle: Check the opening and seating area for dried paint or damage.

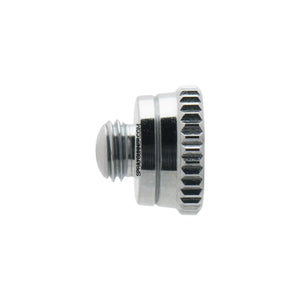

• Crown and nozzle caps: Match each front-end component to the correct Takumi configuration.
• Head components: Confirm model and part-number compatibility before replacement.

Iwata Eclipse Takumi Air-Valve Parts

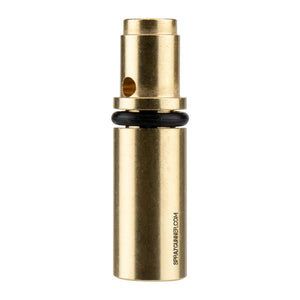

Air-valve components in this collection include valve parts, valve guides, guide screws, valve springs, O-rings, and related service components.

If airflow or trigger response becomes irregular, inspect and clean the airbrush before replacing components. Contamination, worn seals, incorrect assembly, or damaged internal parts can affect airflow.

Needle Chucking, Springs & Trigger Components

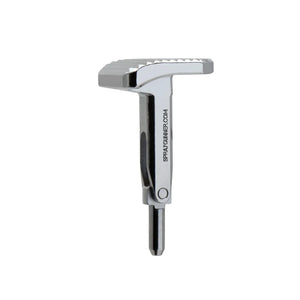

Needle movement depends on several connected internal parts, including the needle chucking guide, chucking nut, needle spring, spring guide, main lever, and related components.

These parts should move correctly after cleaning and reassembly. If the trigger or needle movement becomes stiff or inconsistent, inspect for dried paint, contamination, incorrect installation, or visible wear.

Preset Handles & Rear Takumi Components

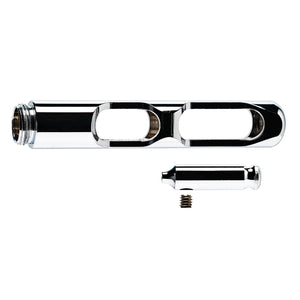

The collection includes compatible preset handles and other rear airbrush components. Preset handles can provide a mechanical limit for rearward needle movement depending on the installed setup.

Compare the handle design and product compatibility information before changing or replacing rear components.

Takumi O-Rings & Needle Packing Parts

O-rings and packing components are used at specific internal locations to support sealing between paint, airflow, and moving assemblies.

This collection includes compatible O-rings and PTFE needle-packing components. Match each replacement to the correct location and Iwata part number before installation.

QuickFit & Rapid Access Components

Iwata QuickFit quick-disconnect components and Rapid Access handle or needle-grip accessories are also included in the collection.

Quick-disconnect fittings can simplify removing the airbrush from a compatible hose setup, while compatible rear-access components provide another option for accessing or handling the needle. Always confirm compatibility before changing these components.

How to Choose the Correct Iwata Eclipse Takumi Part

Start with the exact airbrush model, then compare the product name, Iwata part number, dimensions, and compatibility information shown on the individual replacement-part listing.

• Confirm Eclipse Takumi compatibility: Make sure the component is listed for the Takumi model.
• Check the part number: Iwata part numbers provide a more dependable reference than appearance alone.
• Match side-feed components: Confirm cup size, lid, adapter, and connection style.
• Match needle and nozzle components: Front-end parts should belong to the correct Takumi setup.
• Review valve and seal compatibility: Air-valve, O-ring, and packing components may differ between Iwata models.
• Check rear-handle configuration: Compare preset-handle and Rapid Access components before replacement.

Iwata Eclipse Takumi Cleaning & Maintenance

Routine cleaning helps reduce dried-paint buildup around the needle, nozzle, side-feed cup, paint path, trigger area, and other moving components. Small internal and front-end parts should be handled carefully during removal and reassembly.

• Flush the paint path after painting sessions.
• Clean side-feed cups, lids, bottles, and adapters after use.
• Clean the needle carefully before reinstalling it.
• Inspect the nozzle before assuming replacement is required.
• Check air-valve components if airflow becomes irregular.
• Inspect O-rings and needle packing if leaks appear.
• Check springs and chucking components if needle movement changes.
• Reassemble internal components in the correct order and orientation.
