Iwata Eclipse HP-BCS Parts

Iwata Eclipse HP-BCS Replacement Parts

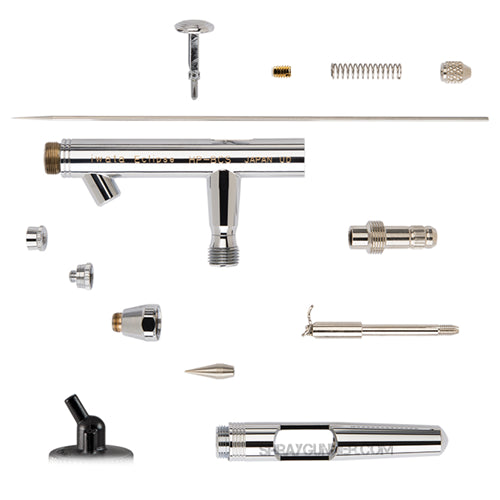

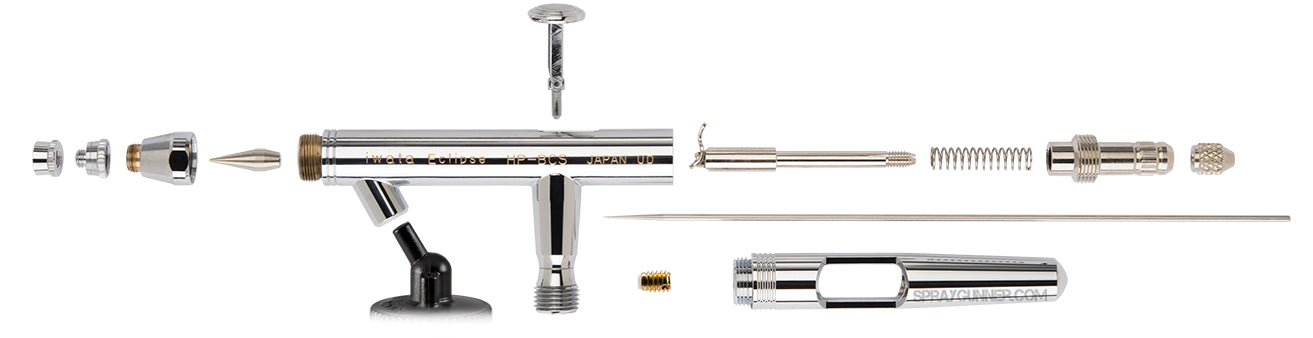

The Eclipse HP-BCS uses model-specific front-end, needle-control, airflow, trigger, and internal components. Matching the correct replacement part to the HP-BCS model and Iwata part number helps reduce fitment problems during maintenance or repair.

• Needles and nozzles: Components used within the paint-delivery and spray-forming system.
• Needle and head caps: Front-end parts that surround and protect the needle and nozzle assembly.
• Air-valve components: Valve parts, guides, springs, O-rings, and related airflow-control pieces.
• Needle-control components: Chucking guides, chucking nuts, needle springs, spring guides, and related internal pieces.
• Trigger and lever components: Main lever and related parts involved in normal airbrush control.
• Seals and packing components: O-rings and PTFE needle-packing parts used at specific internal sealing points.

HP-BCS Needle, Nozzle & Front-End Components

The needle and nozzle assembly affects paint delivery and spray formation. Bent needles, damaged nozzles, worn caps, or dried paint around the front assembly can affect normal operation.

Before replacing front-end parts, clean and inspect the components and confirm that the needle, nozzle, needle cap, head cap, and related parts are intended for the Eclipse HP-BCS configuration.

• Needle: Inspect the tip for bending, visible wear, or damage before reinstalling.
• Nozzle: Check the opening and seating area for dried paint, wear, or visible damage.
• Needle crown cap: Protects the exposed needle area at the front of the airbrush.
• Needle and head caps: Match front-end components by model and part number before replacement.

Iwata Eclipse HP-BCS Air-Valve Parts

Air-valve components in this collection include valve parts, valve guides, guide screws, valve springs, O-rings, and related service pieces.

If airflow or trigger response changes, inspect and clean the airbrush before assuming replacement is required. Contamination, damaged seals, incorrect assembly, or wear can affect normal airflow.

Trigger, Needle Spring & Chucking Components

Needle movement depends on several connected internal parts, including the main lever, needle chucking guide, needle chucking nut, needle spring, and needle spring guide.

These components should move correctly after cleaning and reassembly. If trigger or needle movement becomes stiff or inconsistent, inspect for dried paint, contamination, incorrect installation, or visible wear.

• Main lever / trigger: Forms part of the HP-BCS control system.
• Needle chucking guide: Supports the needle-control assembly inside the rear section.
• Needle chucking nut: Secures the needle to the internal movement system.
• Needle spring and spring guide: Support needle return and positioning during operation.

HP-BCS O-Rings & PTFE Needle Packing

O-rings and packing components are used at specific locations inside the airbrush to support sealing between paint, airflow, and moving internal assemblies.

This collection includes compatible air-valve O-rings, joint O-rings, and PTFE needle-packing components. Match each replacement to the correct location and Iwata part number before installation.

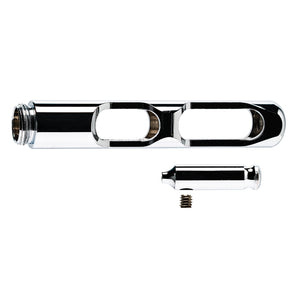

Preset Handle & Rear HP-BCS Components

A compatible preset handle is included in this collection. Preset-handle configurations can provide a mechanical limit for rearward needle movement depending on the installed setup.

Compare the handle style and compatibility details before replacing or changing rear airbrush components.

QuickFit & Rapid Access Components

Iwata QuickFit quick-disconnect components and a compatible Rapid Access handle or needle-grip set are also included in the collection.

Quick-disconnect fittings can simplify removing the airbrush from a compatible air hose, while rear-access components provide another option for handling or accessing the needle. Confirm compatibility before changing these accessories.

How to Choose the Correct Iwata Eclipse HP-BCS Part

Start with the exact airbrush model, then compare the component name, Iwata part number, size, and compatibility information shown on the individual replacement-part listing.

• Confirm HP-BCS compatibility: Make sure the part is listed for the Iwata Eclipse HP-BCS.
• Check the Iwata part number: Part numbers provide a more dependable reference than appearance alone.
• Match the needle and nozzle system: Front-end components should belong to the correct HP-BCS setup.
• Review valve compatibility: Air-valve parts may differ between Iwata Eclipse models.
• Confirm O-ring and packing location: Match sealing components to their intended internal position.
• Check rear-handle components: Confirm preset-handle and Rapid Access compatibility before replacement.

Iwata Eclipse HP-BCS Cleaning & Maintenance

Routine cleaning helps reduce dried-paint buildup around the needle, nozzle, paint path, trigger area, and other moving components. Small front-end and internal parts should be handled carefully during removal and reassembly.

• Flush the paint path after painting sessions.
• Clean the needle carefully before reinstalling it.
• Inspect the nozzle before assuming replacement is required.
• Check air-valve components if airflow becomes irregular.
• Inspect O-rings and needle packing if leaks appear.
• Check springs and chucking components if needle movement changes.
• Reassemble internal parts in the correct order and orientation.
• Use appropriate airbrush lubricant sparingly where specified.
