Harder & Steenbeck Giraldez Infinity Airbrush Parts

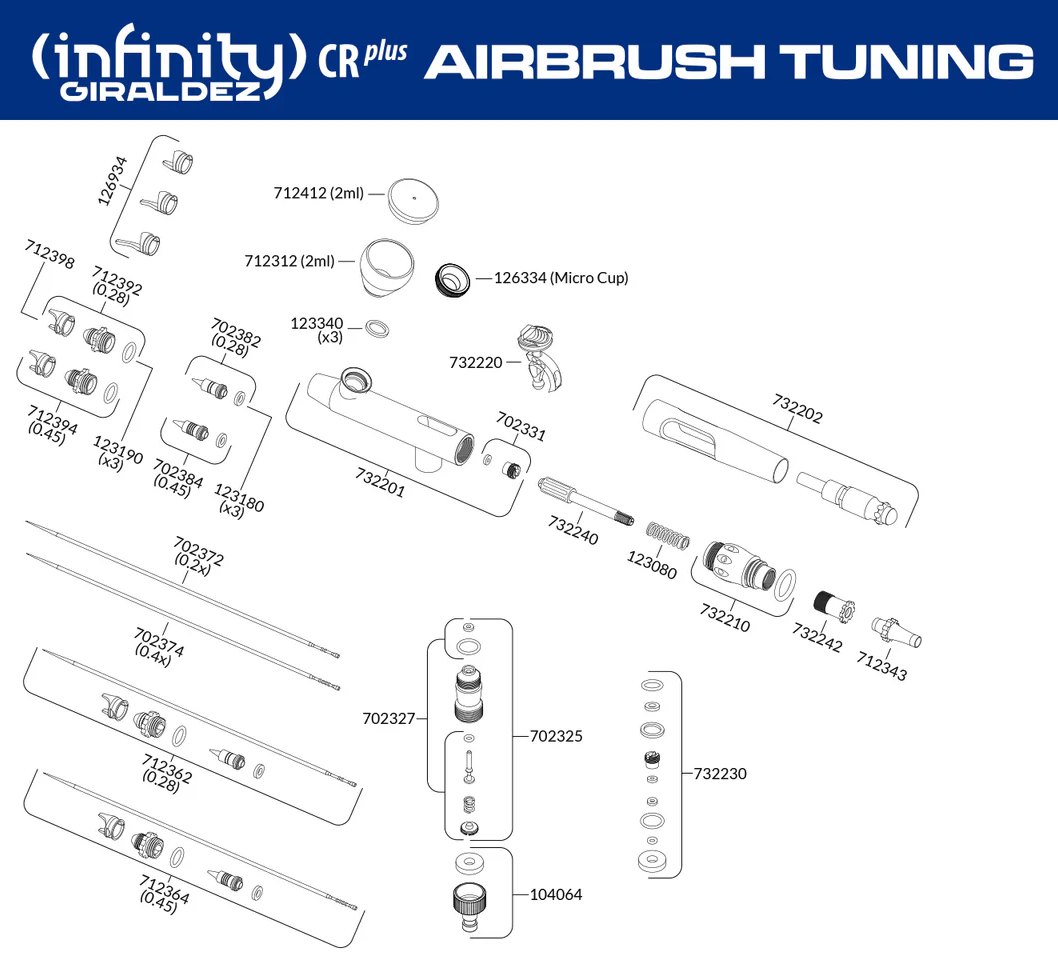

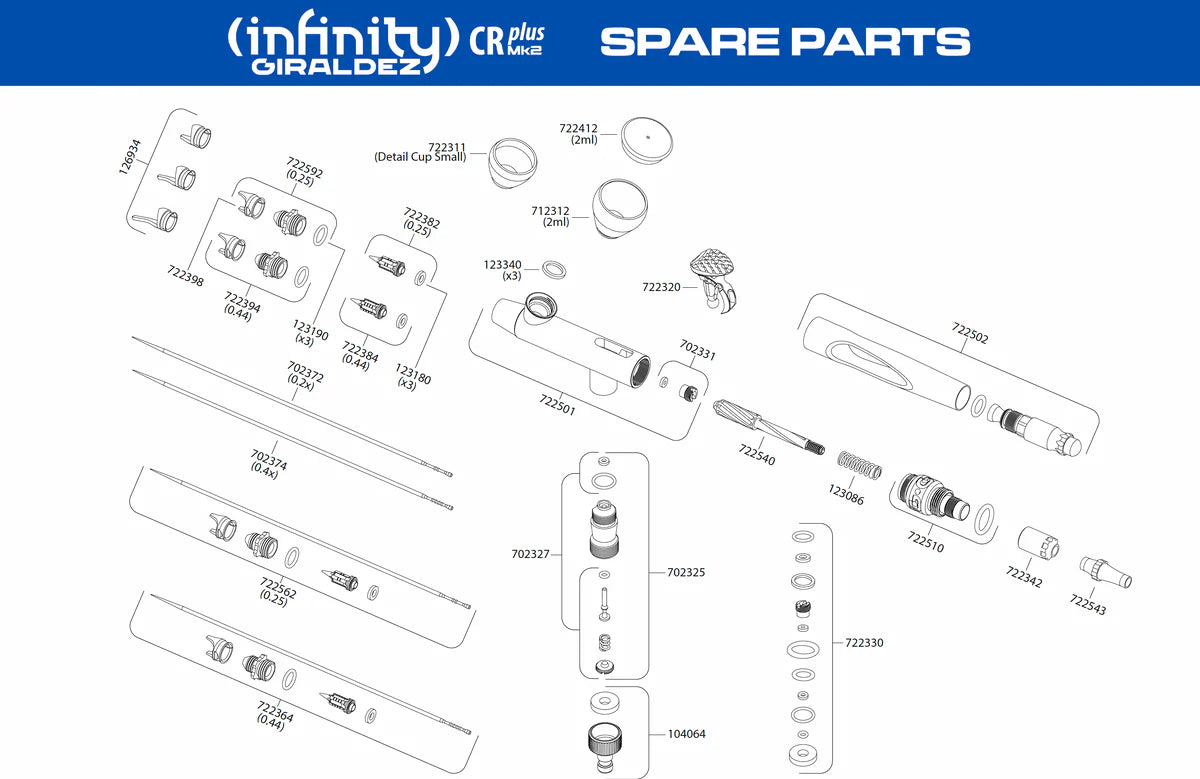

Giraldez Infinity CRplus & Giraldez MkII Parts

Harder & Steenbeck has produced more than one generation of the Giraldez Infinity platform. The original Giraldez Infinity CRplus and the newer Giraldez Infinity CRplus MkII use different component configurations, so replacement parts should be matched to the exact airbrush generation.

Some service components are shared with other Harder & Steenbeck airbrushes, while body, trigger, front-end, and edition-specific parts may only fit a particular Giraldez model.

Giraldez MkII Titanium Headsets & Front-End Parts

The current Giraldez Infinity CRplus MkII uses titanium nozzle technology and dedicated stainless-steel FineLine air caps developed around the current Infinity platform.

• 0.25 mm headset: Designed for detailed miniature painting, sketching, highlights, shadows, gradients, and controlled fine work.
• 0.44 mm headset: Provides increased paint delivery for priming, base coating, varnishing, and broader applications.
• Titanium nozzles: Match the nozzle to the corresponding Giraldez MkII air-cap and needle configuration.
• FineLine air caps: Model-specific stainless-steel air caps are available for current Giraldez MkII headset systems.

Triggers, Sketching Caps & Control Components

The Giraldez Infinity platform includes specialized control components developed around miniature-painting techniques. Selected replacement parts are available for maintaining these systems.

• Trigger assemblies: Replacement components for maintaining responsive double-action control.
• Sketching caps: Giraldez-specific cap options provide different levels of access and protection around the needle tip.
• Needle guides and springs: Support consistent needle movement and trigger return.
• Color Control components: Replacement rear components help maintain the model's paint-limiting adjustment system.

Seals, O-Rings & Air Valve Components

Seals and valve components help maintain proper airflow, paint isolation, and smooth operation. Worn sealing components can contribute to air leaks, paint leakage, or changes in spray performance.

• PTFE needle seals: Help seal the internal paint passage around the needle.
• Nozzle and air-cap seals: Support proper fit between front-end components.
• O-rings: Replacement sealing components are available for compatible cups and internal assemblies.
• Air valve parts: Complete assemblies and service components are available for maintaining airflow control.

Paint Cups, Bodies & Giraldez-Specific Components

Depending on the Giraldez generation, available replacement parts may include micro cups, paint cups, lids, complete bodies, middle pieces, end pieces, needle clamp components, and other edition-specific hardware.

Current Giraldez MkII body and rear components should be matched specifically to the MkII model rather than assumed to fit the earlier Giraldez Infinity CRplus.

Shared Harder & Steenbeck Components

Some items in this collection are also used on other current or earlier Harder & Steenbeck platforms. Shared components can include selected needles, valve parts, seals, cups, connectors, springs, and other service items.

A part appearing in this collection does not automatically mean it fits every Giraldez generation. Review the compatibility information on the individual product page before installation.

Choosing the Correct Giraldez Infinity Replacement Part

Identifying the exact Giraldez Infinity version is especially important when replacing precision components. The original Giraldez model and current Giraldez MkII use different headset and body systems.

• Confirm the generation: Determine whether the airbrush is the original Giraldez Infinity CRplus or the current Giraldez Infinity CRplus MkII.
• Match the headset system: Keep compatible needles, nozzles, and air caps within the correct model-specific configuration.
• Check the product number: Manufacturer part numbers help distinguish similar-looking components.
• Verify shared-part compatibility: Some parts also fit Infinity 2024 or Evolution 2024 models, while others are Giraldez-specific.

Giraldez Infinity Airbrushes & H&S Replacement Parts

For additional Infinity models and configurations, explore the Harder & Steenbeck Infinity Airbrush collection .

For replacement components covering additional Harder & Steenbeck models, visit the Harder & Steenbeck Airbrush Parts collection .
