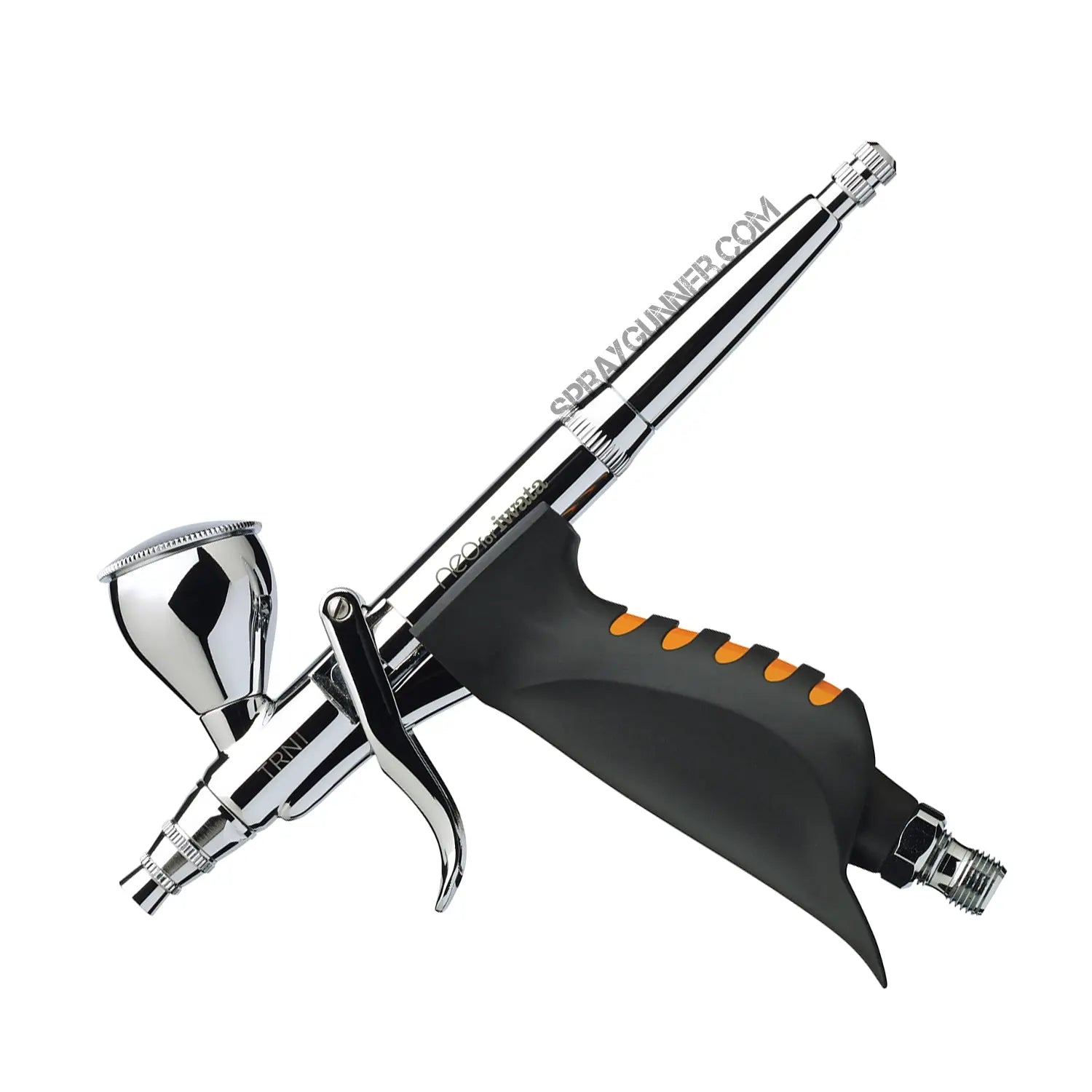

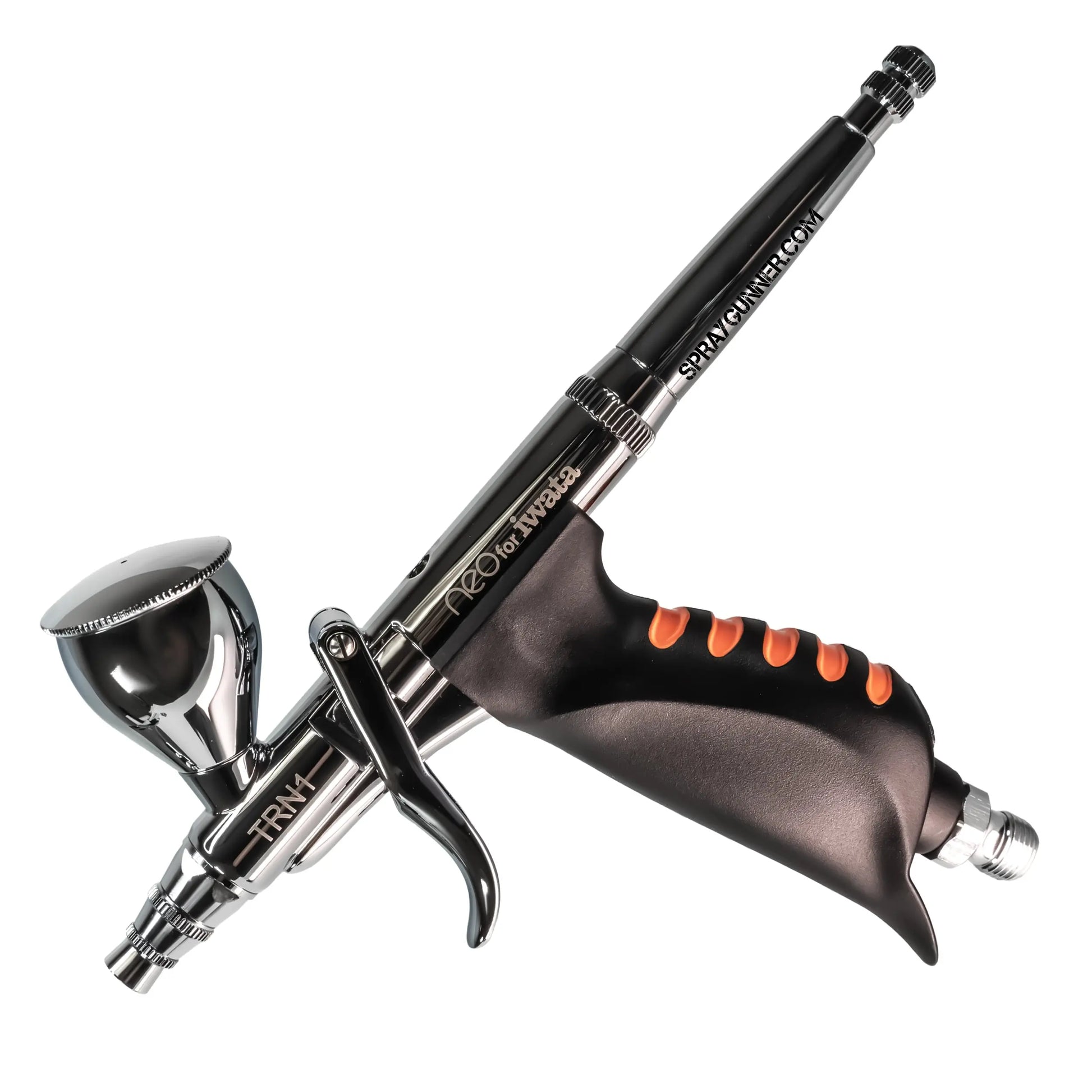

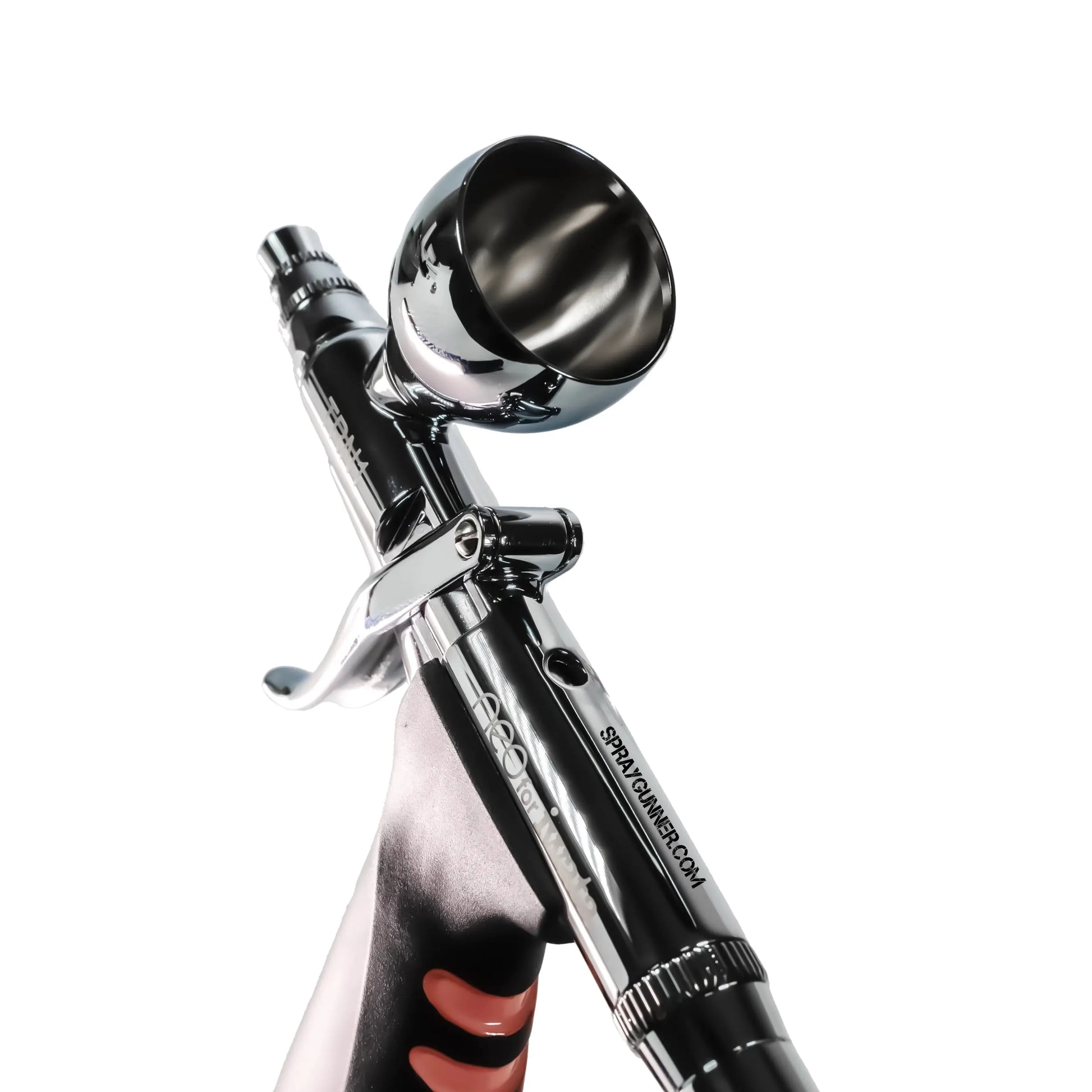

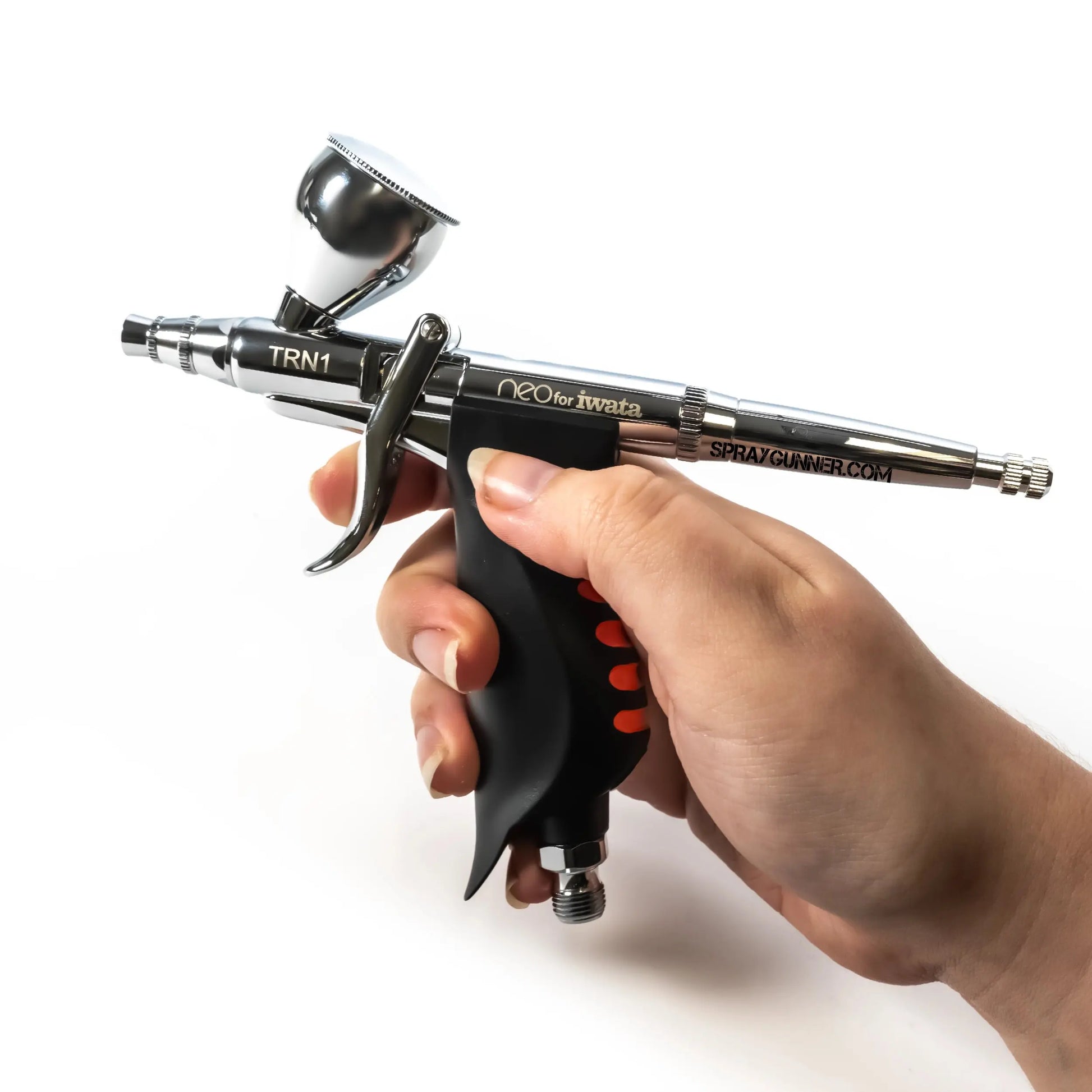

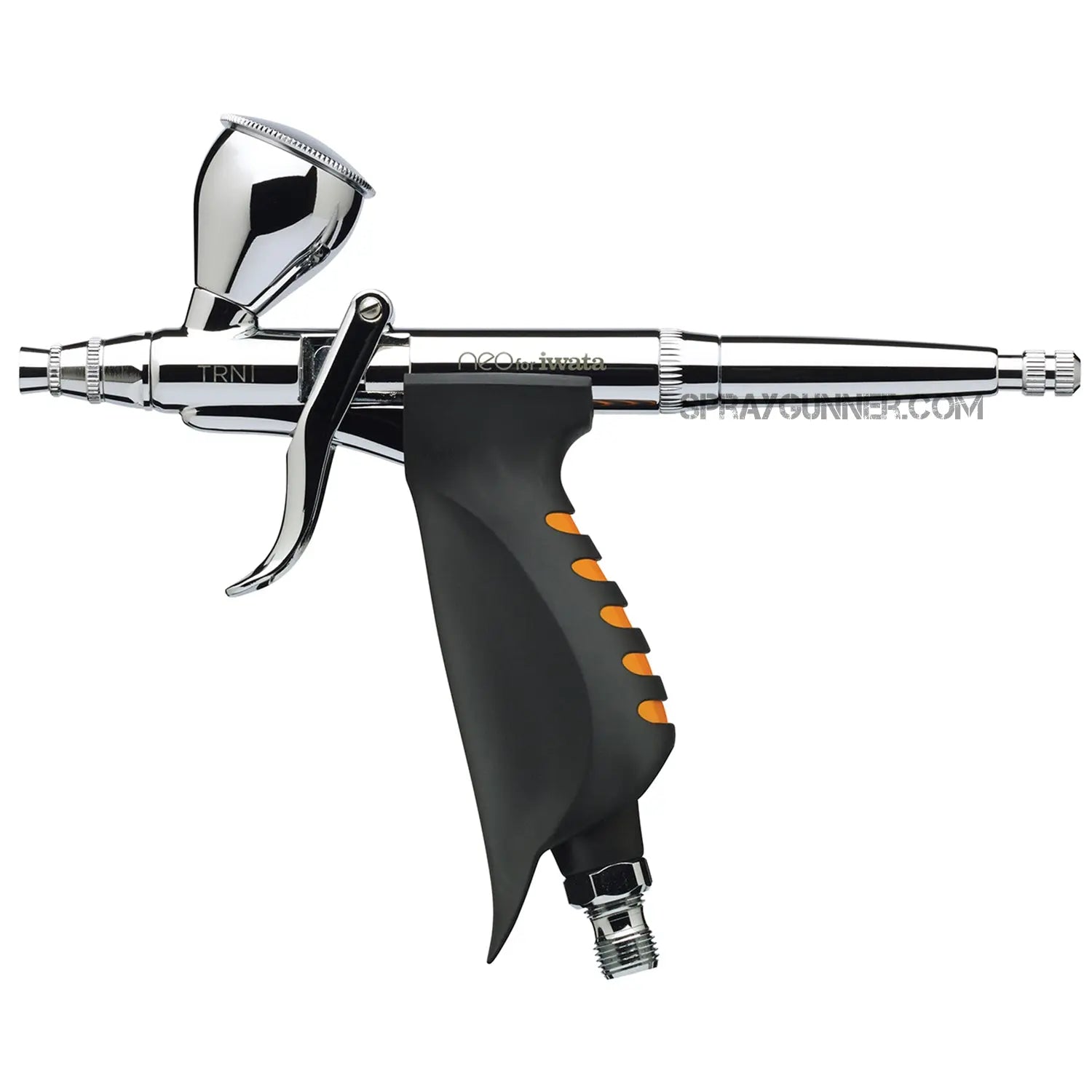

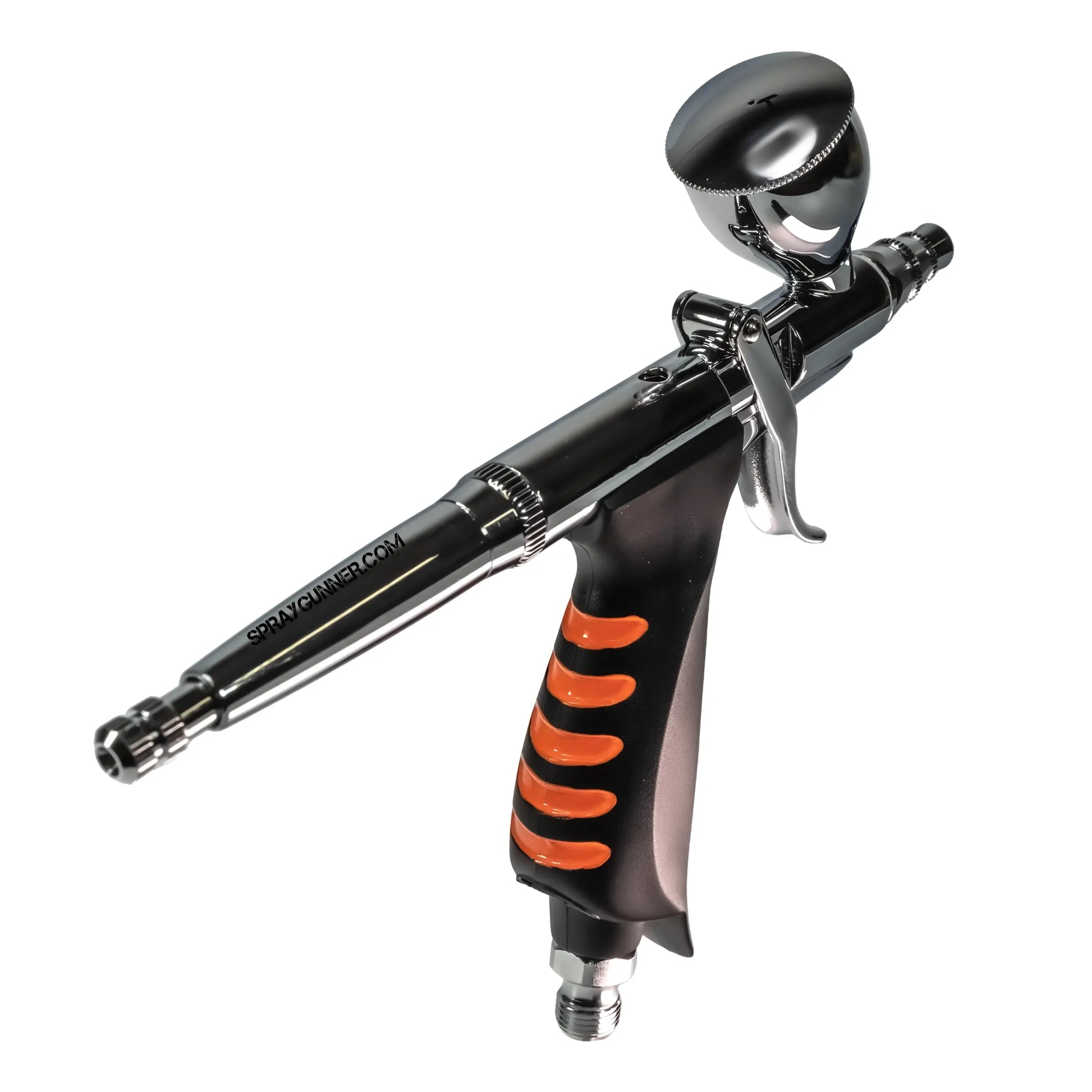

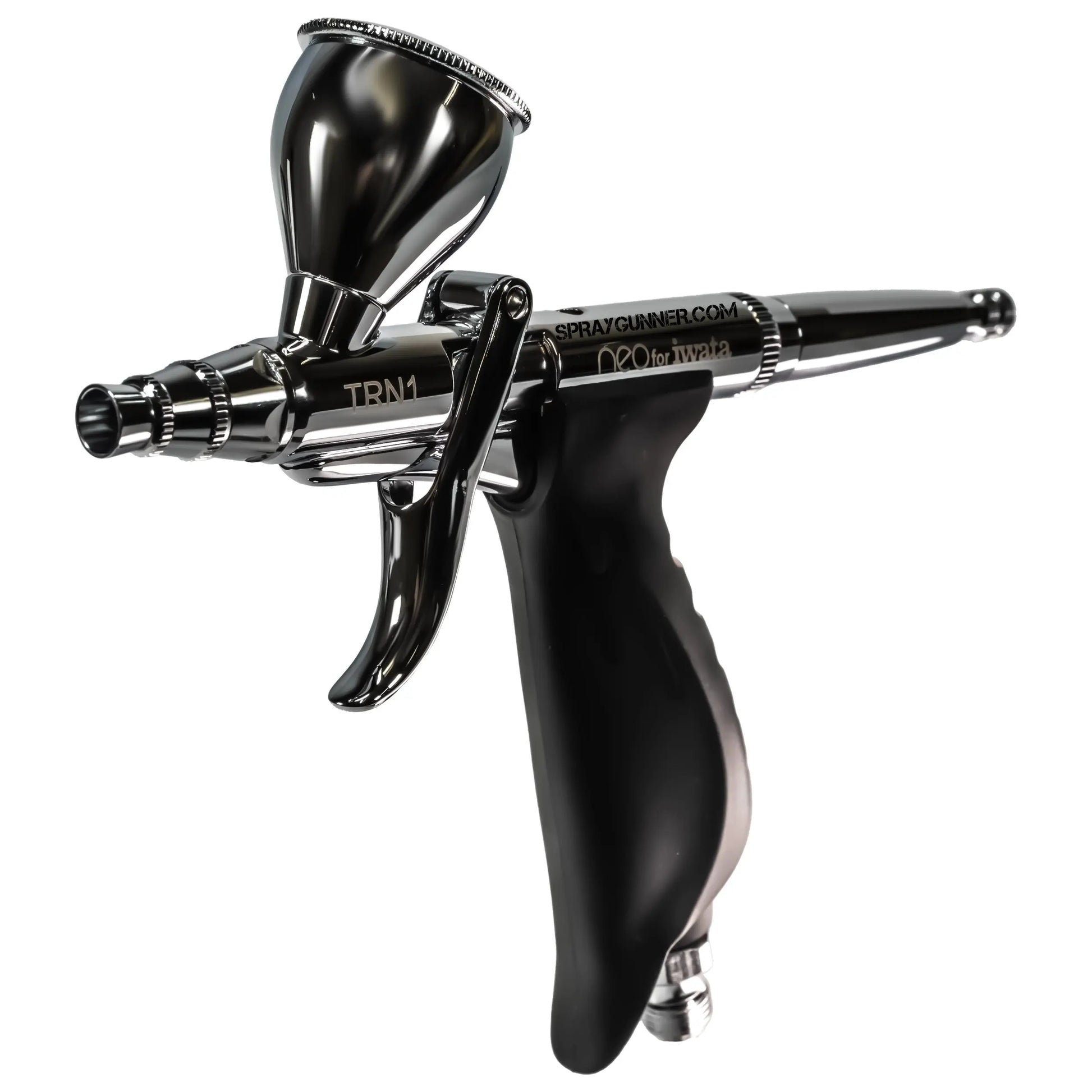

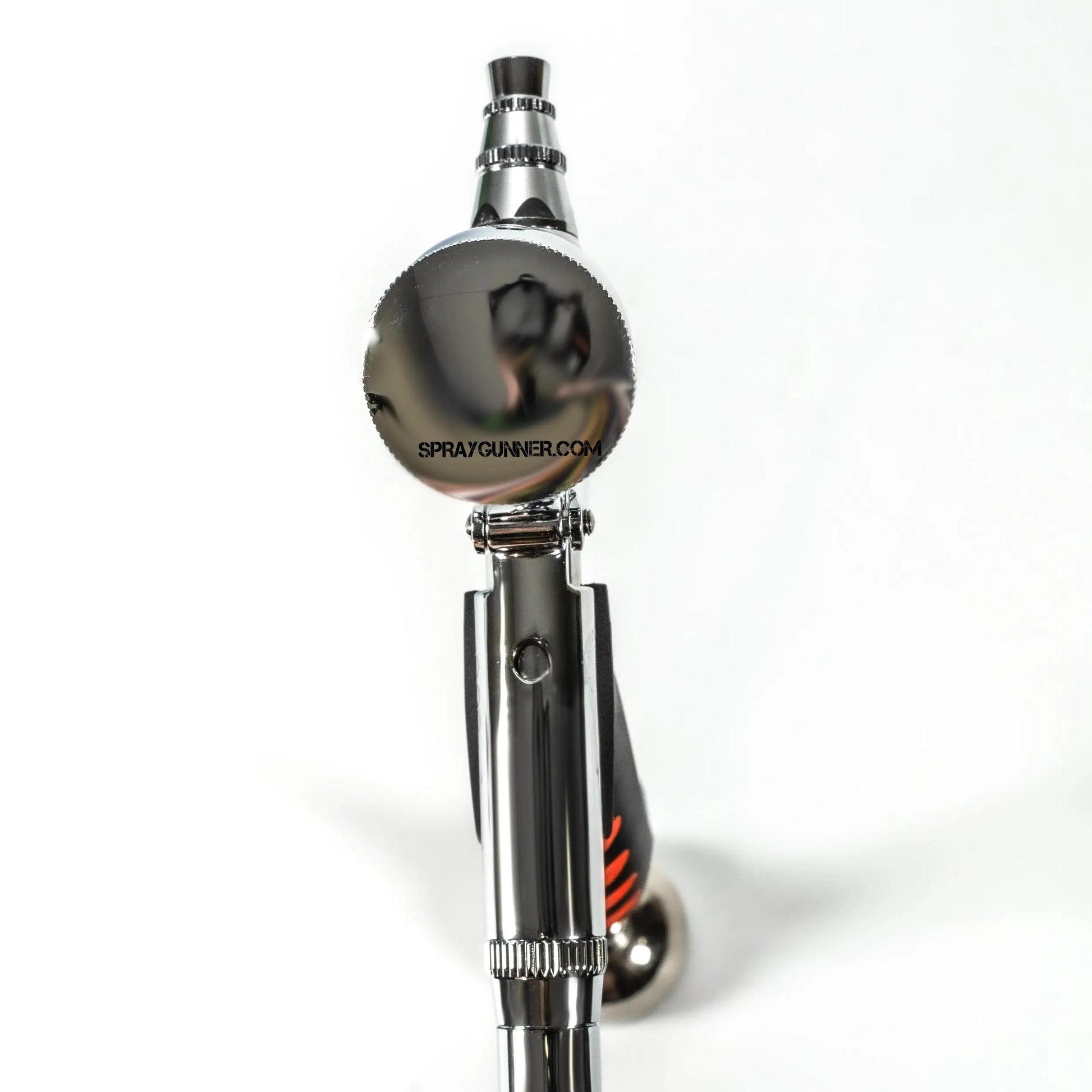

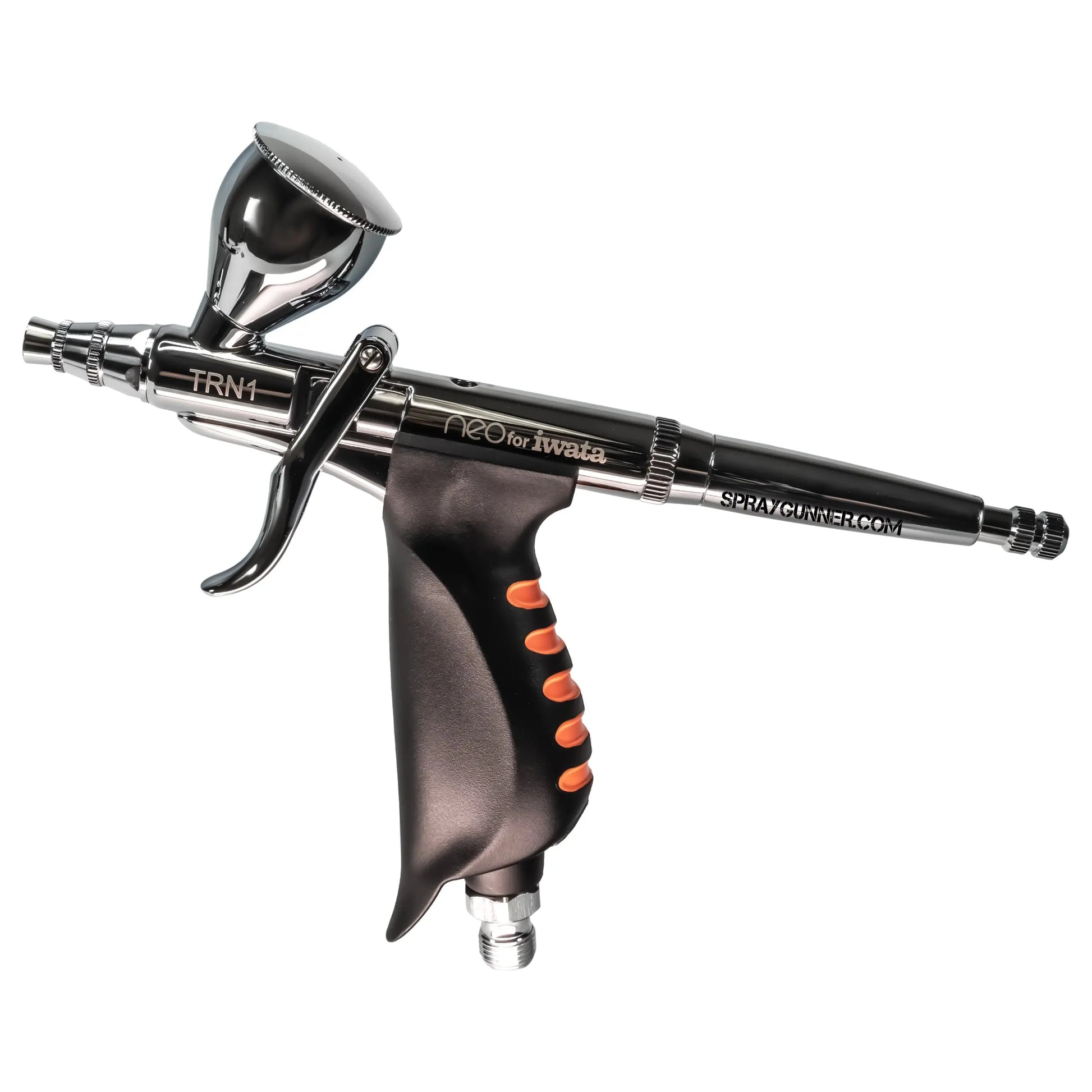

NEO for Iwata TRN1 Gravity Feed Trigger Airbrush
Bundles description

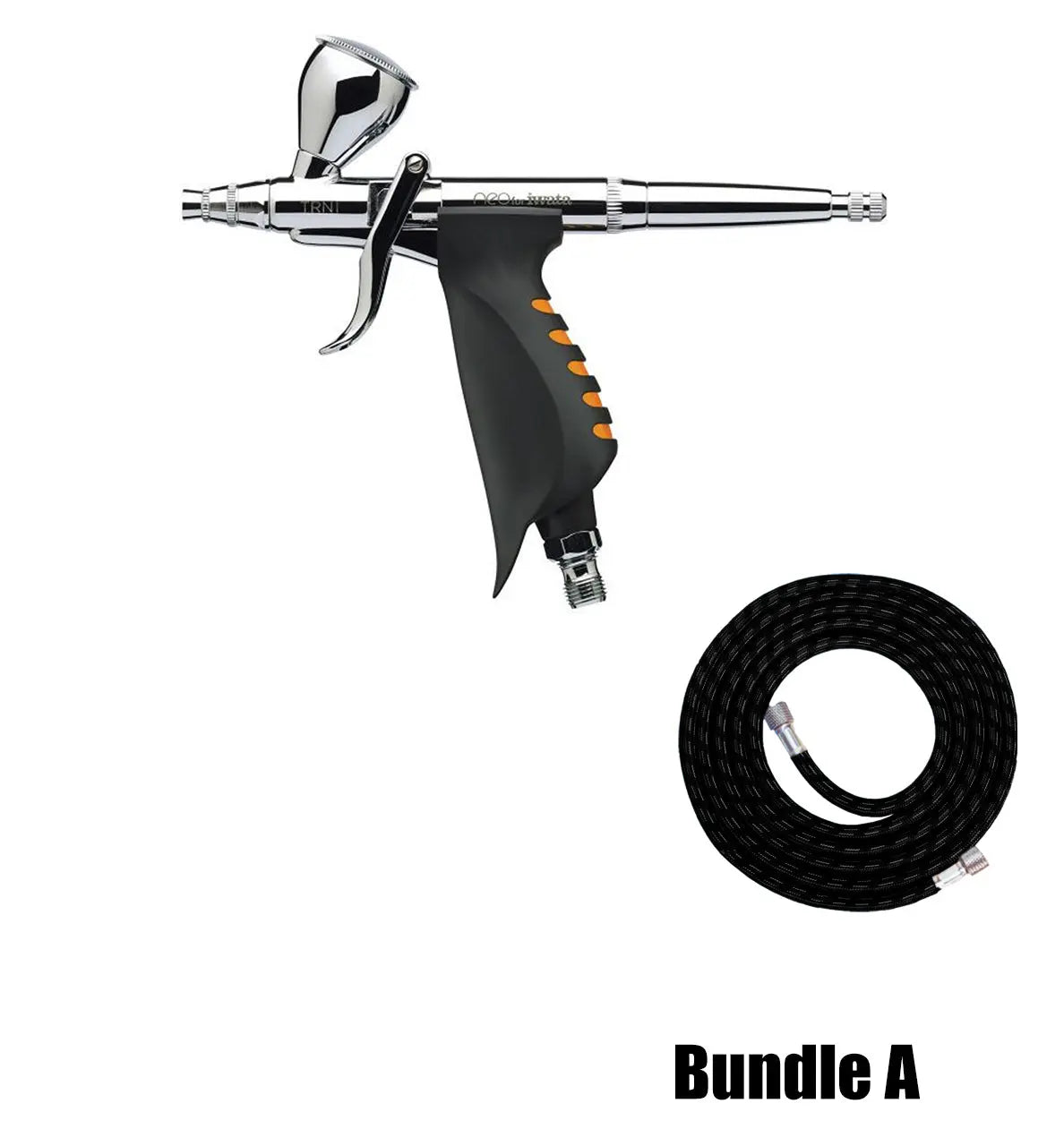

Bundle A includes: 3m hose

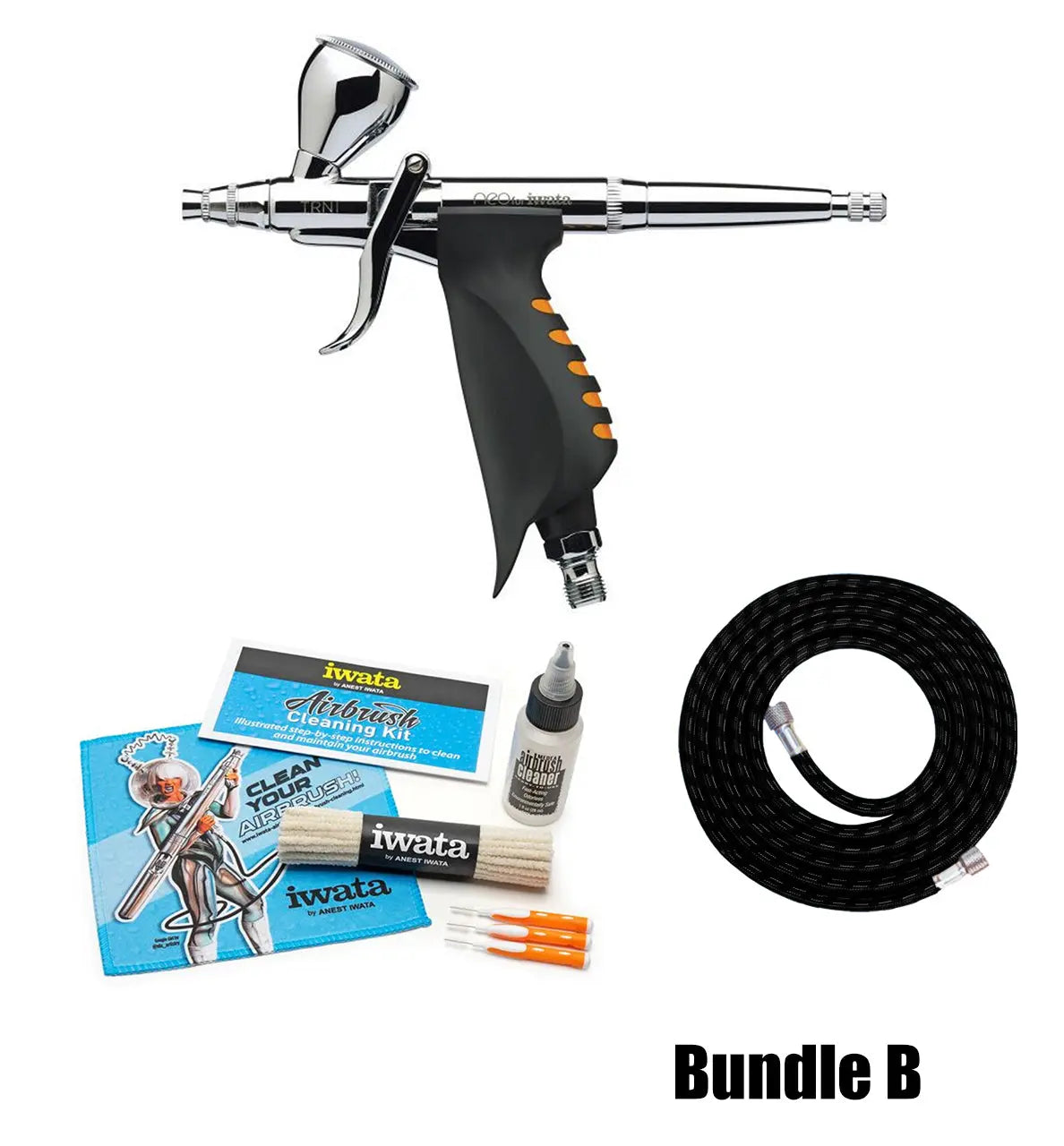

Bundle B includes: 3m hose, Iwata Airbrush Cleaning Kit
Bundle C includes: 3m hose, Iwata Airbrush Cleaning Kit, Nozzle N3, Needle N3, Needle Cap
The NEO for Iwata TRN1 Gravity Feed Trigger Airbrush is the perfect tool for those looking to achieve soft, effortless coverage at low air pressures. With its dual action trigger and interchangeable cups, this airbrush provides versatility and ease of use for a wide range of spray applications.
With its fine atomization capabilities, the NEO for Iwata TRN1 Gravity Feed Trigger Airbrush can be used with even the smallest air compressors. This makes it an affordable option for both general purpose spraying and for those who are new to airbrushing. Whether you're a professional artist or a hobbyist, this airbrush is a great choice for achieving professional-looking results.
The TRN1 Gravity Feed Trigger Airbrush is part of the NEO for Iwata Series, which is known for its effortless coverage and ease of use. Its spray scale ranges from fine to wide, allowing you to achieve the desired level of coverage for your project. The optimal working pressure for this airbrush is between 08-20 psi (0.06 - 0.14 Mpa), providing consistent and reliable performance.
This airbrush features a N3 head system, which includes a needle, needle cap, nozzle, and nozzle cap. The nozzle is screw-on for easy installation and removal. The feed style of the airbrush is gravity, meaning that the paint is drawn into the airbrush through the force of gravity, resulting in smooth and controlled application.
The TRN1 Gravity Feed Trigger Airbrush has two paint capacity options: a 0.24 oz (7.0 ml) cup with lid and a 0.10 oz (3.0 ml) fluid cup. This allows you to choose the appropriate size based on your project requirements. The airbrush operates with a dual action trigger, providing both air and paint control in one fluid motion.
In conclusion, the NEO for Iwata TRN1 Gravity Feed Trigger Airbrush is a versatile and user-friendly tool that delivers exceptional coverage at low air pressures. Whether you're a professional or a beginner, this airbrush is sure to meet your needs and help you achieve outstanding results.
Specs:
Spray Performance Category Effortless Coverage
Series NEO for Iwata
Spray Scale Fine to Wide
Optimal Working Pressure 08 - 20 psi (0.06 - 0.14 Mpa)
Head System N3 - Needle, Needle Cap, Nozzle, Nozzle Cap
Nozzle Type Screw-On
Feed Style Gravity
Paint Capacity 0.24 oz (7.0 ml)
Paint Capacity 0.10 oz (3.0 ml)
Action Dual Handle
Type Standard
Net Weight (lbs) 0.40
Net Weight (kg) 0.18
Assembled Dimensions (in) 0.88 x 6.19 x 4.00
Assembled Dimensions (mm) 22 x 157 x 102
Iwata Airbrush Limited Manufacturer Warranty
Iwata offers a five-year limited manufacturer warranty on Iwata airbrushes. This warranty is valid for the original purchaser from the date of purchase when bought from an authorized Iwata seller (SprayGunner). The warranty covers defects in materials and workmanship, and Anest Iwata-Medea, Inc. will repair or replace the unit, or provide replacement parts, upon a valid claim which must include proof of purchase.
Owner Responsibilities:
- Follow the written instructions provided with the airbrush for proper operation and maintenance.
- Retain the bill of sale, payment record, or canceled check to verify the purchase date and warranty eligibility.
- Keep the original packaging for potential warranty returns.
Exclusions:
- Damage due to improper cleaning, misuse, or lack of maintenance as outlined in the manual.
- Wear and tear on parts like needles, nozzles, seals, packings, and O-rings.
- Usage of non-Iwata standard replacement components.
- Shipping costs for warranty service are the responsibility of the owner. Airbrush can be shipped back to SprayGunner for diagnostics and repairs.
Limitations:
- This warranty excludes problems due to normal wear or misuse and does not cover incidental or consequential damages.
- Routine cleaning and maintenance are required to maintain the warranty.
Please note that failure to perform general maintenance, including cleaning, will void the warranty. This warranty replaces all other expressed or implied warranties.
SprayGunner Return Policy for Iwata Airbrushes
30-Day Hassle-Free Returns:
SprayGunner offers a 30-day hassle-free return policy for all Iwata airbrushes. Customers can return the product for any reason within this period for a full refund or exchange, with no questions asked. Just send us a message to sales@spraygunner.com
Extended Returns for Store Credit:
For returns initiated within 60 days after delivery, customers can choose to receive their refund as a store credit, offering additional flexibility.
Return Shipping:
- For customers in the lower 48 states: SprayGunner provides free return shipping, making the process easy and cost-effective.
- For customers outside the lower 48 states, including overseas: Customers are responsible for obtaining a return shipping label. These can be purchased through local carriers or directly from SprayGunner.
This policy ensures that purchasing an Iwata airbrush from SprayGunner is a risk-free and customer-friendly experience.
SprayGunner Achieves Platinum Crown Dealer Status with Iwata - A New Milestone in Excellence
At SprayGunner, we are thrilled to announce that we have been awarded the prestigious Platinum Crown Dealer status by Iwata. This esteemed recognition is a testament to our commitment to providing our customers with the highest quality airbrushes, compressors, accessories, and parts from Iwata. As a Platinum Crown Dealer, we proudly carry the entire range of authentic Iwata products and offer fast shipping across the nation.
What is the Iwata Crown Dealer Program?
Understanding the Crown Dealer Tiers: Iwata’s Crown Dealer program is designed to recognize and reward dealers who demonstrate a commitment to excellence in offering Iwata products. Dealers are awarded crowns based on the percentage of total Iwata items they carry. The tiers are:
- Bronze Crown Dealer: Represents dealers who carry a select range of Iwata products.
- Silver Crown Dealer: Recognizes dealers with a broader selection of Iwata items.
- Gold Crown Dealer: Awarded to dealers who carry a substantial range of Iwata products.
- Platinum Crown Dealer: The highest tier, reserved for dealers who carry the complete range of authentic Iwata products and excel in service and support.
This is what SprayGunner can offer our awesome customers:
Comprehensive Product Range: As a Platinum Crown Dealer, SprayGunner offers the full spectrum of Iwata products. From top-of-the-line airbrushes and compressors to essential accessories and parts, our inventory includes everything you need for your airbrushing projects. Whether you’re a professional artist or a hobbyist, you can trust that we have the right tools to meet your needs.
Authentic Iwata Products: Our Platinum status assures customers that all Iwata products available at SprayGunner are 100% authentic. We are committed to providing only genuine products that meet Iwata’s high standards of quality and performance.
Expert Knowledge and Support: Our team at SprayGunner is well-versed in Iwata products and airbrushing techniques. As a Platinum Crown Dealer, we are equipped to offer expert advice and support to help you select the right products and achieve the best results in your projects.
Fast Nationwide Shipping: One of the benefits of our Platinum status is our ability to offer fast shipping across the nation. We understand that timely delivery is crucial, and we are dedicated to ensuring that your Iwata products arrive quickly and safely, no matter where you are in the country.
Explore Our Range of Iwata Products
At SprayGunner, we are proud to offer the full range of Iwata airbrushes, compressors, accessories, and parts. Our Platinum Crown Dealer status is a mark of our dedication to quality and customer service, ensuring that you receive the best products and support in the industry.
Discover the full range of Iwata products at SprayGunner and enjoy the confidence that comes with purchasing from a Platinum Crown Dealer. Shop now at SprayGunner for the best selection, competitive prices, and expert advice.
We are excited to continue serving the airbrushing community with the highest standards of quality, expertise, and support. Thank you for choosing SprayGunner, and we look forward to helping you achieve your creative goals with the finest Iwata products.
Best Price Guaranteed
At SprayGunner, we are committed to offering you the best price in the USA. We understand that price isn't just about the product's tag but the total cost you're paying at checkout. That's why our Best Price Guarantee ensures that when you shop with us, you're getting the best overall value.
Here's how it works:
- Total Price Match: If you find the same product offered by a competitor at a lower total price (including item cost, shipping, and any additional fees), we'll match or beat that price. For example, if we sell a product for $100 with free shipping, and a competitor sells it for $95 but charges $10 for shipping, our offer is still the best because the total cost is lower. However, if you happened to find this item for $95 with free shipping, we would be interested to make our deal even sweeter for you!
- How to Claim: Simply provide proof of the competitor's lower total price (including shipping costs and any applicable fees) at the time of purchase, best if you provide both: link and screenshot sent to sales@spraygunner.com and we will take it from there.
- Eligibility: The competing offer must be for the identical product and in stock, available to ship immediately in the USA. The offer must be from a retailer authorized by the manufacturer to sell the product. Please note, that we will consider reputable sellers but if you found something on eBay coming from outside the country - that's a high-risk purchase and not the offer for us to compete with.
- Exclusions: Price matches are not available for items sold by auction sites, refurbished or used products, or promotional offers such as flash sales or limited-time discounts.
With SprayGunner, you can shop confidently knowing you're getting the best price — guaranteed.
TRN1 | TRN2
Iwata Revolution Series and NEO For Iwata Series airbrushes deliver soft, effortless coverage at low air pressures. Fine atomization is achieved with the smallest of air compressors, making these airbrushes a simple choice for medium spray applications and for anyone wanting to start airbrushing for the first time.
ASSEMBLY
1. Screw the air hose onto the airbrush (Iwata air hose sold separately).
2. Screw the air hose onto the compressor.
GENERAL OPERATION
Fine-Line Spray
1. Depress the main lever to start air flow.
2. Position the airbrush close to the surface, between 1/16 and 1/2 inch is common.
3. Pull the main lever back slightly to start the flow of paint.
Line thickness can be controlled by adjusting the distance between the airbrush and the surface and also by varying the paint flow by manipulating the main lever’s position.
Wide-Line and Background Spraying
1. Depress the main lever.
2. Position the airbrush further away from the surface, from 1 to 6 inches is common.
3. Pull the main lever back much farther releasing more paint to cover the bigger area.
Increase the distance between the airbrush and painted surface to control the line’s width. Increasing the air pressure will also affect the spray width.
Air Pressure
For the NEO, working pressures generally vary between 10 and 60 psi, depending on what type of work is being done and what textures are desired. A good working pressure may average around 15-25 psi. The viscosity of the paint and your desired spray characteristics will also affect your ideal pressure. As a general rule, larger amounts of paint or thicker paints, will be sprayed with higher pressures.
WARNING: Do not exceed 100psi.
Paint Preparation
For non-airbrush-ready paints, proper preparation, including filtering the paint through a nylon mesh, is recommended for best performance. Paint should be thinned with its proper solvent. It is best to prepare paint relatively thin and make repeated passes across the work to achieve the desired shade. This will also improve the quality of your work and decrease the cleaning time of your airbrush.
Safety Tips
• Always spray in a well-ventilated area.
• Do not spray solvent-based (flammable) paints around open flames.
• Use the appropriate respirator to safely filter out the paint vapors particular to the kind of paint you are using.
• Wear eye protection to prevent paint contact with eyes.
• Never use air pressure that exceeds the airbrush’s limit (100 psi).
MAINTENANCE
Cleaning the Airbrush (TRN2)
1. Remove the paint bottle.
2. Attach a bottle containing the appropriate cleaning solution.
(Note: Medea Airbrush Cleaner works great for water-based media.)
3. Spray until the solution sprays clear.
4. Remove the bottle of cleaning solution.
5. Spray air until the airbrush sprays dry.
6. Attach a bottle containing the next color.
7. Repeat cleaning procedure when finished.
Cleaning the Airbrush (TRN1)
1. Dump out the color cup’s excess paint.
2. Rinse the cup with the appropriate cleaning solution.
(Note: Medea Airbrush Cleaner works great for water-based media.)
3. Use a paper towel to wipe out any left-over paint.
4. Fill the bottom of the cup with cleaner.
5. Spray cleaner until the spray is clear.
6. Add the next color to the color cup.
7. Repeat cleaning procedure when finished.
Cleaning the Needle (TRN2, TRN1)
Before removing the needle, clean the airbrush as recommended.
1. Unscrew the handle from the airbrush body.
2. Loosen the needle chucking nut.
3. Gently pull the needle straight out.
4. Fold a soft cloth damp with cleaner over the needle.
5. Rotate the needle to gently wipe the residual paint off.
6. Carefully insert the needle into the airbrush until it seats fully against the nozzle.
CAUTION: The most probable time to damage the needle is when the needle passes through the main lever. If the needle stops abruptly, retract and examine the trigger mechanism for proper assembly and re-insert the needle.
7. Tighten the needle chucking nut finger tight.
• Pull the main lever back and forth to visually confirm the needle’s ability to move.
8. Screw the handle back onto the airbrush body.
Before Each Session
Spray water or the appropriate cleaning solution through the airbrush to make sure the airbrush is working properly.
After Each Session
Or any time the airbrush becomes clogged:
1. Increase the air pressure.
2. Spray cleaning solution for a short time.
3. Clean the needle if necessary
Cleaning the airbrush this way helps clean the paint passage, the nozzle and the needle thoroughly.
Periodically
To ensure smooth main lever action lubricate the needle and the main lever mechanism when necessary.
1. Unscrew the handle.
2. Loosen the needle chucking nut.
3. Remove the needle.
4. Coat the needle lightly at the front where the taper starts with a highquality lubricant, like Medea Super Lube.
5. Wipe the needle with a soft, clean cloth, leaving a light coat of lube behind.
6. Re-insert the needle gently into the airbrush.
7. Tighten the needle chucking nut.
8. Screw the handle onto the airbrush body.
Use a tiny drop of lube on the main lever’s piston. DO NOT over-lube the needle or the main lever mechanism, since it is possible to transfer excess lube into the nozzle causing severe paint flow problems. DO NOT use light machine oil or WD-40 for lubrication. These will cause the needle to stick as it moves through the needle packing o-ring.
CAUTION: If it becomes absolutely necessary to dismantle the airbrush remember that in most situations tools are not needed.
NEVER soak your entire airbrush in any liquid.
NEVER store your airbrush with spray medium or cleaning agents in the fluid cup.
IMPORTANT NOZZLE INFORMATION
Never remove the nozzle unless it is damaged or clogged.
Always keep your airbrush clean. Never leave paint in your airbrush as dried paint can clog a nozzle. Although engineered from durable, high-quality materials, the nozzle is small and delicate. Accidental damage caused by cross-threading, over-tightening, dropping the airbrush, forcing a needle or tools into the nozzle and normal wear are not covered under the warranty. Replacement parts and repair services are available through your local affiliate.

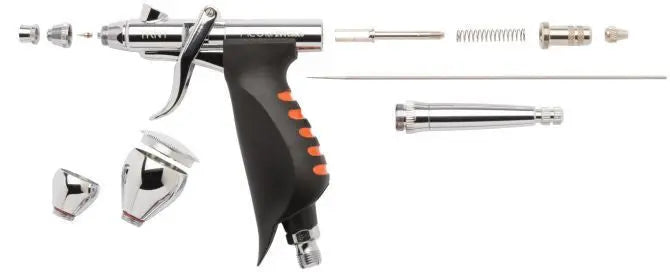

NEO FOR IWATA — TRN1, TRN2 |
|
|
| # | ITEM DESCRIPTION | PRICE CODE | ITEM # | BCN | CN | ALSO FITS | |
| 1 |
Needle Cap
|
A | N1102 | ◼ | ◼ | ||
|
2
|
Nozzle Cap
|
N3 | A | N1403 | OPT | ◼ | |
| N5 | A | N1404 | ◼ | OPT | |||
| 3 |
Nozzle
|
N3 | C | N0803 | OPT | ◼ | |
| N5 | C | N0804 | ◼ | OPT | |||
| 4 | Nozzle Cap O-ring | A | N1504 | ◼ | x | ||
| 5A | Head Base | A | N1353 | x | ◼ | ||
| 5B | Head Base | A | N1354 | ◼ | x | ||
| 6 | Head Base Packing (PTFE) | A | N1505 | ◼ | ◼ | ||
| 7 | Main Body Ring Screw | A | N1312 | ◼ | ◼ | ||
| 8 | Needle Packing (PTFE) | A | N1507 | ◼ | ◼ | ||
| 9 | Needle Packing Screw | A | N1252 | ◼ | ◼ | ||
| 10 | Slide Cam | A | N1301 | ◼ | ◼ | ||
| 11 | Spring Side Cam | A | N1302 | ◼ | ◼ | ||
| 12 | Main Body Ring | A | N1311 | ◼ | ◼ | ||
| 13 | Needle Chucking Guide | A | N1152 | ◼ | ◼ | ||
| 14 | Needle Spring | A | N1352 | ◼ | ◼ | ||
| 15 | Spring Guide | A | N1702 | ◼ | ◼ | ||
| 16 | Needle Chucking Nut | A | N1202 | ◼ | ◼ | ||
| 17 |
Needle
|
N3 | A | N0753 | OPT | ◼ | |
| N5 | A | N0754 | ◼ | OPT | |||
| 18 | Handle Cap Set | D | N0902 | ◼ | ◼ | ||
| 19 | Trigger With Trigger Screw | A | N1002 | ◼ | ◼ | ||
| 20 | Air Piston Set | A | N0101 | ◼ | ◼ | ||
| 21 | Air Valve Set | C | N0202 | ◼ | ◼ | ||
| 22 | Grip Mount/Extension | D | N1601 | ◼ | ◼ | ||
| 23 | Grip | B | N1602 | ◼ | ◼ | ||
| 24 | Bottle Adapter | C | N0401 | ◼ | x | ||
| 25 | Side Cup Lid | 0.50oz /15ml | A | N0952 | ◼ | x | |
| 26 | Side Cup | 0.50oz/15ml | A | N0706 | ◼ | x | |
| 27 | Side Cup Lid | 0.24oz/7ml | A | N0953 | ◼ | x | |
| 28 | Side Cup | 0.24oz/7ml | D | N0705 | ◼ | x | |
| 29A | Fluid Gravity Cup w/O-ring | 0.05oz/1.50ml | C | N0701 | x | ◼ | NEO CN |
| 29B | O-ring For Fluid Gravity Cup | 0.05oz/1.50ml | A | N0712 | x | ◼ | NEO CN |
| 30A | Fluid Gravity Cup w/O-ring | 0.24oz/7ml | D | N0702 | x | ◼ | NEO CN |
| 30B | O-ring For Fluid Gravity Cup | 0.24oz/7ml | A | N0713 | x | ◼ | NEO CN |
| 31 | Fluid Gravity Cup Lid | 0.24oz/7ml | A | N0954 | x | ◼ | NEO CN |
| 32 | Spanner | A | N1651 | x | ◼ | NEO CN/ NEO BCN | |
| 33 | Spanner | A | N1652 | ◼ | x | ||
REPLACEMENT PARTS AND ACCESSORIES
Nozzle
In time, the nozzle may wear or be damaged and may need to be replaced.
1. Unscrew the handle.
2. Loosen the needle chucking nut.
3. Gently pull the needle part way back. It doesn’t need to be fully pulled out.
4. Unscrew the needle cap and the nozzle cap.
5. Unscrew the nozzle counter-clockwise with the provided wrench.
6. Screw the new nozzle into the airbrush body with your fingers.
7. Slightly tighten the nozzle with the provided wrench.
• DO NOT OVER TIGHTEN!
8. Screw the needle cap and nozzle cap onto the airbrush body.
9. Push the needle all the way forward until it seats with the new nozzle.
10. Tighten the needle chucking nut.
11. Screw the handle onto the airbrush body.
TIP: Keep a spare nozzle on hand for unforeseen accidents.
Needle
Needles are subject to easy physical damage because of the long tapered, extremely fine tip. If the needle point becomes severely bent, it must be straightened before pulling it back through the nozzle. If not, the bent needle might damage the nozzle as it’s pulled through.
TIP: Keep a spare needle on hand for unforeseen accidents.
